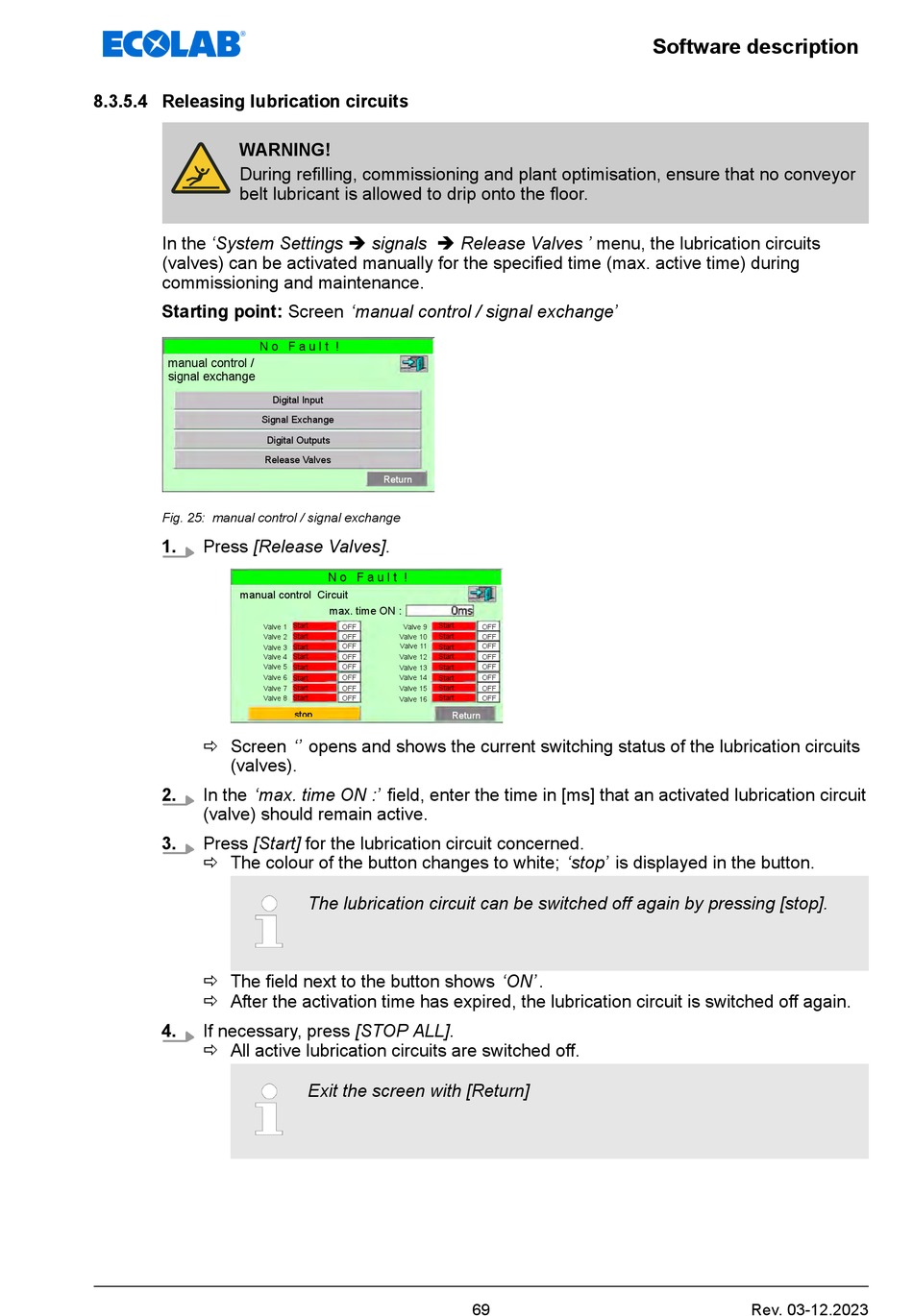

8.3.5.4 Releasing lubrication circuits
WARNING!
During refilling, commissioning and plant optimisation, ensure that no conveyor
belt lubricant is allowed to drip onto the floor.
In the 'System Settings è signals è Release Valves ' menu, the lubrication circuits
(valves) can be activated manually for the specified time (max. active time) during
commissioning and maintenance.
Starting point: Screen 'manual control / signal exchange'
N o F a u l t !
manual control /
signal exchange
Signal Exchange
Digital Outputs
Release Valves
Fig. 25: manual control / signal exchange
1.
Press [Release Valves].
manual control Circuit
Valve 1
Valve 2
Valve 3
Valve 4
Valve 5
Valve 6
Valve 7
Valve 8
ð Screen '' opens and shows the current switching status of the lubrication circuits
(valves).
2.
In the 'max. time ON :' field, enter the time in [ms] that an activated lubrication circuit
(valve) should remain active.
3.
Press [Start] for the lubrication circuit concerned.
ð The colour of the button changes to white; 'stop' is displayed in the button.
ð The field next to the button shows 'ON' .
ð After the activation time has expired, the lubrication circuit is switched off again.
4.
If necessary, press [STOP ALL].
ð All active lubrication circuits are switched off.
Digital Input
Return
N o F a u l t !
max. time ON :
Start
Start
OFF
Valve 9
Start
OFF
Valve 10
Start
OFF
Valve 11
Start
Start
Start
OFF
Valve 12
Start
OFF
Start
Start
Valve 13
Start
OFF
Valve 14
Start
Start
Start
OFF
Valve 15
Start
Start
OFF
Valve 16
stop
The lubrication circuit can be switched off again by pressing [stop].
Exit the screen with [Return]
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
Return
