7.1 Operating and display elements

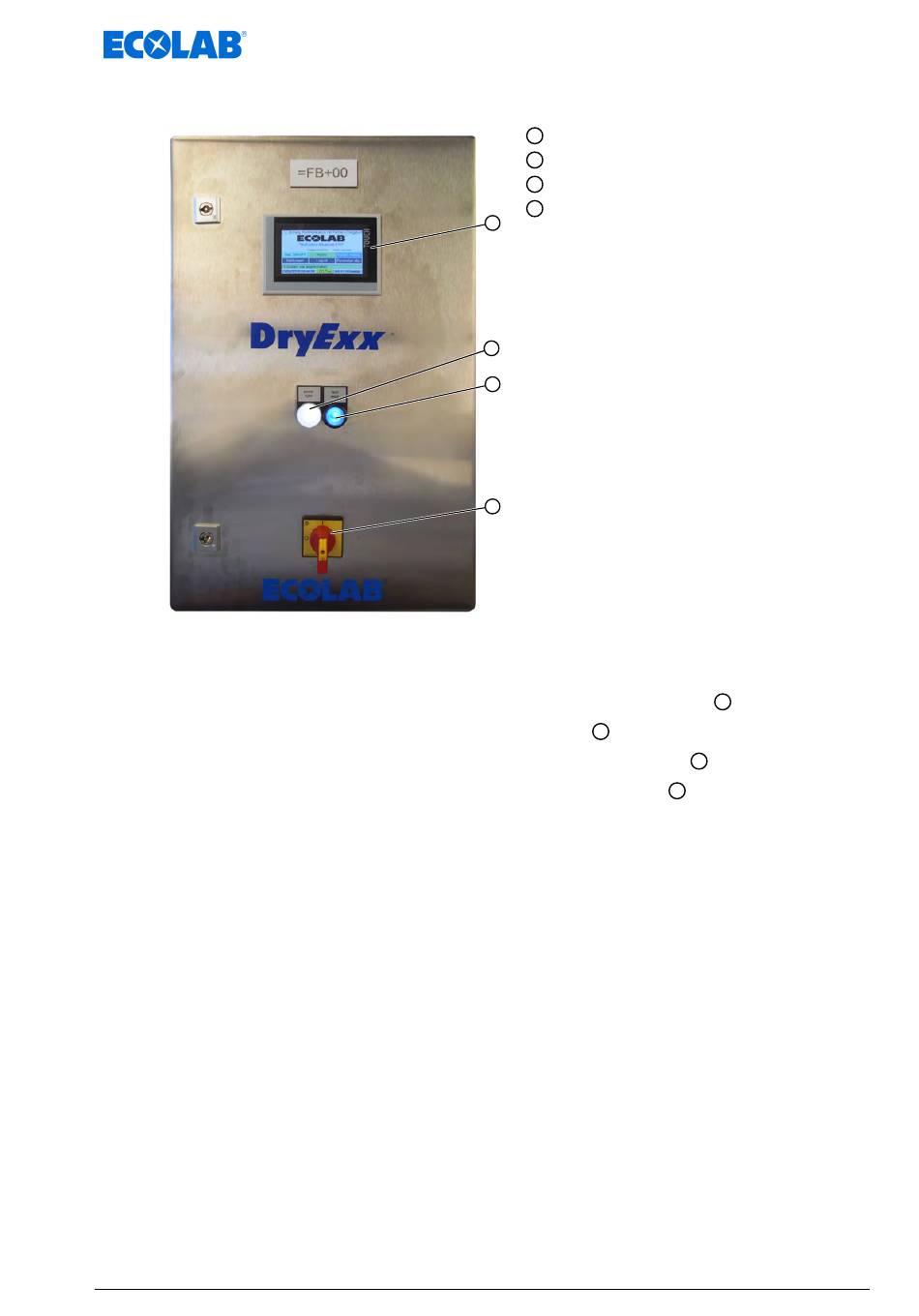

Fig. 8: DryExxEco
The control unit has the following operating and display elements:
S7 panel PLC with touch screen - Operation, setup and configuration
Signal lamp, white
Illuminated button, blue
Main switch
Optional display devices (without illustration)
The following display and signalling devices can optionally be installed:
GH2 multi-colour light
Signal horn with integrated flashing red
light
®
Advanced-ETH - operating elements
- Operating indicator
- Display and acknowledge faults
- Switch the system off and on
Commissioning / operation
S7 panel PLC with touch screen
1
Signal lamp, white: power "ON"
2
Illuminated button, blue: "fault reset"
3
Main switch
4
1
2
3
4
2
- Optical signalling device using LED
technology
- Acoustic and optical signalling device
39
1
3
4
