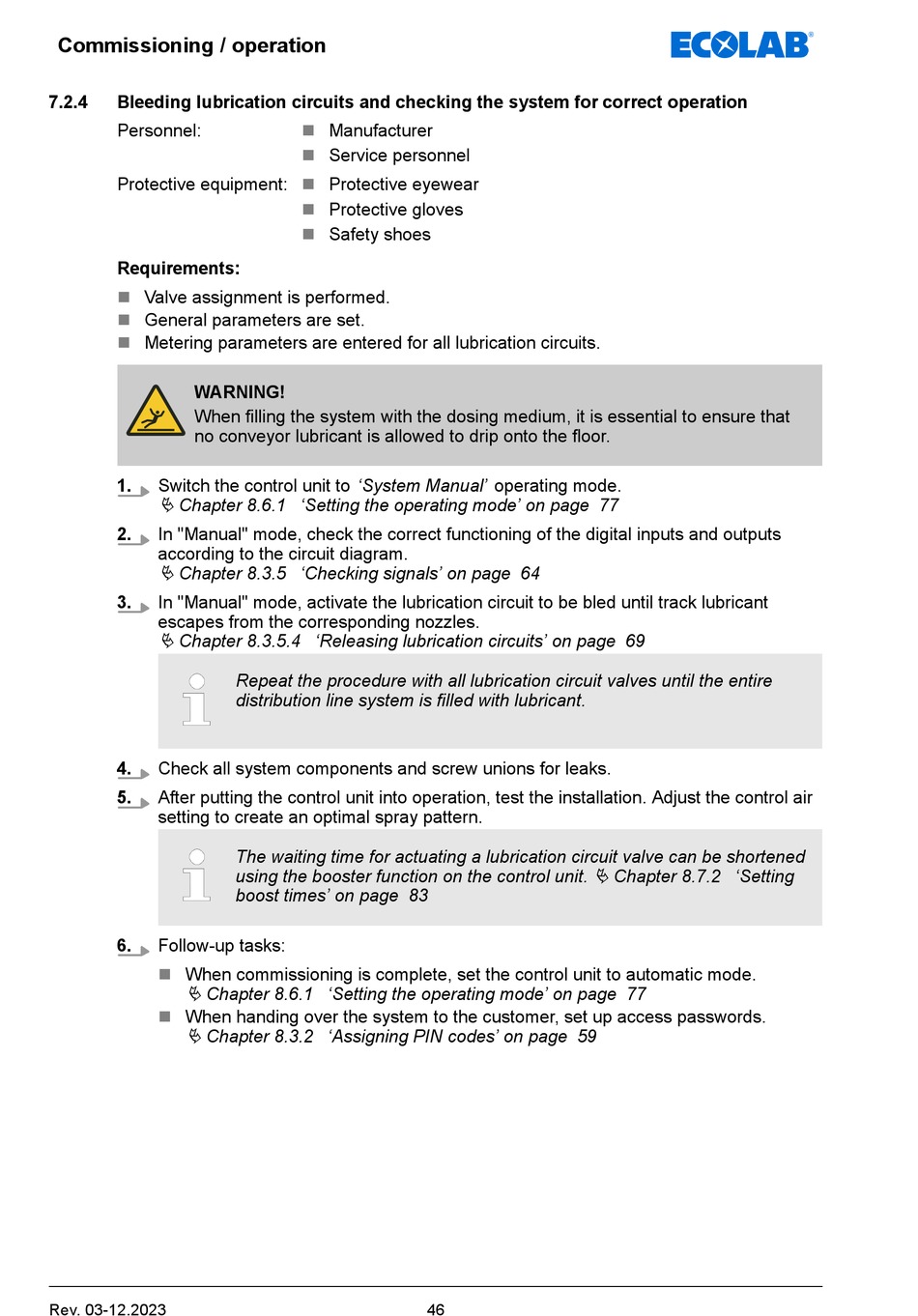

Commissioning / operation
7.2.4
Bleeding lubrication circuits and checking the system for correct operation
Personnel:
Protective equipment:
Requirements:
Valve assignment is performed.
n
n
General parameters are set.
n
Metering parameters are entered for all lubrication circuits.
WARNING!
When filling the system with the dosing medium, it is essential to ensure that
no conveyor lubricant is allowed to drip onto the floor.
1.
Switch the control unit to 'System Manual' operating mode.
Ä Chapter 8.6.1 'Setting the operating mode' on page 77
2.
In "Manual" mode, check the correct functioning of the digital inputs and outputs
according to the circuit diagram.
Ä Chapter 8.3.5 'Checking signals' on page 64
3.
In "Manual" mode, activate the lubrication circuit to be bled until track lubricant
escapes from the corresponding nozzles.
Ä Chapter 8.3.5.4 'Releasing lubrication circuits' on page 69
4.
Check all system components and screw unions for leaks.
5.
After putting the control unit into operation, test the installation. Adjust the control air
setting to create an optimal spray pattern.
6.
Follow-up tasks:
When commissioning is complete, set the control unit to automatic mode.
n
Ä Chapter 8.6.1 'Setting the operating mode' on page 77
n
When handing over the system to the customer, set up access passwords.
Ä Chapter 8.3.2 'Assigning PIN codes' on page 59
Rev. 03-12.2023
n
Manufacturer
n
Service personnel
Protective eyewear
n
n
Protective gloves
n
Safety shoes
Repeat the procedure with all lubrication circuit valves until the entire
distribution line system is filled with lubricant.
The waiting time for actuating a lubrication circuit valve can be shortened
using the booster function on the control unit.
boost times' on page 83
Ä Chapter 8.7.2 'Setting
