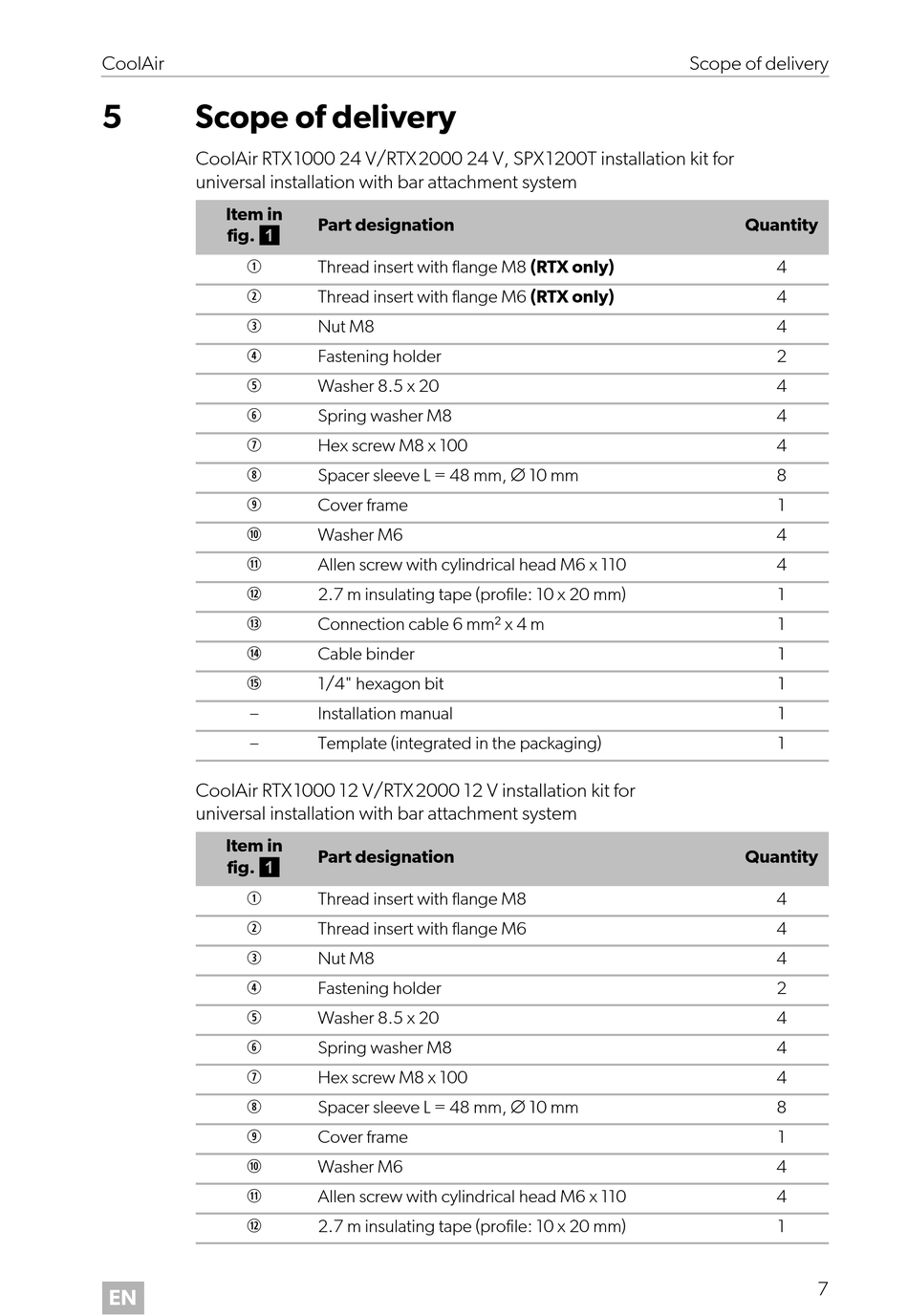

Scope of delivery

CoolAir RTX1000 24 V/RTX2000 24 V, SPX1200T installation kit for
universal installation with bar attachment system
Item in
fig. 1















–
–
CoolAir RTX1000 12 V/RTX2000 12 V installation kit for
universal installation with bar attachment system
Item in
fig. 1












EN
Part designation
Thread insert with flange M8 (RTX only)
Thread insert with flange M6 (RTX only)
Nut M8
Fastening holder
Washer 8.5 x 20
Spring washer M8
Hex screw M8 x 100
Spacer sleeve L = 48 mm, ∅ 10 mm
Cover frame
Washer M6
Allen screw with cylindrical head M6 x 110
2.7 m insulating tape (profile: 10 x 20 mm)
Connection cable 6 mm² x 4 m
Cable binder
1/4" hexagon bit
Installation manual
Template (integrated in the packaging)
Part designation
Thread insert with flange M8
Thread insert with flange M6
Nut M8
Fastening holder
Washer 8.5 x 20
Spring washer M8
Hex screw M8 x 100
Spacer sleeve L = 48 mm, ∅ 10 mm
Cover frame
Washer M6
Allen screw with cylindrical head M6 x 110
2.7 m insulating tape (profile: 10 x 20 mm)
Scope of delivery
Quantity
4
4
4
2
4
4
4
8
1
4
4
1
1
1
1
1
1
Quantity
4
4
4
2
4
4
4
8
1
4
4
1
7
