Start-up

Device concept

The robot hosepack Robacta Twin Compact complete is distinguished by small
dimensions for the best possible accessibility to weld seams, low weight and high
temperature stability. Torch neck and hosepack form an inseparable unit.
Through a closed gas conduit the gas is led to the torch neck free from loss. In
addition, the robot hosepack Robacta Twin Compact complete is equipped with a
separate compressed-air piping for purging the torch neck.
The torch neck is distinguished by small dimensions and so the best possible ac-
cessibility. By the water-cooled gas nozzle the system is suitable for the
MIG/MAG high-performance welding.

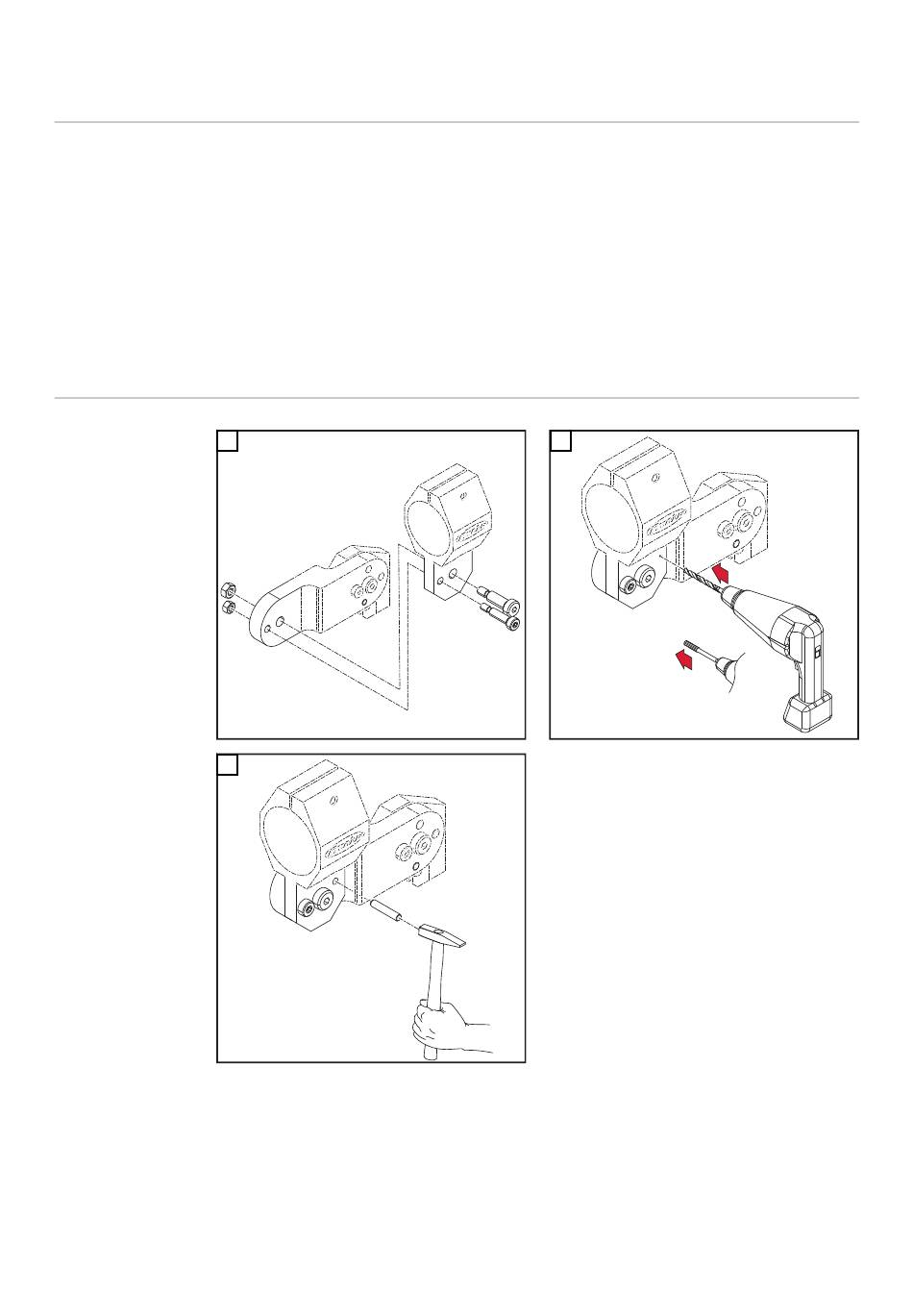

Fitting the
1
mounting bra-
cket (standard)
3
IMPORTANT! Drill a Ø5.8 mm hole for the mounting bracket and use a reamer to
enlarge the hole so it can accommodate the dowel pin (Ø6G7).
IMPORTANT! The mounting bracket must be fitted using an M8 shoulder screw
and an M6 screw. After screwing the mounting bracket in place, another dowel
pin (Ø6 mm) must be driven in to secure it.
26
2
1
Reibahle /
Reamer /
Alésoir /
2
Alesatore /
Escariador /
Alargador
Ø6G7
Bohrer /
Drill /
Foret /
Punta del
trapano /
Broca /
Broca
Ø5,8
