System Preparations

Connection of the titration tower

2.3.1
Slide the tower from the right side onto the y-axis mounting plate of the sample changer (Fig. 7) and fasten it with
the four black screws (Fig. 8).

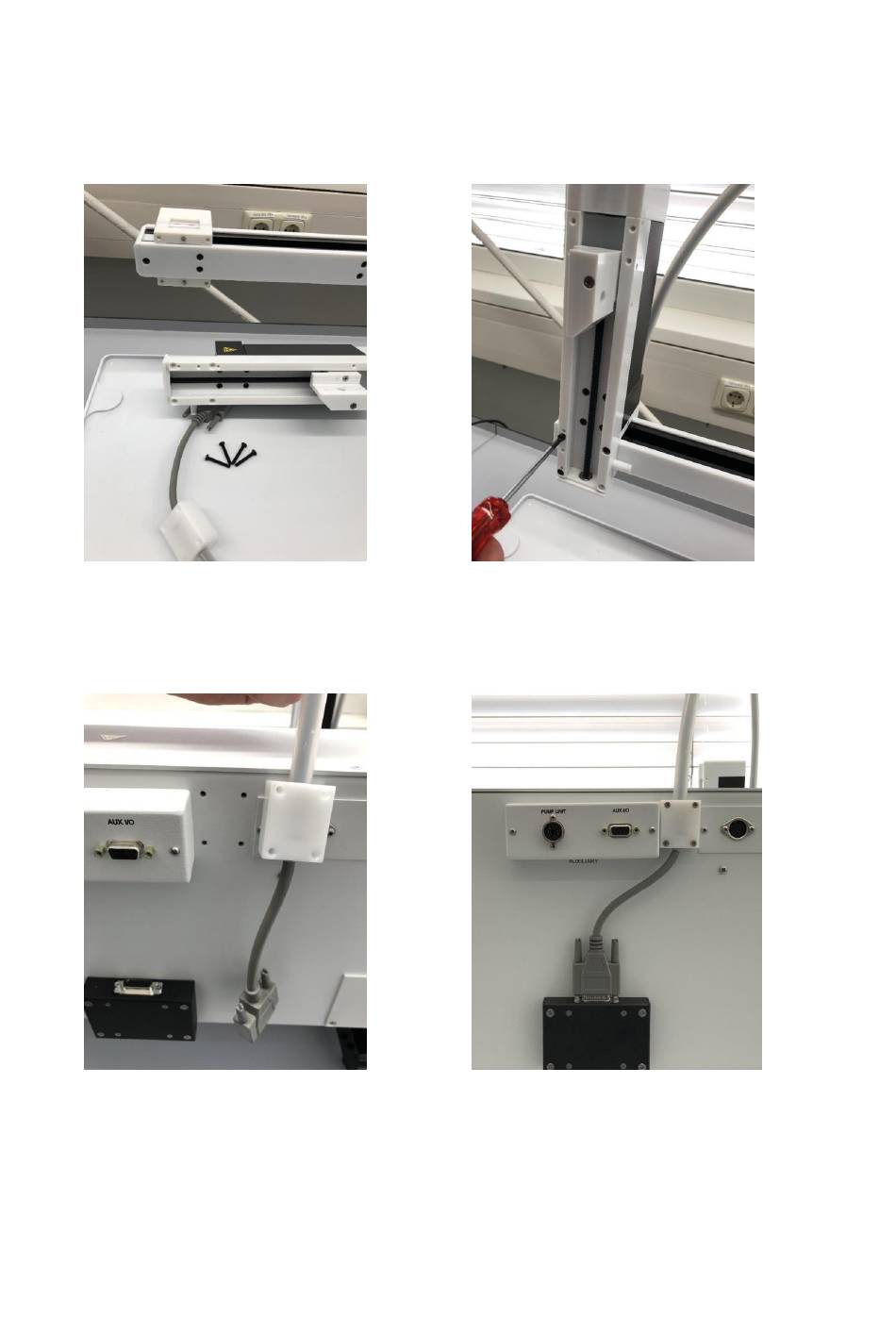

Fig. 7 and Fig. 8 Mounting the titration tower
Mount the cable guide of the titration tower on the rear side at the designated fixing points using the four screws
provided (Fig. 9). Connect the control cable to the COM port for controlling the tower (Fig. 10).
Fig. 9 and Fig. 10 Mounting the cable guide
