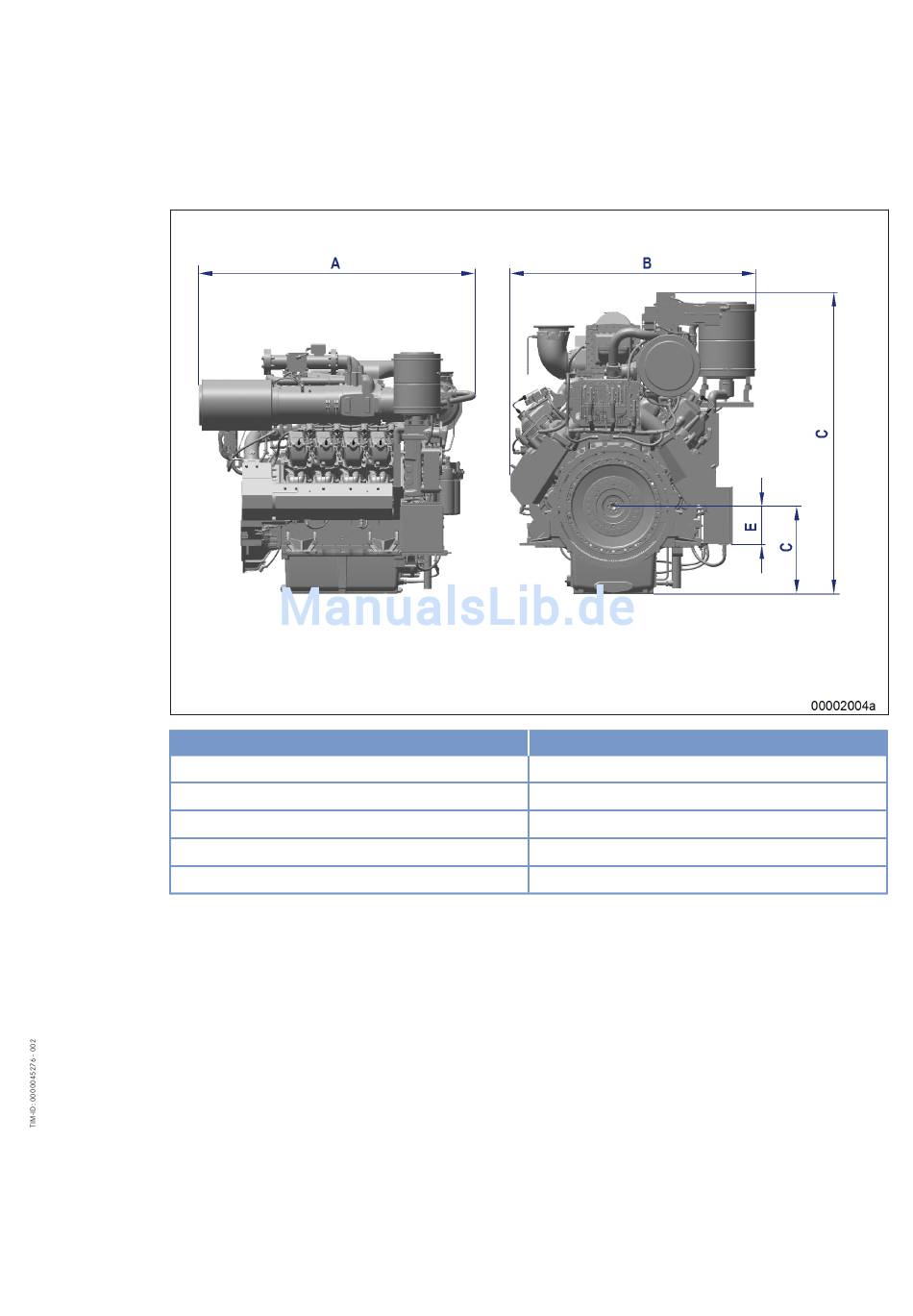

3.3 Motor – Hauptabmessungen
Motor – Hauptabmessungen
Position
Länge (A)
Breite (B)
Höhe (C)
Kurbelwellenmitte bis Ölwanne (D)
Kurbelwellenmitte bis Motorlager (E)
Tabelle 3: Motor - Hauptabmessungen
Abmaße
ca. 2484 mm
ca. 1743 mm
ca. 2154 mm
ca. 625 mm
ca. 280.5 mm
MS150114/02D 2016-07 | Produktübersicht | 25
