Description
Asymmetry (when switching on)
Indicators shown on the right light up, interface indicator
flashes red
Cause:
Internal fault
Remedy:
-
Switch device off and back on again
-
Fault keeps recurring => have device ser-
viced
Asymmetry (during operation)
Indicators shown on the right light up, interface indicator
flashes red
Cause:
Internal fault
Remedy:
-
Switch device off and back on again
-
Fault keeps recurring => have device ser-
viced
ILZ (current zero crossing)
Indicators shown on the right light up, interface indicator
flashes red
Cause:
Signal for current zero crossing not present
Remedy:
-
Switch device off and back on again
-
Fault keeps recurring => have device ser-
viced
Current limit
Indicators shown on the right light up, interface indicator
flashes red
Cause:
Internal fault
Remedy:
-
Switch device off and back on again
-
Fault keeps recurring => have device ser-
viced
Earth current (earth current watchdog option only)
Indicators shown on the right light up, interface indicator
flashes red
Cause:
Current flowing via device earth
Remedy:
-
Check ground earth connection to the
workpiece
-
Switch device off and back on again
-
Fault keeps recurring => have device ser-
viced
Mains undervoltage or overvoltage
Indicators shown on the right light up, interface indicator
flashes red
Cause:
The mains voltage is outside the tolerance ran-
ge
Remedy:
-
Check the mains voltage
-
Switch device off and back on again
-
Fault keeps recurring => have device ser-
viced

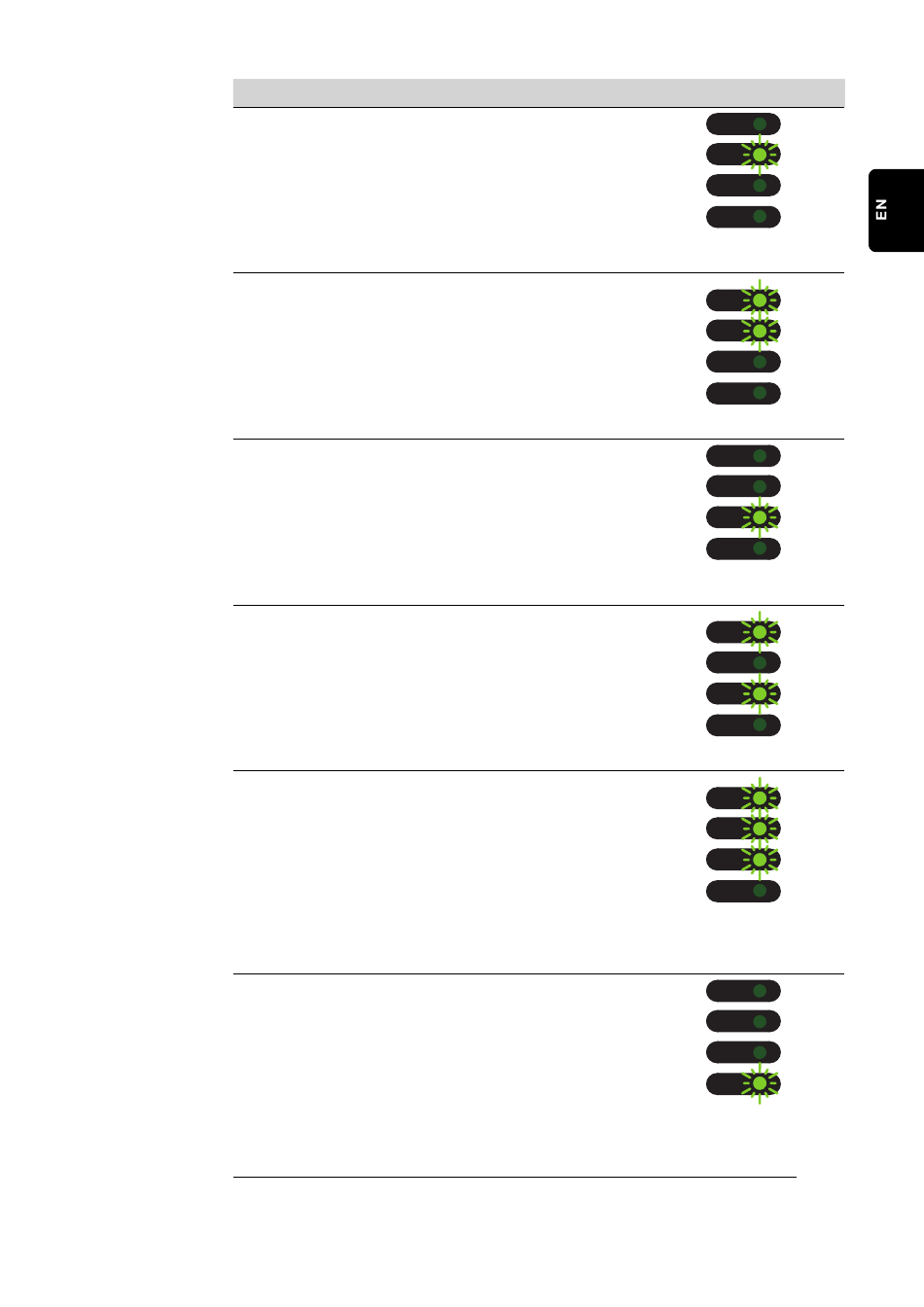

Indicator
No.
A
B
C
2
D
A
B
3
C
D
A
B
C
4
D
A
B
5
C
D
A
B
C
7
D
A
B
C
8
D
