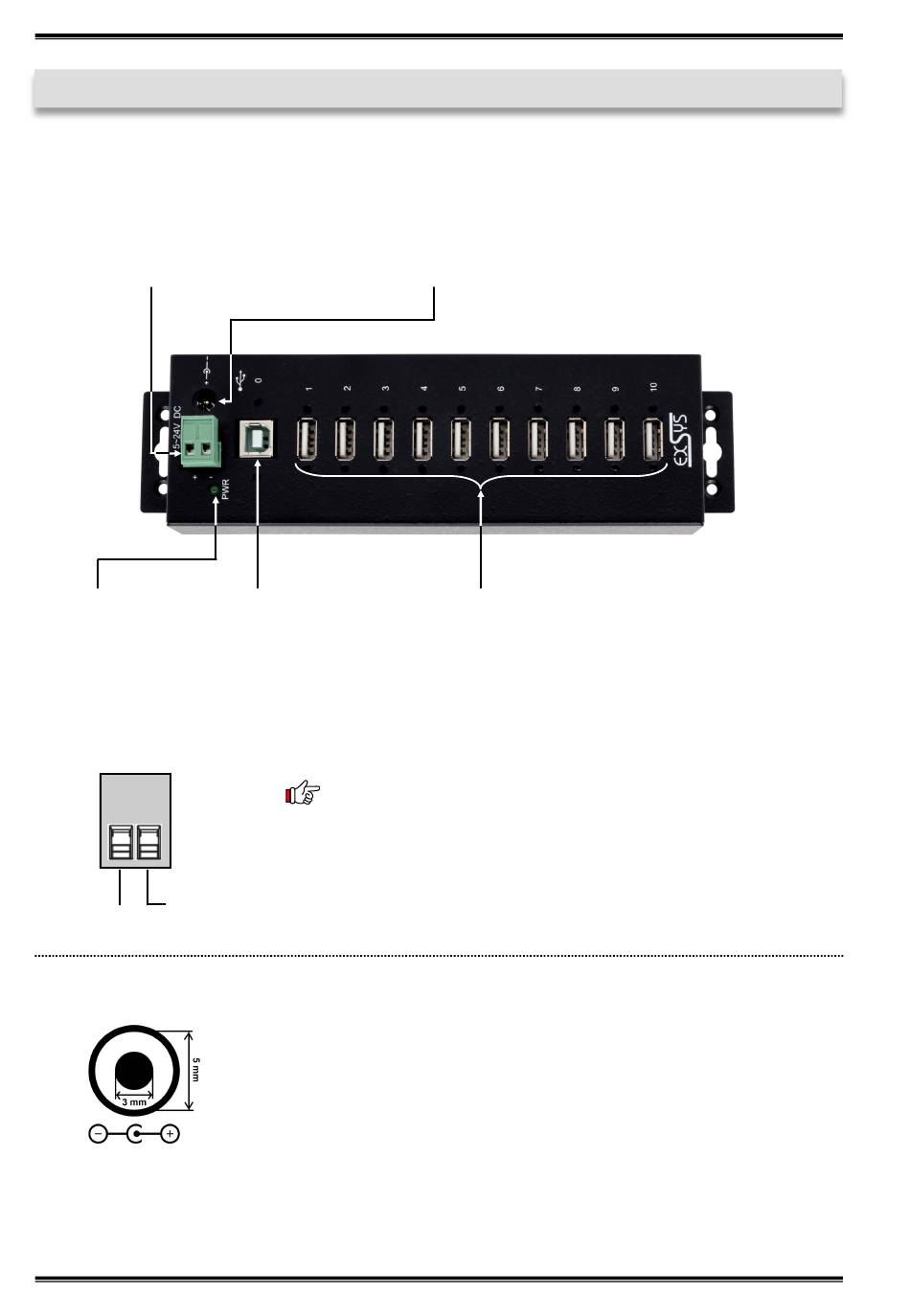

3. Layout, Connections & Jumper Settings

3.1 Layout

Front Side:
5-24V T-Block for
optional Power Supply
Power LED
Upstream B-Port

3.2 Connections

+5V to +24V T-Block:
GND (Ground)
+5V - 24V
+5V to +24V DC-Connector:
© Copyright 2023 by EXSYS Vertriebs GmbH. All Rights Reserved
5-24V DC-Connector for
optional Power Supply
1x USB 2.0
ATTENTION!!!
Never connect power to GND, it will destroy
your Hardware!!!
ATTENTION!
Never plug in with force!
Only use a power supply unit that is compatible in
terms of voltage and polarity!
10x USB 2.0
Downstream A-Port
10
EX-1170HMVS
