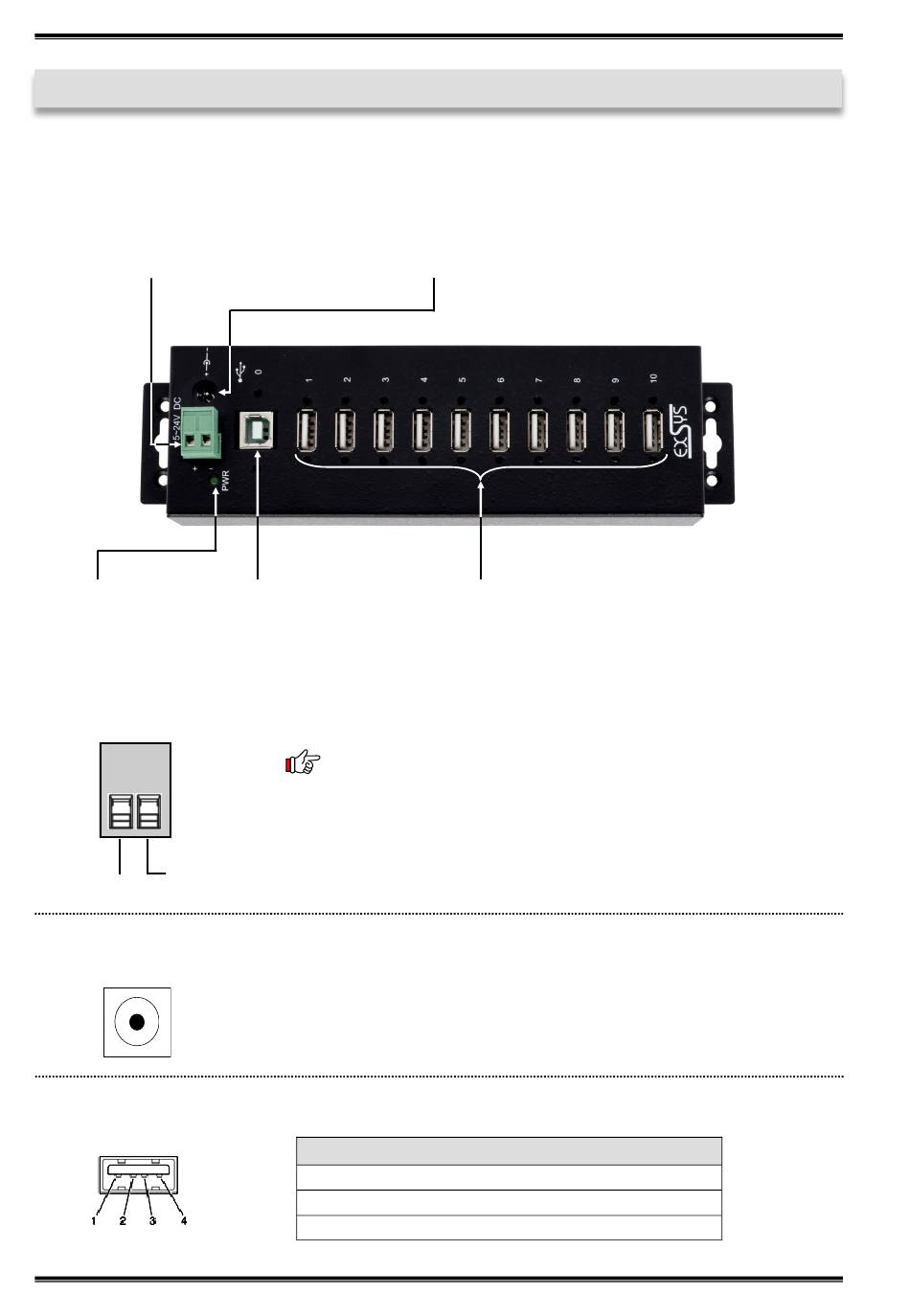

3. Layout, Connections & Jumper Settings

3.1 Layout

Front Side:
5-24V T-Block for
optional Power Supply
Power LED
Upstream B-Port

3.2 Connections

+5V to +24V T-Block:
GND (Ground)
+5V - 24V
+5V to +24V DC-Connector:
USB 2.0 A-Port:
© Copyright 2023 by EXSYS Vertriebs GmbH. All Rights Reserved
5-24V DC-Connector for
optional Power Supply
1x USB 2.0
ATTENTION!!!
Never connect power to GND, it will destroy
your Hardware!!!
ATTENTION!!!
Only for use with optionally available power supply!
USB 2.0 A-Port
Pin
1
2
10x USB 2.0
Downstream A-Port
Signal Pin
VCC 3
DATA- 4
10
EX-1170HMVS
Signal
DATA+
GND
