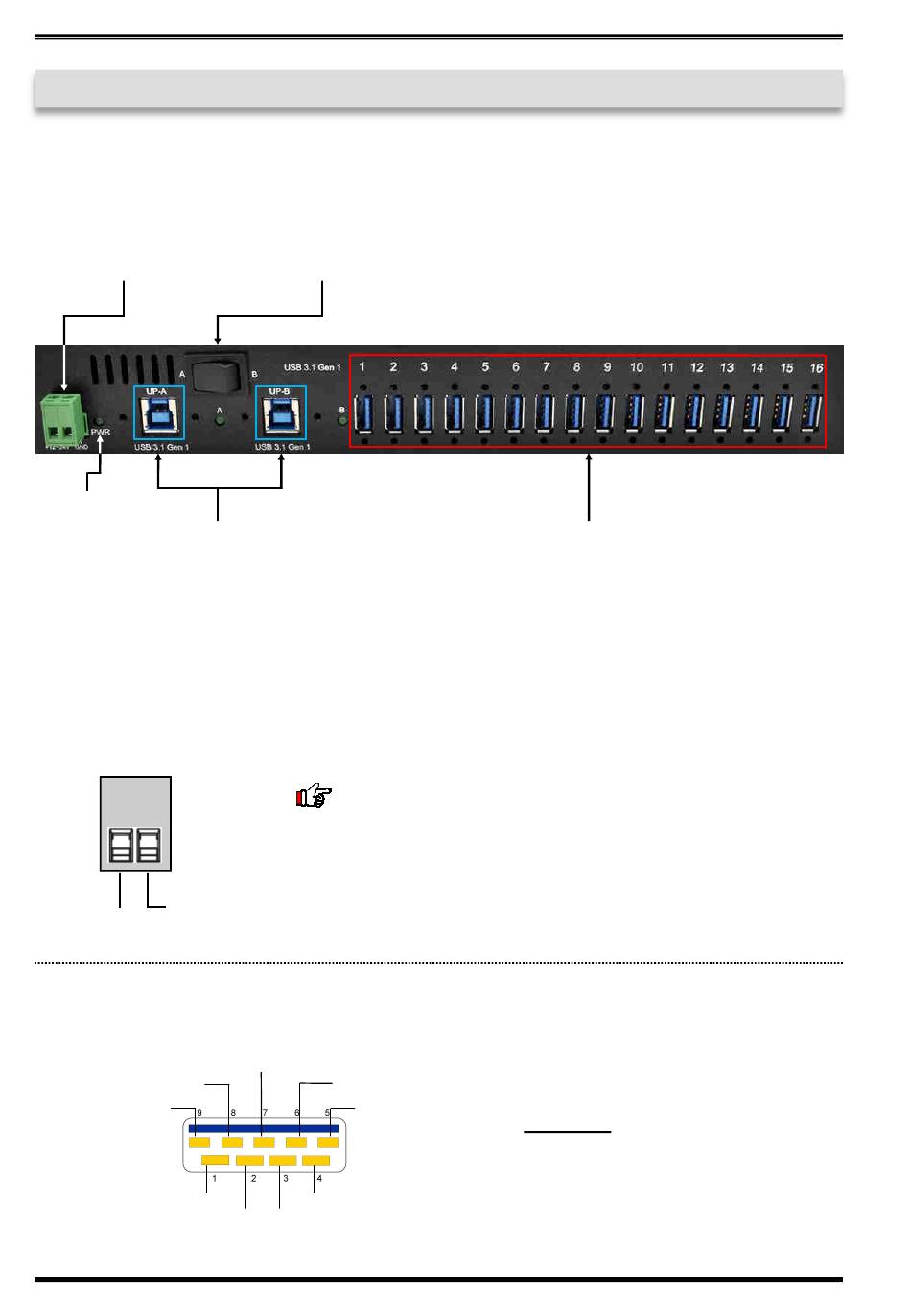

3. Layout, Connections & Jumper Settings
3.1 Layout
12-24V T-Block
for optional externeal
Power Supply
Power LED
2x USB 3.1 (Gen1)
Upstream B-Port

3.2 Connections

+12V - 24V T-Block:
GND (Ground)
+12V - 24V
USB 3.1 (Gen1) A-Port:
StdB_SSTX +
StdB_SSTX -
VCC
© Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved
Toggle Switch to
select the Upstream
USB B-Port
ATTENTION!!!
Never connect power to GND, it will destroy
your Hardware!!!
GND_DRAIN
StdB_SSTX+
StdB_SSTX -
GND
D- D+
16x USB 3.1 (Gen1)
Downstream A-Port
Attention!
Never plug in with force
or in wrong direction.
10
EX-1116HMVS
