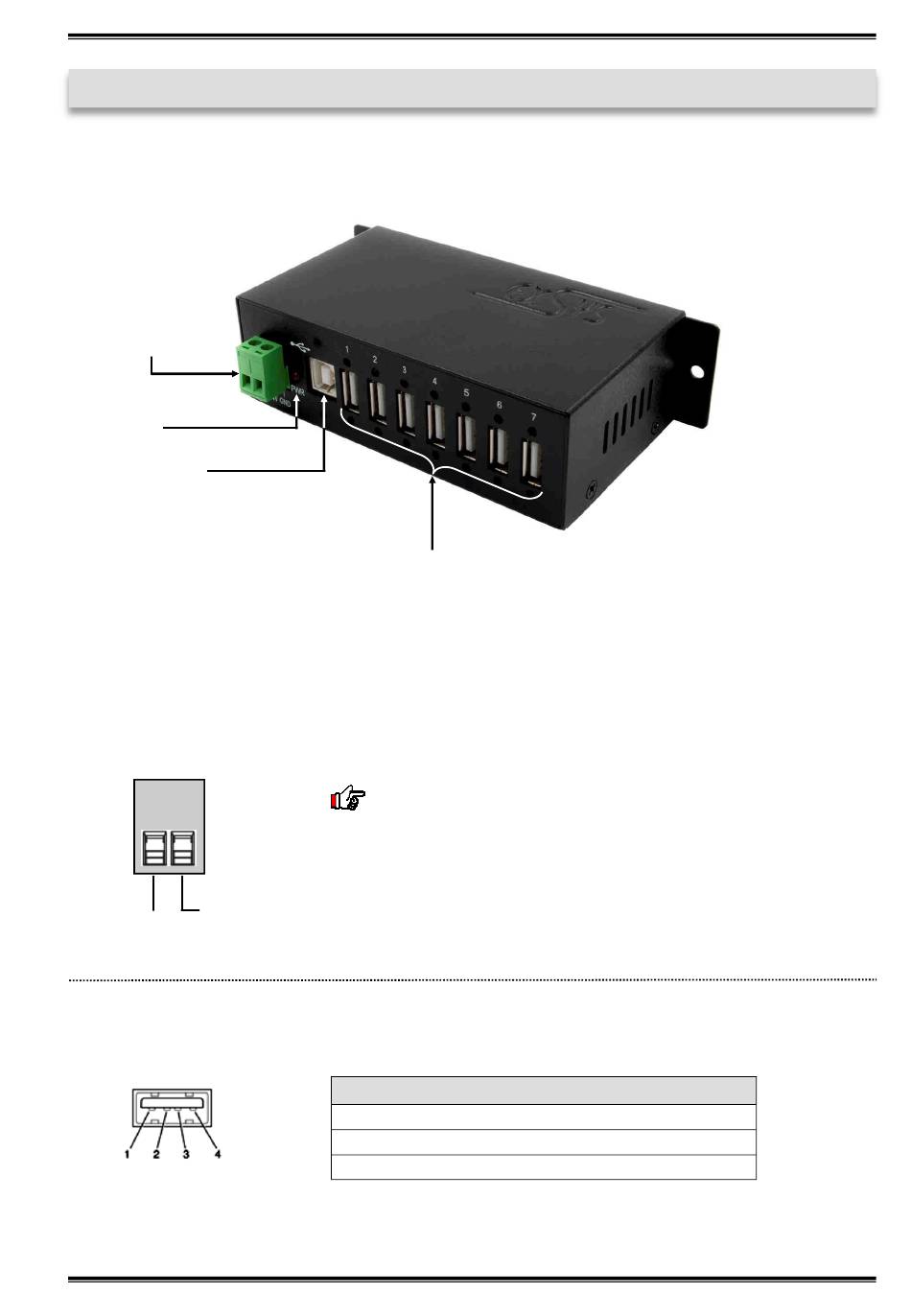

3. Layout, Connections & Jumper Settings

3.1 Layout

7-24V T-Block
for optional external
Power Supply
Power LED
1x USB 2.0
Upstream B-Port

3.2 Connections

+7V - 24V T-Block:
GND (Ground)
+7V - 24V
USB 2.0 A-Port:
© Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved
7x USB 2.0
Downstream A-Port
ATTENTION!!!
Never connect power to GND, it will destroy
your Hardware!!!
USB 2.0 A-Port
Pin Signal
1 VCC
2 DATA-
9
Pin Signal
3 DATA+
4 GND
English
