3. Layout, Connections & Jumper Settings
3.3 Jumper Settings
The EX-1237HMVS will be delivered with the setting Bus-Power.
possibility to cut the power at the data line.
screws on both sides. Then you must set the jumper JP1 from ENA (Enable) to DIS
(Disable).
Furthermore, you also have the option of leaving power to the hub only when the hub
is connected to the Host PC and the Host PC is turned on. For this you have to set the
jumper JP2 to HOST. If JP2 is set to ON, then power is continuously applied to the

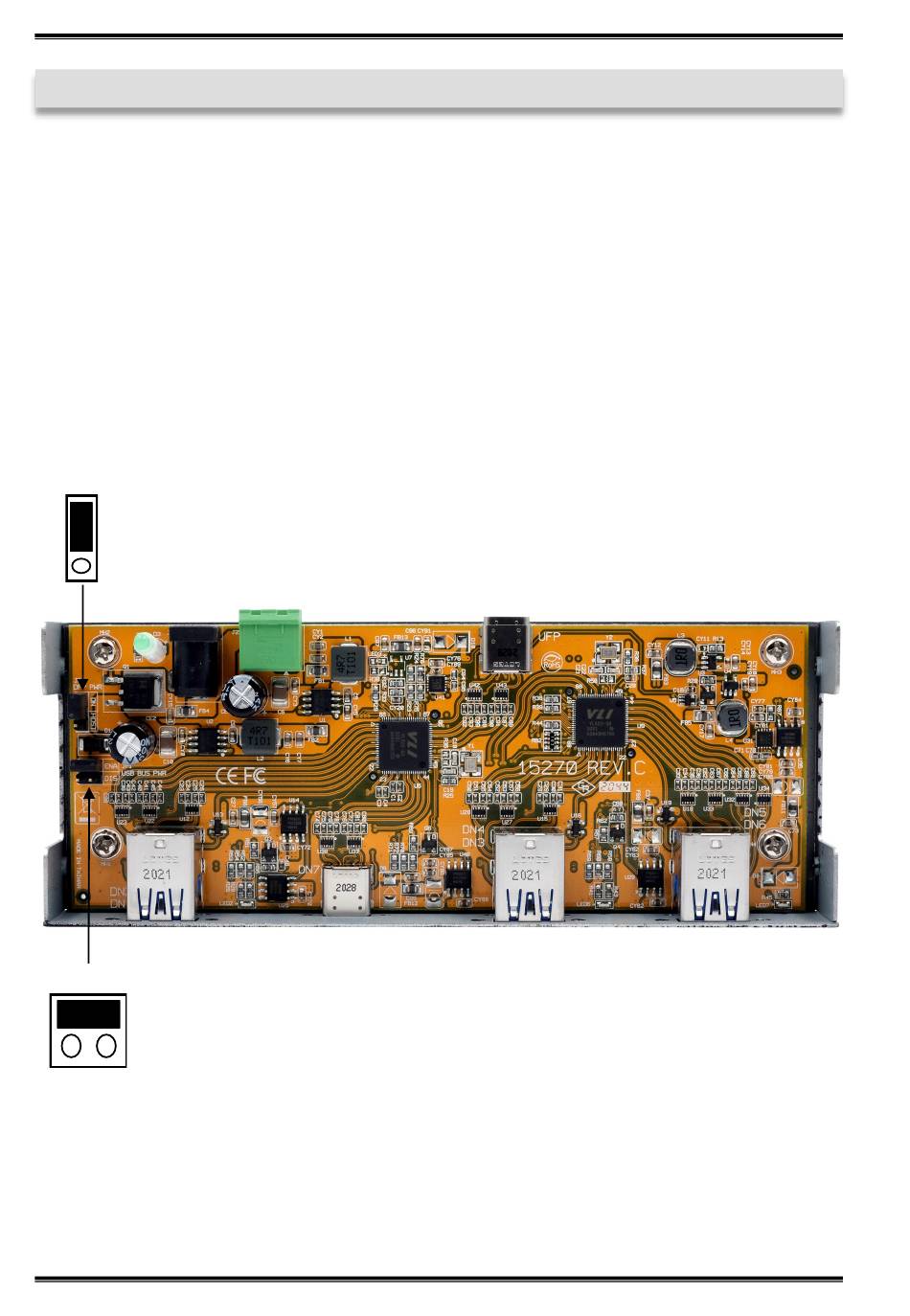

hub. See the following picture.
JP2
ON
HOST
JP1
ENA
DIS
