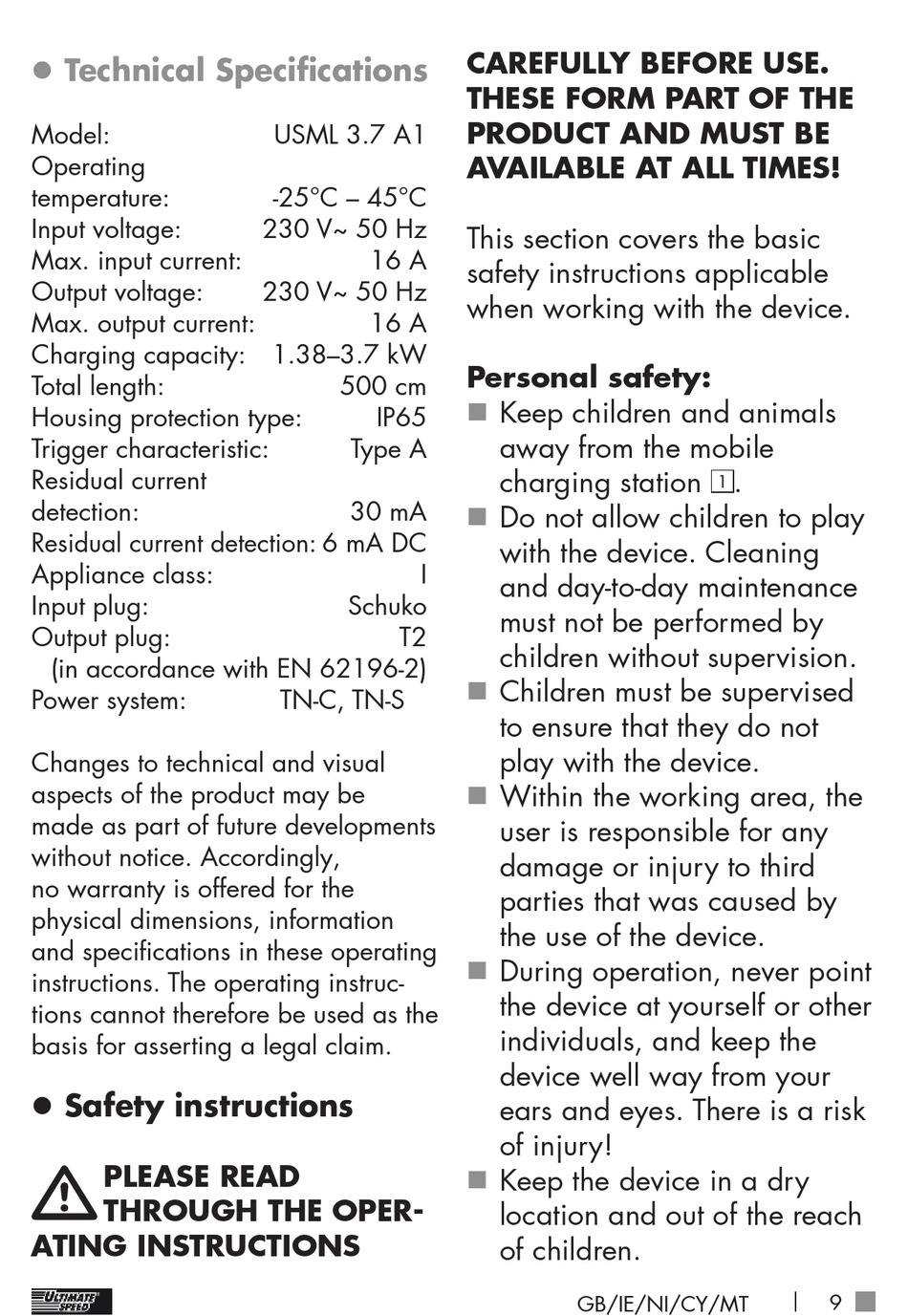

z Technical Specifications
Model:
Operating
temperature:
Input voltage:
Max. input current:
Output voltage:
Max. output current:
Charging capacity: 1.38–3.7 kW
Total length:
Housing protection type:
Trigger characteristic:
Residual current
detection:
Residual current detection: 6 mA DC
Appliance class:
Input plug:
Output plug:
(in accordance with EN 62196-2)
Power system:
Changes to technical and visual
aspects of the product may be
made as part of future developments
without notice. Accordingly,
no warranty is offered for the
physical dimensions, information
and specifications in these operating
instructions. The operating instruc-
tions cannot therefore be used as the
basis for asserting a legal claim.
z Safety instructions
PLEASE READ
THROUGH THE OPER-
ATING INSTRUCTIONS
USML 3.7 A1
-25°C – 45°C
230 V~ 50 Hz
16 A
230 V~ 50 Hz
16 A
500 cm
IP65
Type A
30 mA
I
Schuko
T2
TN-C, TN-S
CAREFULLY BEFORE USE.
THESE FORM PART OF THE
PRODUCT AND MUST BE
AVAILABLE AT ALL TIMES!
This section covers the basic
safety instructions applicable
when working with the device.
Personal safety:
Keep children and animals
„
away from the mobile
charging station
Do not allow children to play
„
with the device. Cleaning
and day-to-day maintenance
must not be performed by
children without supervision.
Children must be supervised
„
to ensure that they do not
play with the device.
Within the working area, the
„
user is responsible for any
damage or injury to third
parties that was caused by
the use of the device.
During operation, never point
„
the device at yourself or other
individuals, and keep the
device well way from your
ears and eyes. There is a risk
of injury!
Keep the device in a dry
„
location and out of the reach
of children.
GB/IE/NI/CY/MT
.
1
9
