Display control

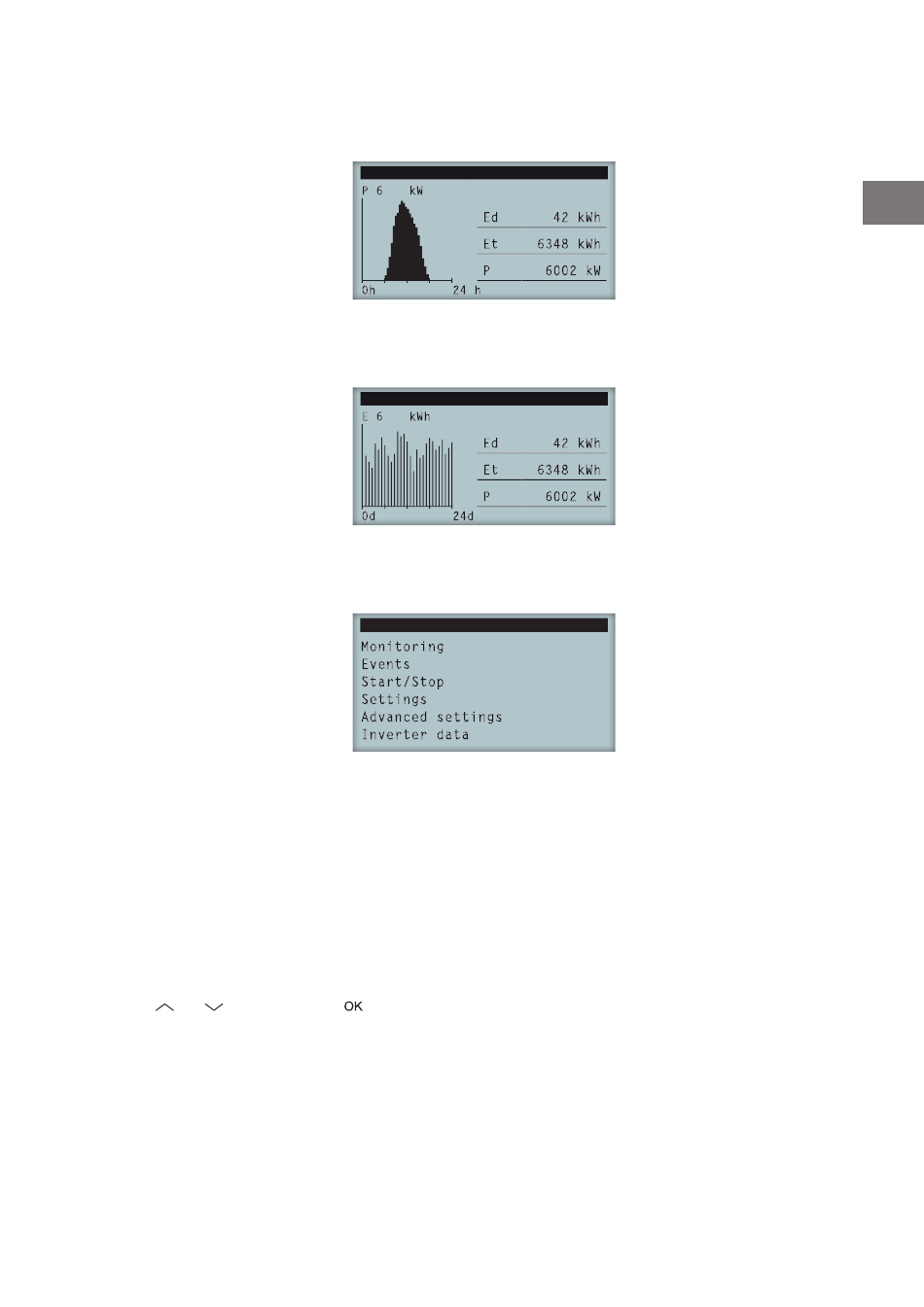

12.4. Daily power graph

In this screen you can consult the daily power graph. The daily energy values (Ed), from the first connection of the
day to the time of the query, the total accumulated energy (Et) and the power (P) are also listed.

12.5. Energy graph for the last 24 days

In this screen you can consult the energy graph for the last 24 days. The daily energy values (Ed), from the first
connection of the day to the time of the query, the total accumulated energy (Et) and the power (P) are also listed.

12.6. Main menu

The main menu contains the following submenus:
Monitoring This menu includes a series of screens which show the main variables being monitored.
The right-hand screen shows the first one as an example.
Events This shows the main events such as alarms, warnings and reasons for shutdown.
Start/Stop Start up and shutdown the inverter manually.
Settings Modify parameters to adapt the unit to different operational conditions.
Advanced settings To carry out advanced settings in the inverter. Its access is restricted by the installer
password. Is not user-accessible.
Inverter data Key information referring to the inverter: serial number, firmware loaded, etc.
To access the various menus and submenus, the desired option must be highlighted over a black background using
the and keys and press the
ABI2011IQM01_A - Installation and usage manual
06/05/2014 06/05/2014
06/05/2014 06/05/2014
10:23 10:23 11/01/2014 11/01/2014
key to access it.
10:17 10:17
10:17 10:17
Ingeteam
DE
EN
ES
FR
IT
PT
85
