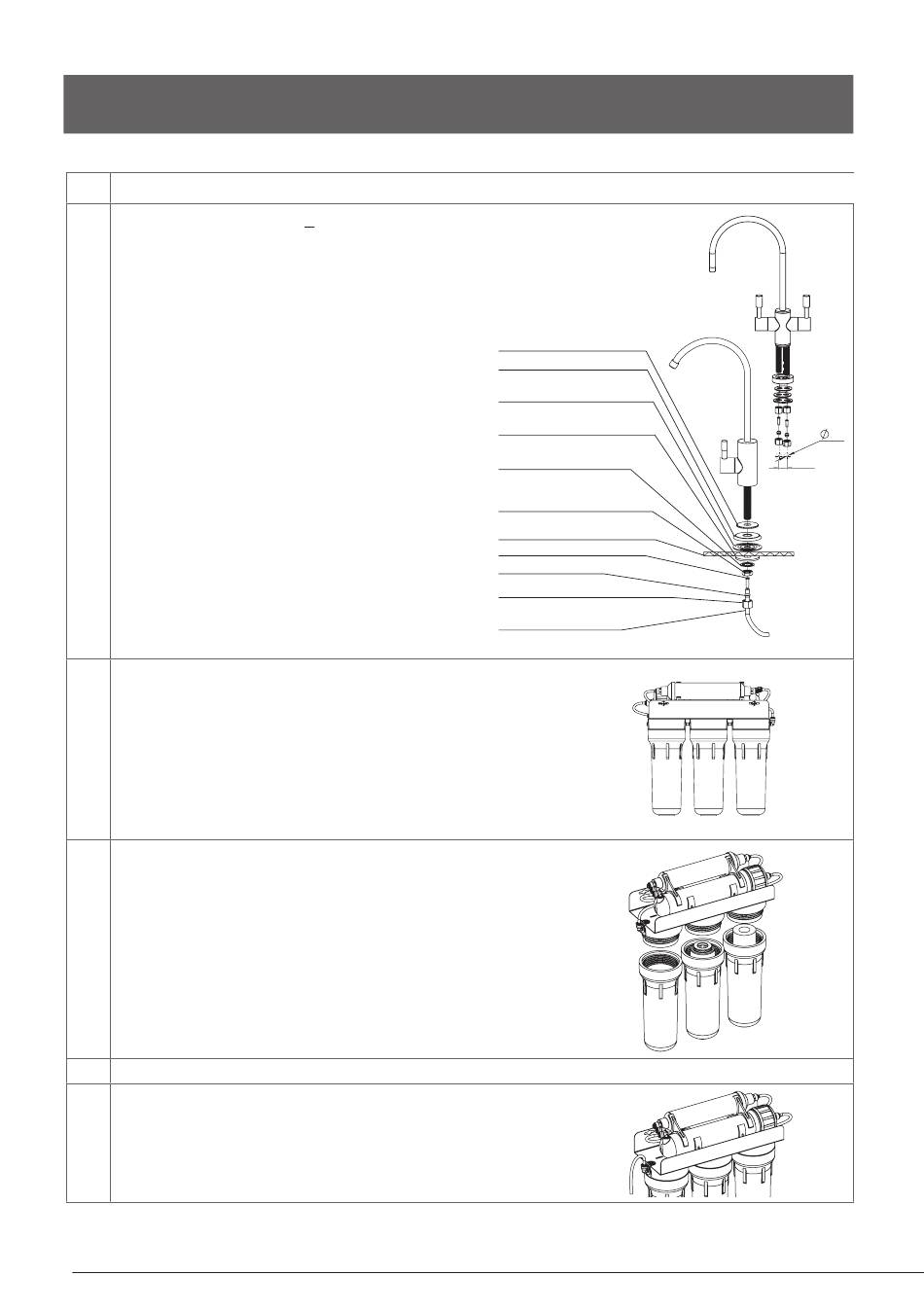

4. STEPS FOR INSTALLING REVERSE OSMOSIS SYSTEM
7.
Installation of the faucet.
To install drinking water faucet
7.1
single way tap or 17 mm (2/3") diameter hole for two way tap in a conve-
nient location at the sink or countertop.
Caution! metal shavings can damage your unit, remove them carefully
as soon as you have drilled the hole. If the mounting surface is ceramic
or stone, you may need a special carbide drill.
Mount the faucet on the sink or countertop as shown on the
7.2
figure. Nut, lock washer and plastic washer on the faucet
shank must fix the faucet firmly on the surface.
Take the blue tube, put on compression nut, ferrule, and put
7.3
plastic insert inside, in that order.
Push the blue tube as deeply as possible into the bottom of
7.4
the faucet's shank, ensuring the compression ring is in the
joint. Screw on the compression nut in order to join the tube
to the faucet.
Installation of the double lever faucet (for a system with
7.5
mineralizing post-filter) is done similarly.
8. Select spot where you are going to install the filter and
make two holes. The distance between the holes in the wall
must precisely correspond to that between the holes in
the bracket. Allow for at least 100 mm (3.9") gap between
the bottom of the filter and floor. Install screw anchors if
necessary and screw in two screws (not included).
The distance between the holes is 272 mm (10.7").
9. Insert cartridges into the first and the second housings in
the direction of water flow (leftwards).
10. Tighten all the three sumps by hand.
11. Unplug the tube that connects the third housing (in the
direction of water flow) with the auto shut-off valve from
the valve.
44
3
drill 12.5 mm (1/2") diameter hole for
small rubber gasket
chrome-plated cover
large rubber gasket
large plastic gasket
lock washer
nut
counter
plastic insert
1/4 ferrule
1/4 compression nut
blue tube
272 mm (10.7")
Code P0090636 - Rev 0 - 19/06/2019
12,5 mm
(1/2")
17 mm
(2/3")
