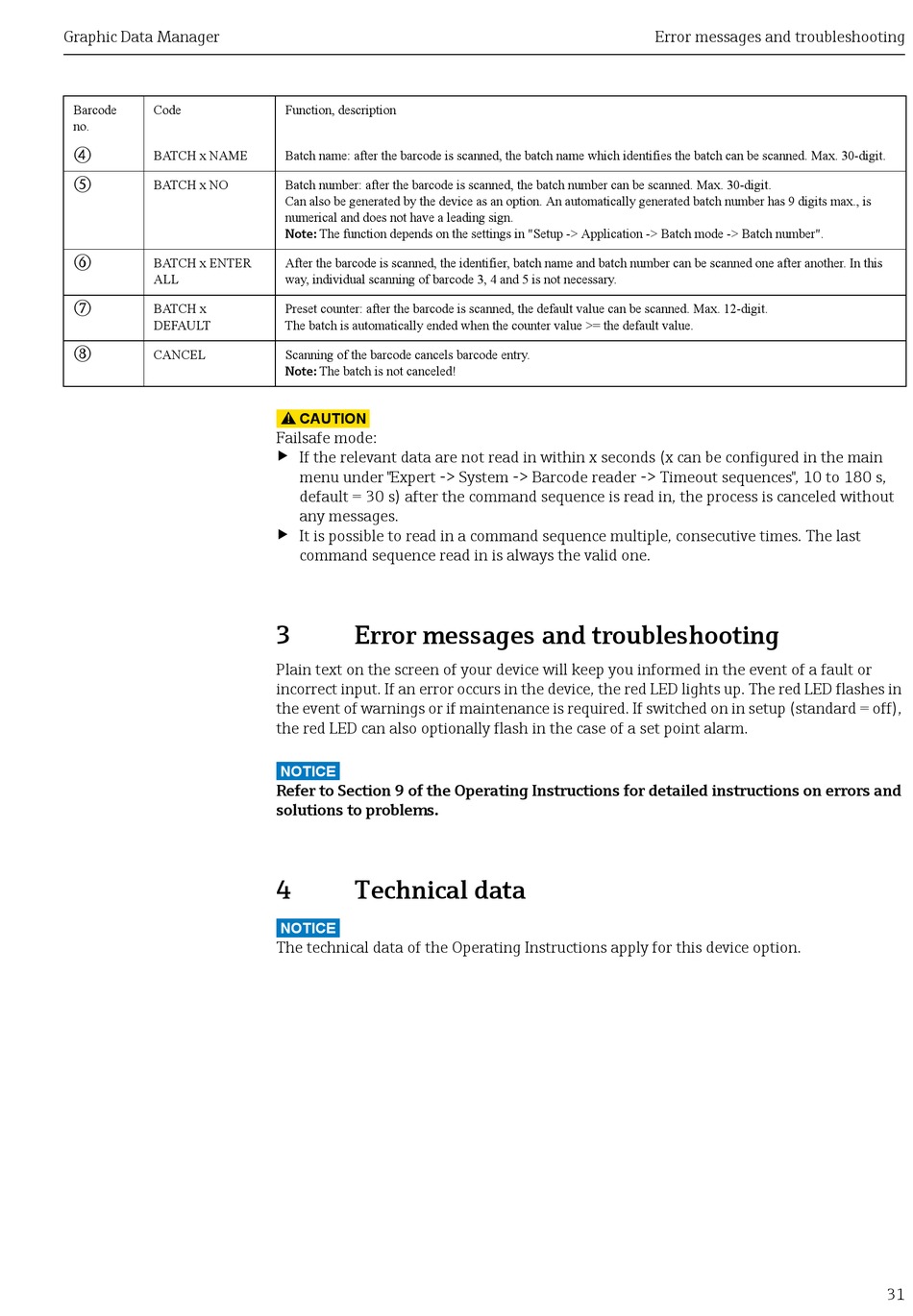

Graphic Data Manager
Barcode Code
no.
p
BATCH x NAME
q
BATCH x NO
r
BATCH x ENTER
ALL
s
BATCH x
DEFAULT
t
CANCEL
Function, description
Batch name: after the barcode is scanned, the batch name which identifies the batch can be scanned. Max. 30-digit.
Batch number: after the barcode is scanned, the batch number can be scanned. Max. 30-digit.
Can also be generated by the device as an option. An automatically generated batch number has 9 digits max., is
numerical and does not have a leading sign.
Note: The function depends on the settings in "Setup -> Application -> Batch mode -> Batch number".
After the barcode is scanned, the identifier, batch name and batch number can be scanned one after another. In this
way, individual scanning of barcode 3, 4 and 5 is not necessary.
Preset counter: after the barcode is scanned, the default value can be scanned. Max. 12-digit.
The batch is automatically ended when the counter value >= the default value.
Scanning of the barcode cancels barcode entry.
Note: The batch is not canceled!
CAUTION
!
Failsafe mode:
‣
If the relevant data are not read in within x seconds (x can be configured in the main
menu under "Expert -> System -> Barcode reader -> Timeout sequences", 10 to 180 s,
default = 30 s) after the command sequence is read in, the process is canceled without
any messages.
‣
It is possible to read in a command sequence multiple, consecutive times. The last
command sequence read in is always the valid one.
3 Error messages and troubleshooting
Plain text on the screen of your device will keep you informed in the event of a fault or
incorrect input. If an error occurs in the device, the red LED lights up. The red LED flashes in
the event of warnings or if maintenance is required. If switched on in setup (standard = off),
the red LED can also optionally flash in the case of a set point alarm.
NOTICE
Refer to Section 9 of the Operating Instructions for detailed instructions on errors and
solutions to problems.
4 Technical data
NOTICE
The technical data of the Operating Instructions apply for this device option.
Error messages and troubleshooting
