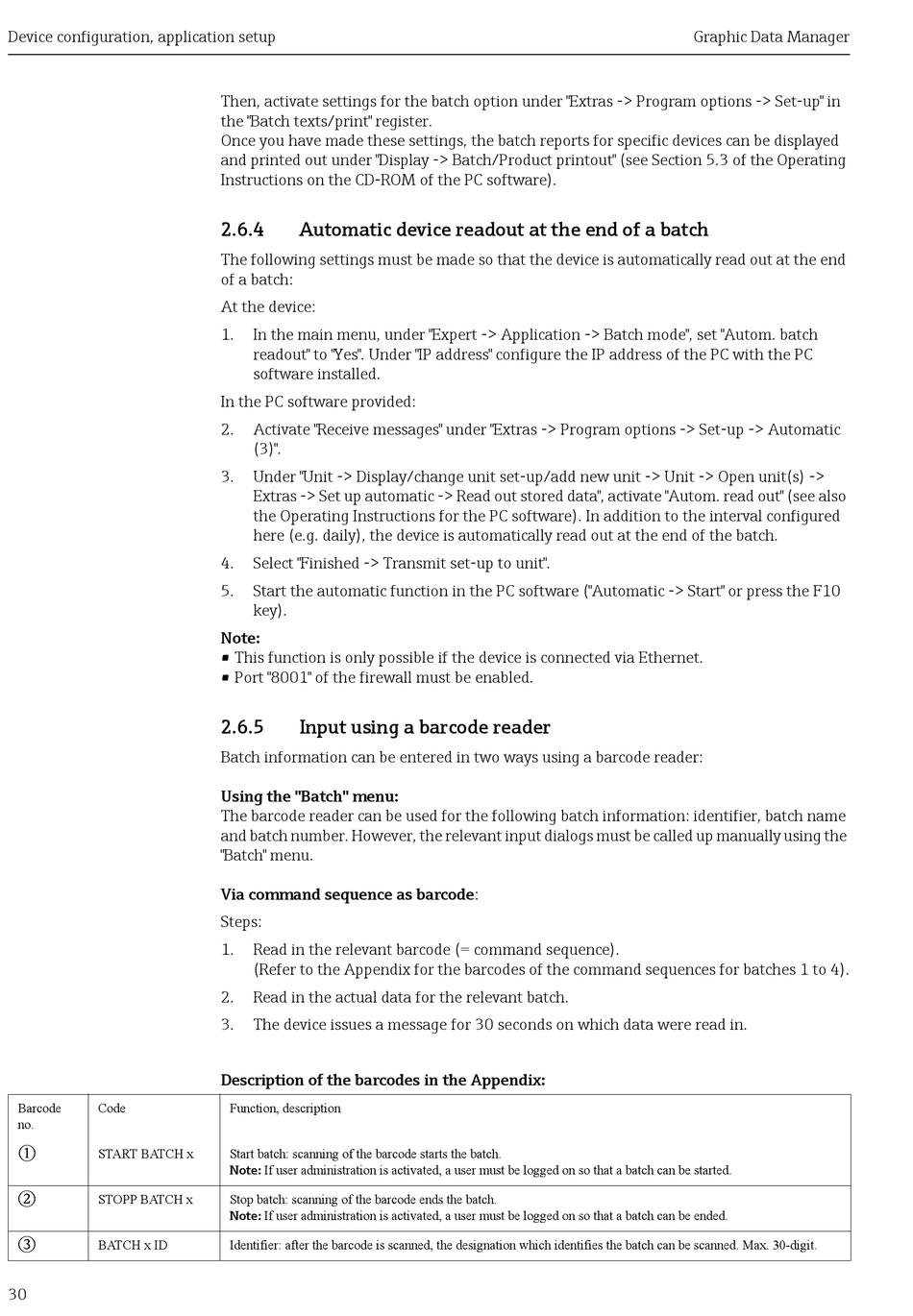

Device configuration, application setup
Barcode Code
no.
m
START BATCH x
n
STOPP BATCH x
o
BATCH x ID
30
Then, activate settings for the batch option under "Extras -> Program options -> Set-up" in
the "Batch texts/print" register.
Once you have made these settings, the batch reports for specific devices can be displayed
and printed out under "Display -> Batch/Product printout" (see Section 5.3 of the Operating
Instructions on the CD-ROM of the PC software).
2.6.4 Automatic device readout at the end of a batch
The following settings must be made so that the device is automatically read out at the end
of a batch:
At the device:
1. In the main menu, under "Expert -> Application -> Batch mode", set "Autom. batch
readout" to "Yes". Under "IP address" configure the IP address of the PC with the PC
software installed.
In the PC software provided:
2. Activate "Receive messages" under "Extras -> Program options -> Set-up -> Automatic
(3)".
3. Under "Unit -> Display/change unit set-up/add new unit -> Unit -> Open unit(s) ->
Extras -> Set up automatic -> Read out stored data", activate "Autom. read out" (see also
the Operating Instructions for the PC software). In addition to the interval configured
here (e.g. daily), the device is automatically read out at the end of the batch.
4. Select "Finished -> Transmit set-up to unit".
5. Start the automatic function in the PC software ("Automatic -> Start" or press the F10
key).
Note:
• This function is only possible if the device is connected via Ethernet.
• Port "8001" of the firewall must be enabled.
2.6.5 Input using a barcode reader
Batch information can be entered in two ways using a barcode reader:
Using the "Batch" menu:
The barcode reader can be used for the following batch information: identifier, batch name
and batch number. However, the relevant input dialogs must be called up manually using the
"Batch" menu.
Via command sequence as barcode:
Steps:
1. Read in the relevant barcode (= command sequence).
(Refer to the Appendix for the barcodes of the command sequences for batches 1 to 4).
2. Read in the actual data for the relevant batch.
3. The device issues a message for 30 seconds on which data were read in.
Description of the barcodes in the Appendix:
Function, description
Start batch: scanning of the barcode starts the batch.
Note: If user administration is activated, a user must be logged on so that a batch can be started.
Stop batch: scanning of the barcode ends the batch.
Note: If user administration is activated, a user must be logged on so that a batch can be ended.
Identifier: after the barcode is scanned, the designation which identifies the batch can be scanned. Max. 30-digit.
