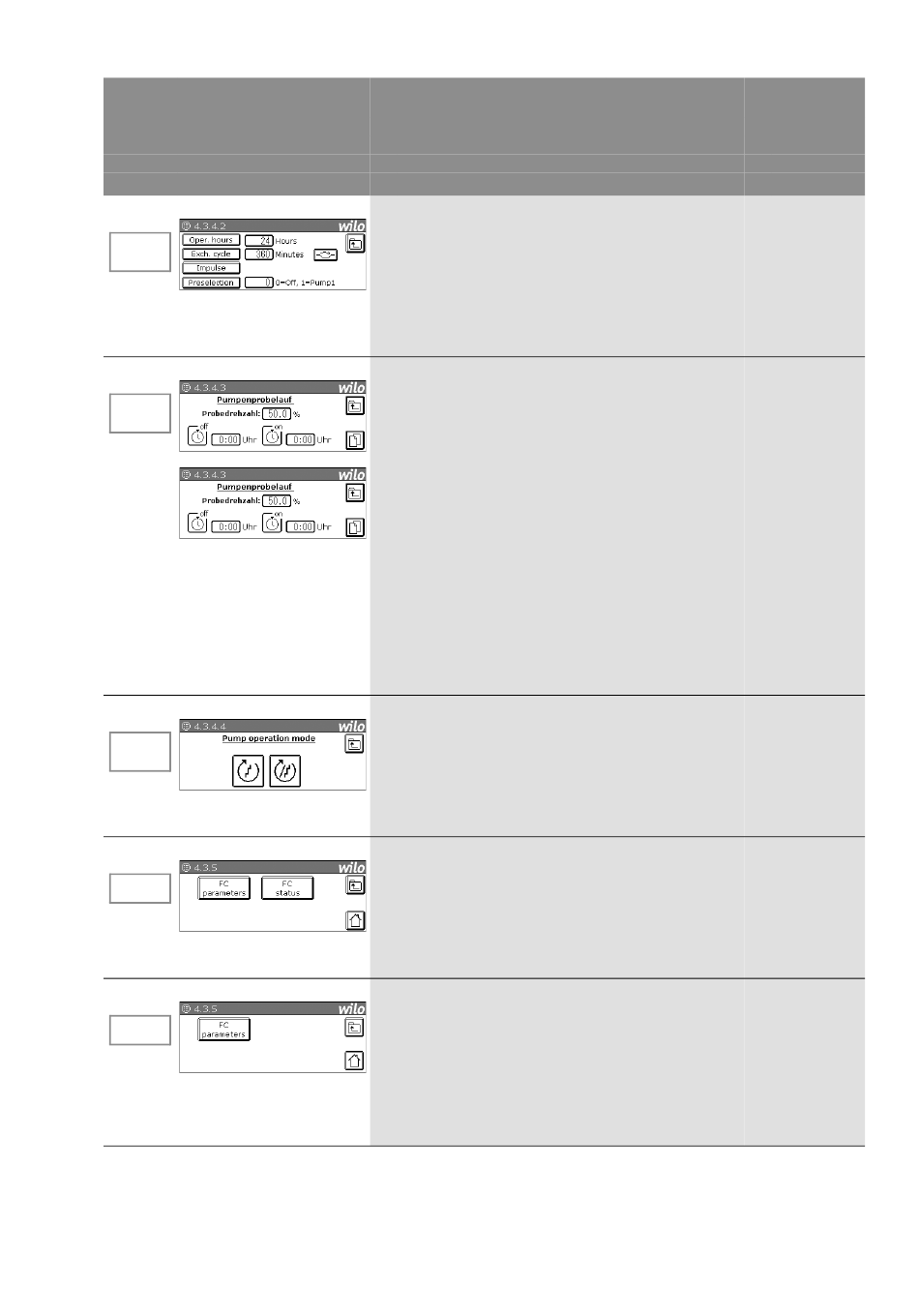

Menu no. Display
visible for
User 1 and higher:
Calling up User 2 and higher:
by: Service:
4.3.4.2 Pump cycling
Pump cycling
4.3.4.3 Pump test run
Pump test run
4.3.4.4 Pump operating mode
Pump mode
CCe
4.3.5 Frequency converters
FC
CC-FC
4.3.5 Frequency converters
FC
CCe
58
Description
*
**
***
* Specification of type of pump cycling
(acc. to operating hours, for switch-
on impulse, cyclical) and the cycling
times. It is possible to pre-define the
base-load pump. The number of this
pump has to be entered for this.
For cyclical pump cycling there is the
option of switching on an overlap
pump.
* Setting of pump test run interval and
of the activation period during the
pump test run. Option whether test
run can also happen with external
deactivation.
Pump test can be done:
By pushing the "TEST" button a
pump is started for the activation
period set above (this function is only
effective if the drives are switched to
"off" – menu 4.3.1).
Every subsequent pushing of the
button starts the additional pumps in
sequence.
The pump speed can be set during
the test run for CC-FC and CCe.
An interval can be specified in which
no pump test run should take place.
Setting of operating mode:
*
Cascade or Vario
* Call-up of menus for setting the
FC parameters and to display the
FC status
* Call-up of menus for setting the
FC parameters
Setting parameters/ Factory setting
functions
adjustable by
User 1 and higher: *
User 2 and higher: **
Service: ***
Operating hours [h] ** 1...24...99
Exchange cycle [min] 1...360...1440
**
Number of perma- 0...6
**
nently set pump
Overlapping SLP yes/no
**
Test run interval [h] ** 0 / 6...99
Activation period [s] 1...10...30
**
For external Off yes / no
**
Test run -
*
**
Test run number 0.0..50.0..100.0
**
Off [Hour:Min] 00:00..23:59
**
On [Hour:Min] 00:00..23:59
Mode Cascade / Vario
**
None -
None -
