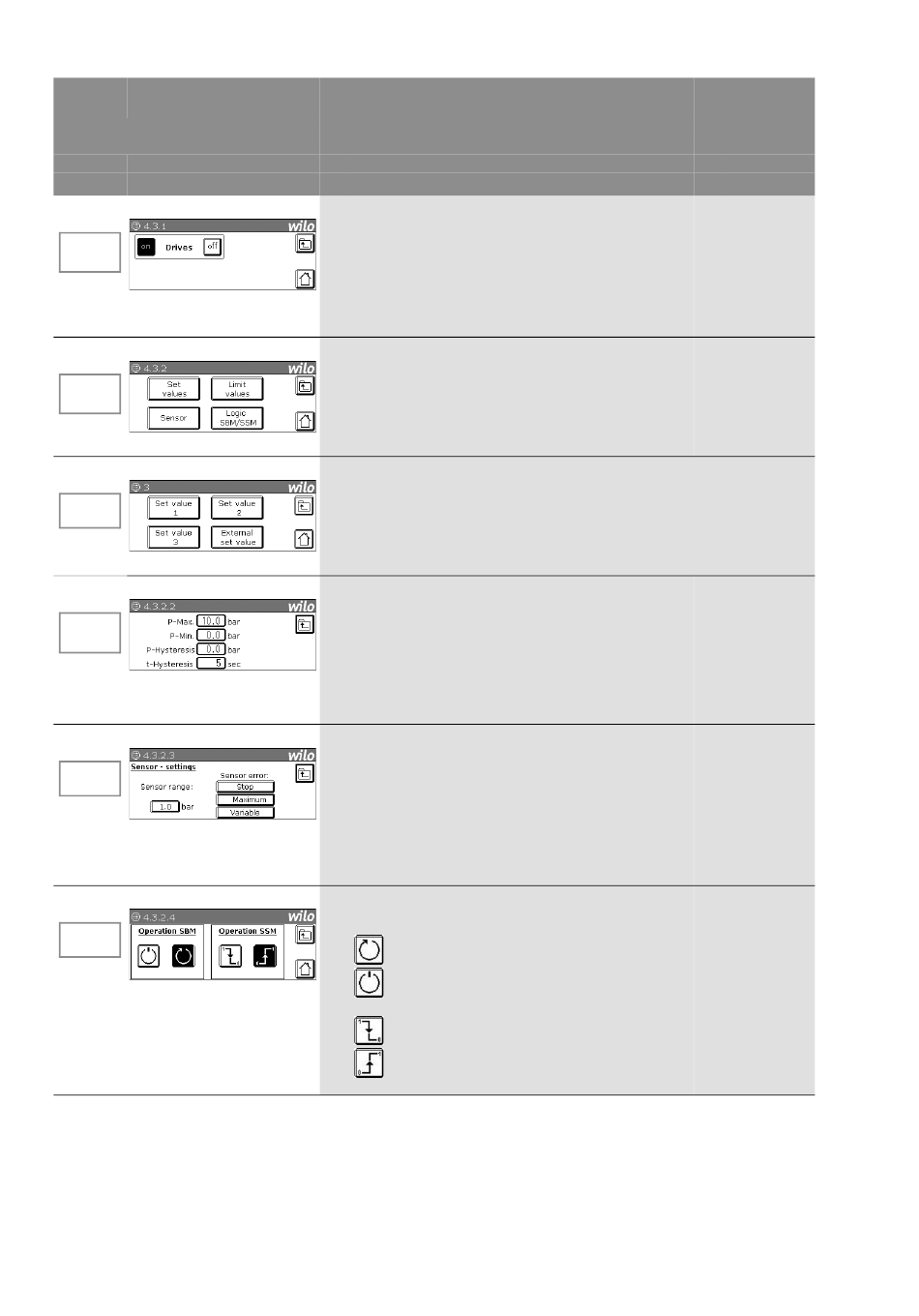

Menu no.
Display
visible for
User 1 and higher:
Calling up
User 2 and higher:
by:
Service:
4.3.1
System
System
CCe
CC
4.3.2
Operating parameters
Operating
parameters
4.3.2.1
Setpoints
Setpoints
4.3.2.2
Limit values
Limit values
4.3.2.3
Sensor
Sensor
4.3.2.4
Mode of action SSM /SBM relay
Logic
SBM/SSM
Installation and operating instructions Wilo-Control CC-Booster
Description
*
**
***
*
Switching on and off of drives
Switching on and off of frequency
converter
Call-up of menus for setting the
*
operating parameters of the set-
points, limit values, sensor and the
logic of relay for the SBM/SSM
*
Call-up of "setpoints" creates return
to menu no. 3
*
Entry of permitted limit values of
controlled variable. A time delay until
alarm triggers can be entered for this
limit value.
Selection of sensor measuring range
*
[1; 2.5; 4; 6; 8; 10; 16; 25 or 40 bar], as
well as the system behaviour during
sensor faults (switching off all
pumps, operation of all pumps with
max.
speed or operation of a pump with
pre-set speed (only CC-FC and CCe)
(See menu 4.3.5.1 page 2)
*
Selection of mode of action of relay
for the collective run signal and col-
lective fault signal
Operation
Readiness
(NC) Falling edge
(NO) Rising edge
Setting parameters/
Factory setting
functions
adjustable by
User 1 and higher:
*
User 2 and higher:
**
Service:
***
System
**
on / off
None
-
P-Max. [bar]
**
0.0...10.0...
Sensor
P-Min. [bar]
0.0...Sensor
**
P-Hysteresis [bar]
0.0...10.0
**
t-Hysteresis [s]
0...5...60
**
Measuring range [bar]
16.0
**
Behaviour during sen-
Stop /
**
sor fault:
Maximum /
Variable
SBM
**
Operation /
readiness
**
SSM
NC / NO
