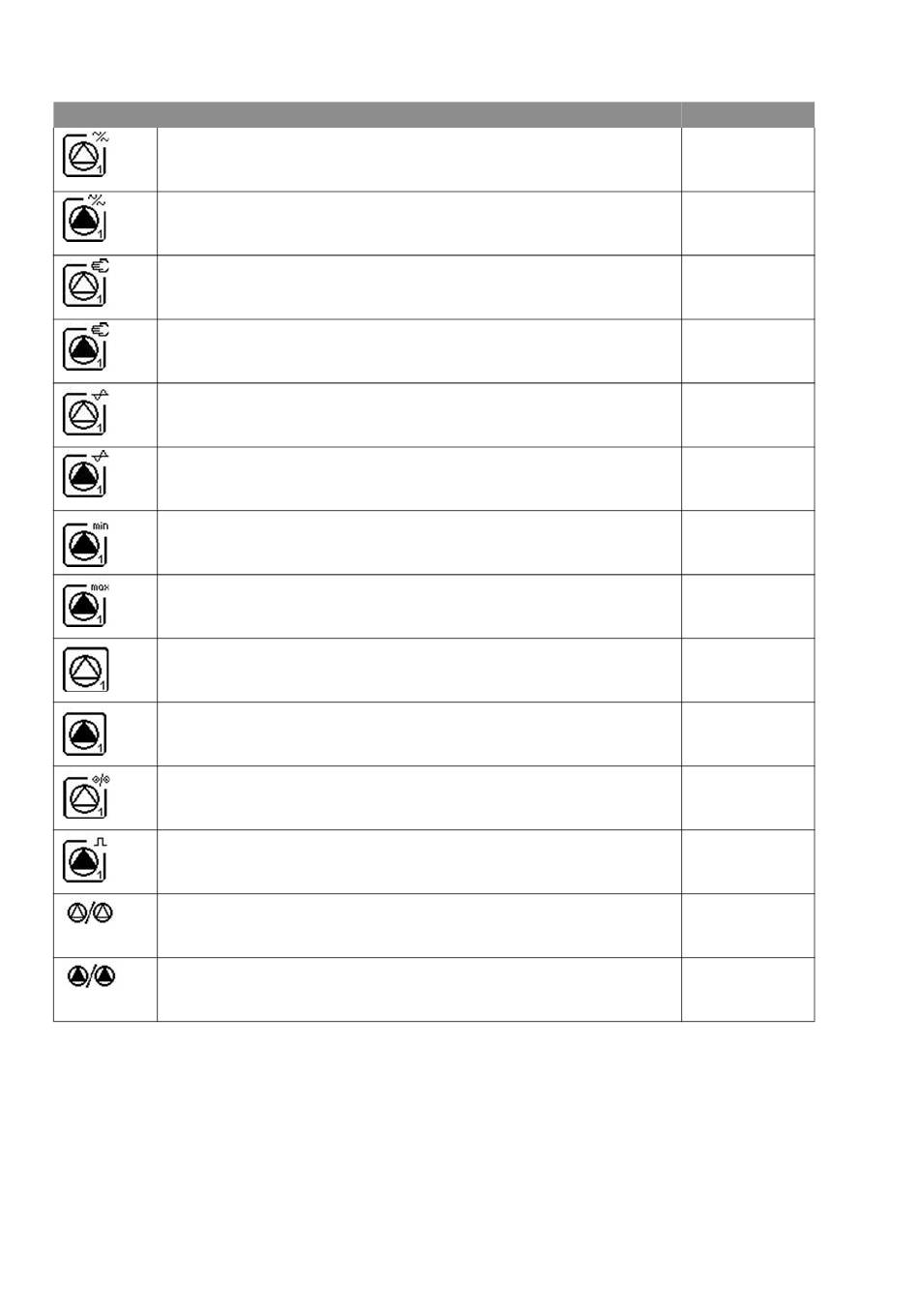

Pump symbols
Symbol Function/description
The pump is selected for FU operation and does not run.
The pump is selected for FU operation and runs.
The pump is selected for manual operation and does not run.
The pump is selected for manual operation and runs.
The pump is selected for mains operation and does not run.
The pump is selected for mains operation and runs.
CCe – The pump is operating controlled and running at minimum speed.
The pump is running uncontrolled at maximum speed.
The pump is ready for operation and does not run.
Alternately with the symbol above shows fault of a pump
The pump is reserve pump.
A pump test run is being done now at this pump.
Reserve pump function is activated
Reserve pump is in use
Installation and operating instructions Wilo-Control CC-Booster
English
Availability
CC-FC
CC
CC-FC
CC-FC
All
CC
CC-FC
CC
CC-FC
CCe
CCe
CCe
CCe
All
All
All
All
