English

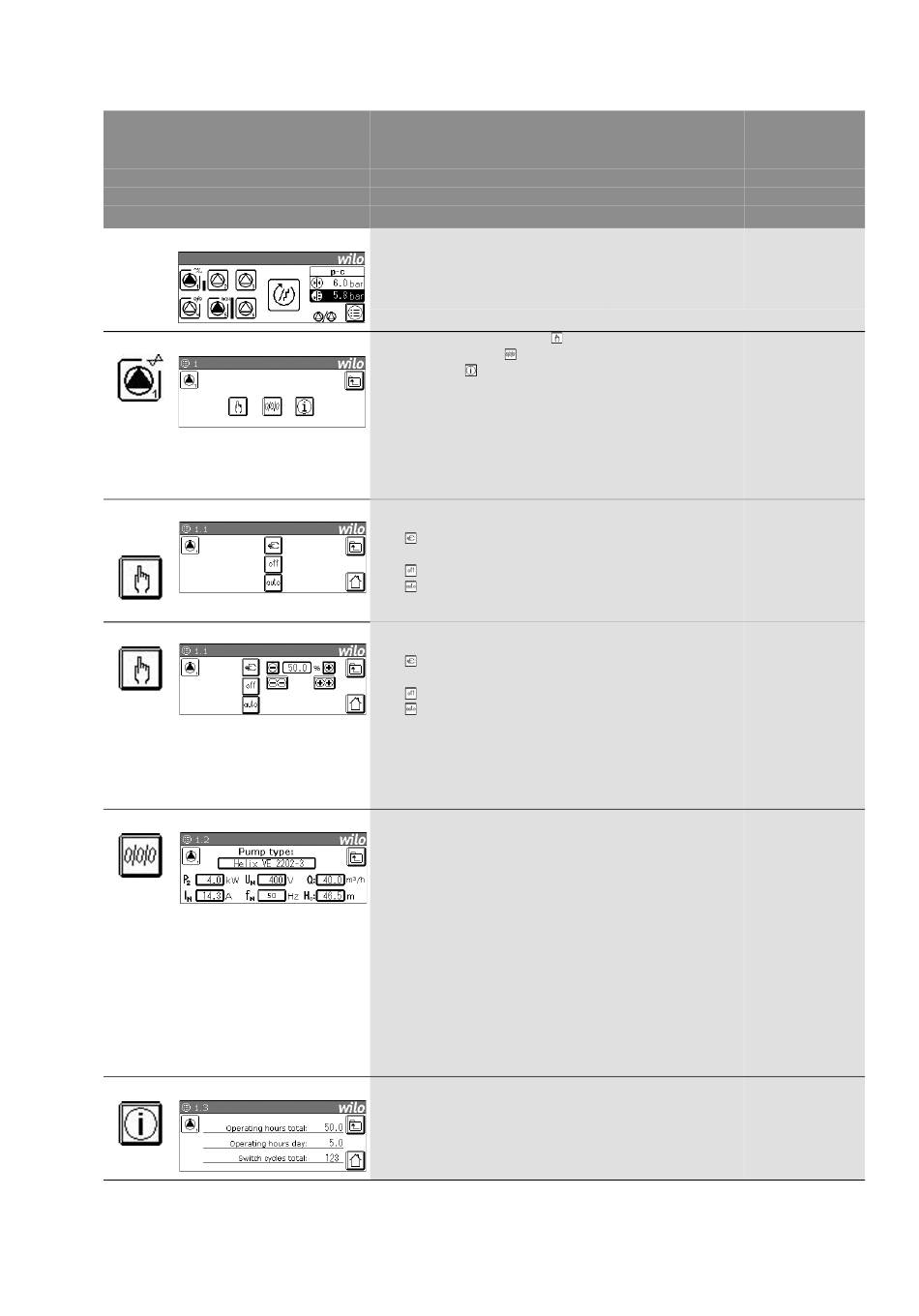

Table 2, Menu Description
Menu no. Display
visible for
User 1 and higher:
Calling up User 2 and higher:
by: Service:
0 Main screen
1 Pump 1...6
1.1 Operating mode of the pump
CC
CC-FC
1.1 CCe Operating mode of the pump
1.2 Operating data, pump
1.3 Pump info
52
Description
*
**
***
The bars beside the pump symbols
show the current speed of the pump
(CCe, CC-FC). The large symbol in the
centre shows the current pump oper-
ating mode, Cascade or Vario (CCe).
Calling up operating mode (
*
pump parameters ( ), and the oper-
ating data ( ) of the pumps 1...6.
(The number of pumps depends on
the system)
The ACTUAL current and ACTUAL
frequency of the pump are addition-
ally displayed for the pump running
at the frequency converter
(only CC-FC).
* Setting of pump operating mode:
Manual operation
(mains operation)
Off (no start via control)
Automatic
(FU/mains operation via control)
* Setting of pump operating mode:
Manual mode
(constant operation)
Off (no start via control)
Automatic
(operation via control)
Setting of speed in manual operation
* Display of pump information:
Type, shaft power P2, rated current,
rated voltage, rated frequency
(50/60 Hz), maximum flow rate and
zero delivery head.
NOTE:
Only enter information for pump1
during commissioning; data are
transferred automatically from
pump1 to pump 2...6.
* Display of complete operating hours
(since commissioning), daily operat-
ing hours, and the complete switch-
ing cycle (number of times switched
ON since commissioning).
Setting parameters/
functions
adjustable by
User 1 and higher:
User 2 and higher:
Service:
None
), the None
Operating mode
Operating mode
Speed, manual mode
Pump type
Shaft power P [kW]
2
Rated current IN [A]
Rated voltage UN [V]
Rated frequency fN
[Hz]
Q.max [m³/h]
Zero-delivery head [m]
None
Factory setting
*
**
***
-
-
** Manual mode /
Off /
Automatic
Manual mode /
**
Off /
Automatic
**
min/
50 % /
max
** Station-spe-
cific
**
0.2...1.5...500.0
**
0.2...3.7...999.9
2...400...9999
**
50 / 60
**
0.2...500.0
**
** 0.2...999.0
