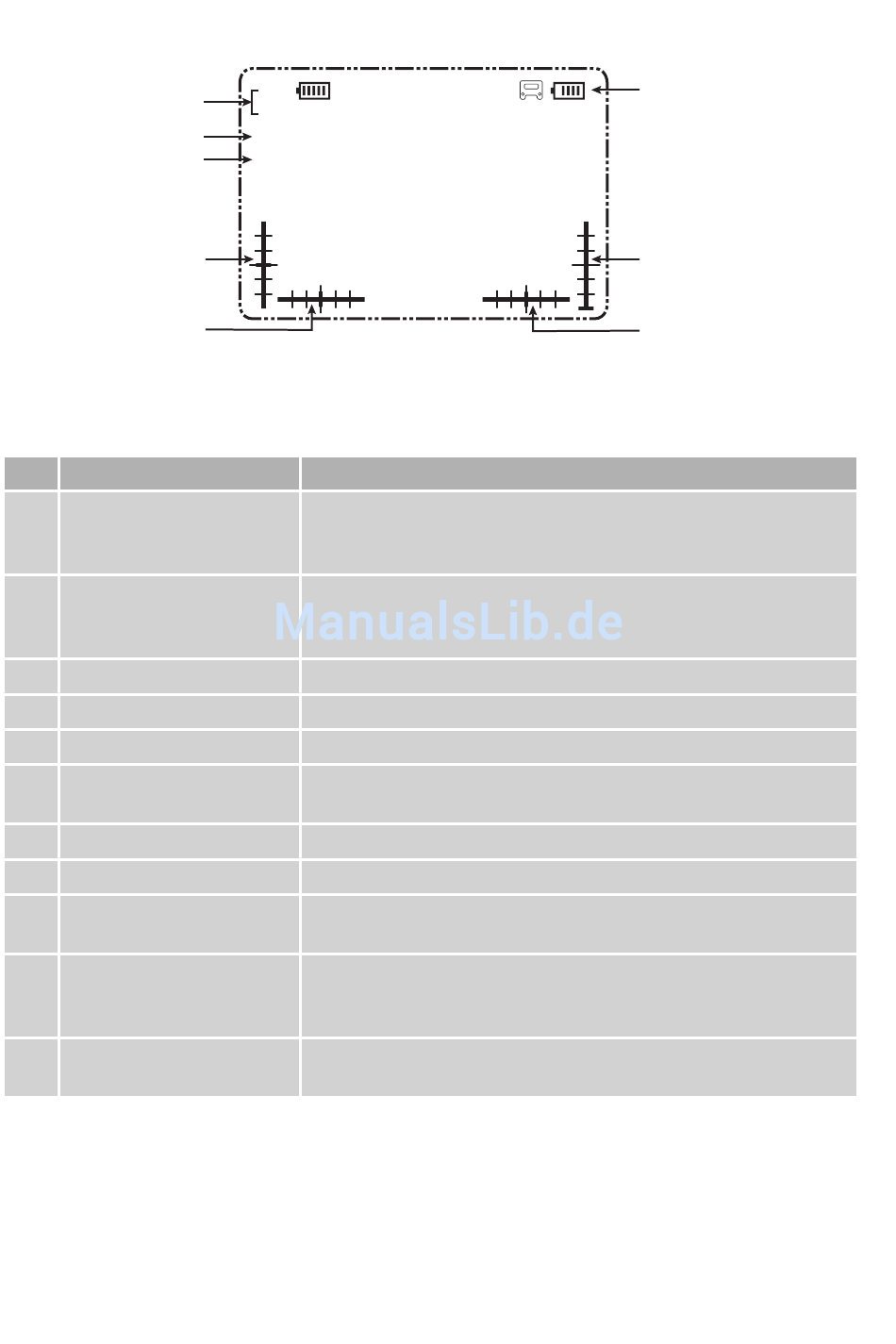

a) LC-display and transmitter control functions

Battery voltage
Roll value
Pitch value

Throttle trim

Rudder trim
Fig. 7
Transmitter controls
Item Button/control
11 Throttle/rudder control stick
18 Elevator/aileron control stick
16 Aileron trim
17 Elevator trim
13 Rudder trim
12 Throttle trim
6 ON/OFF Switch
3 Photo
8 Video
10 Mini-USB socket
2 Video glasses socket
X4
8.2V
RECORD
R 1
P 0
H 0
Function
Push the stick forward or backward and the quadrocopter will ascend
or descend. Push the stick left or right and the quadrocopter will rotate
counter clockwise or clockwise.
Push the stick forward or backward and the quadrocopter will fly forward
or backward. Push the stick left or right and the quadrocopter will fly left
or right.
Aileron trim adjusts for left and right drift.
Elevator trim adjusts for forward and backward drift.
Rudder trim adjusts for drift of left and right rotation or yaw.
Throttle trim normally left at neutral. Long press Lower throttle trim can
switch the front LED on / off.
Push to ON to turn on the transmitter. Push to OFF to turn off.
Press photo button to shoot a photo.
Press video button to start recording a video. Press again to stop the
recording. Photo is not permitted while recording video.
Only for service engineer to upgrade the software. Do not use this USB-
port to connect a computer or other devices. Otherwise damage may
occur.
Connect video glasses (video glasses are not included in delivery
content). Suitable brands are FatShark and Hubsan.
Transmitter
Battery voltage
Elevator trim
Aileron trim
