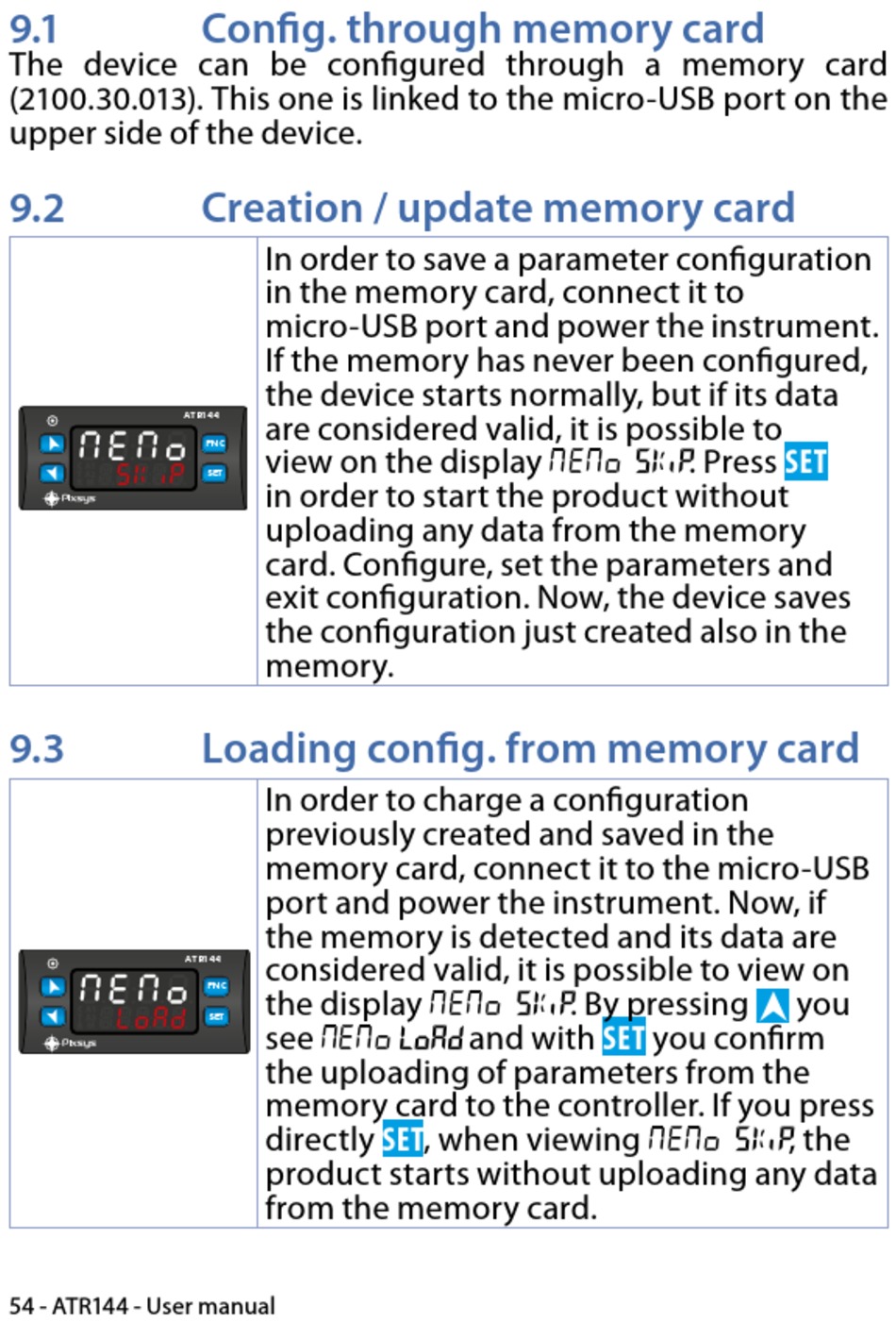

9.1
The device can be configured through a memory card
(2100.30.013). This one is linked to the micro-USB port on the
upper side of the device.
9.2
9.3
54 - ATR144 - User manual

Config. through memory card

Creation / update memory card

In order to save a parameter configuration
in the memory card, connect it to
micro-USB port and power the instrument.
If the memory has never been configured,
the device starts normally, but if its data
ATR144 are considered valid, it is possible to
FNC
view on the display memo skip . Press
SET
in order to start the product without
uploading any data from the memory
card. Configure, set the parameters and
exit configuration. Now, the device saves
the configuration just created also in the
memory.

Loading config. from memory card

In order to charge a configuration
previously created and saved in the
memory card, connect it to the micro-USB
port and power the instrument. Now, if
the memory is detected and its data are
considered valid, it is possible to view on
ATR144
FNC
the display memo skip . By pressing
SET
see Memo Load and with
the uploading of parameters from the
memory card to the controller. If you press
directly SET, when viewing memo skip , the
product starts without uploading any data
from the memory card.

SET you confirm
SET
you
