4
Gasket for 32x74
Guarnizione per 32x74
Cod. 1600.00.082 (optional)
5
This controller has been designed and manufactured in
conformity to Low Voltage Directive 2006/95/EC, 2014/35/
EU (LVD) and EMC Directive 2004/108/EC, 2014/30/EU (EMC).
For installation in industrial environments please observe
following safety guidelines:
• Separate control line from power wires.
• Avoid proximity of remote control switches, electroma-
gnetic contactors, powerful engines.
• Avoid proximity of power groups, especially those with
phase control.
• It is strongly recommended to install adequate mains filter
on power supply of the machine where the controller is
installed.
16 - ATR144 - User manual

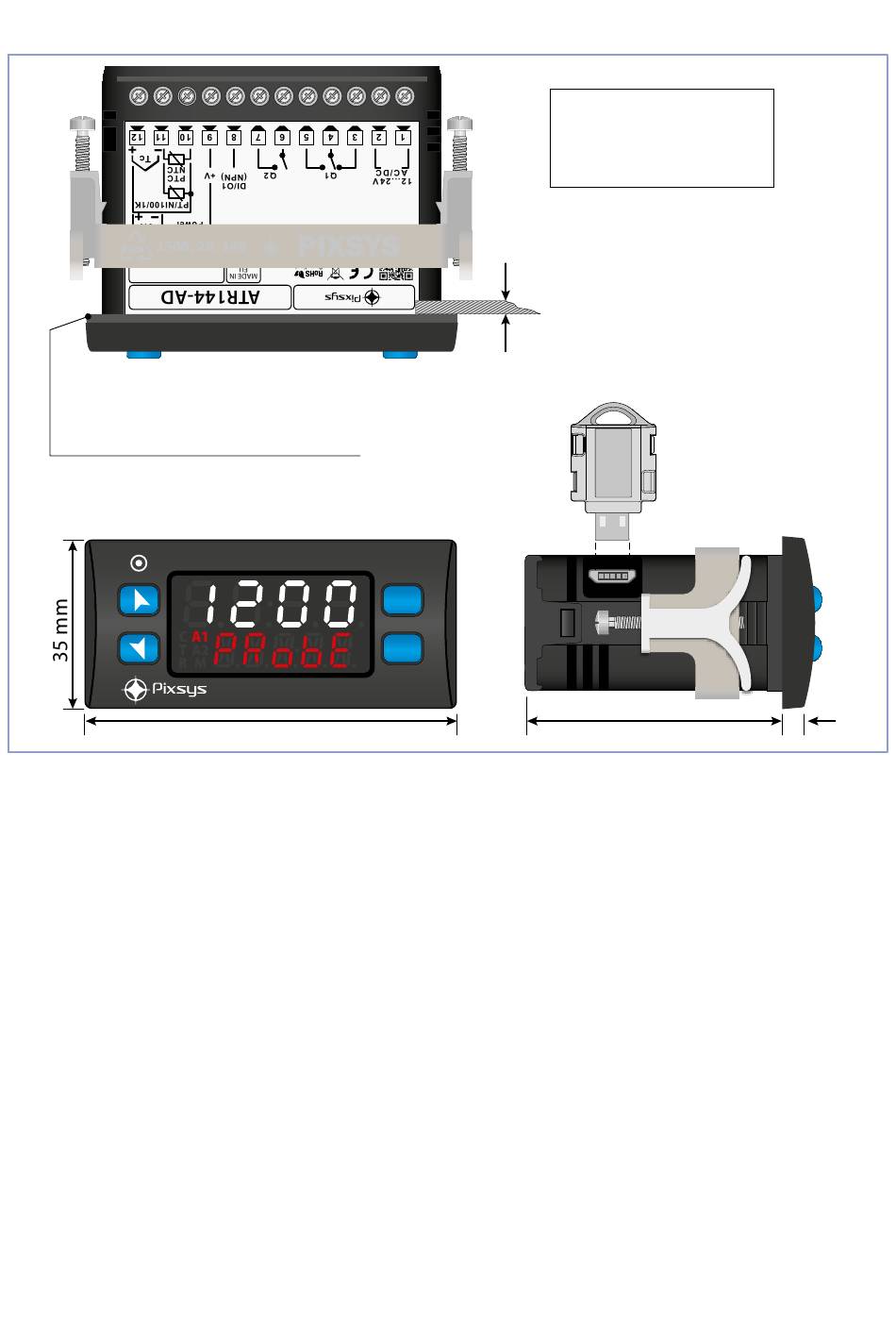

Dimensions and installation

ATR144
77 mm

Electrical wirings

FNC
SET
Frontal panel cut-out
Dima di foratura
28.5 x 70.5 mm
Suggested thickness
Spessore suggerito
2 ÷ 8 mm
Memory Card USB
(optional)
Cod. 2100.30.013
53 mm 9
