4 Installation and Commissioning

4.1

Installation of the motor spindle

• Never operate the motor spindle without the protective devices of the machine in which it is installed.
• Stop machine before installing the spindle and secure it against restarting. Secure suspended axes to
prevent sinking or changes in position.
• Connect unpressurized compressed-air lines only. Before switching on/releasing the compressed-air
supply, make sure that no one can be endangered due to unexpected movements or ejected parts.
• The motor spindle must not be put into operation when not installed.
• Operation is possible in any position from horizontal to vertical.
• For horizontal working position, the radial venting and leakage holes on the spindle must be directed
downwards.
• The motor spindle must be placed in a suitable holder (see chapter Clamping bracket). The clamping
range can be seen in the spindle sketch (see A1 Dimensional drawings).
• The motor spindle must be grounded (check grounding via connecting cable).
4.2

Connection

Connect all connectors and media supplies to the spindle.
The motor spindle is only completely protected from the ingress of dirt and water if all connections are
properly connected.
Do not bend hoses and cables. Ensure that no dirt ends up in the motor spindle or in the supply hoses.
12

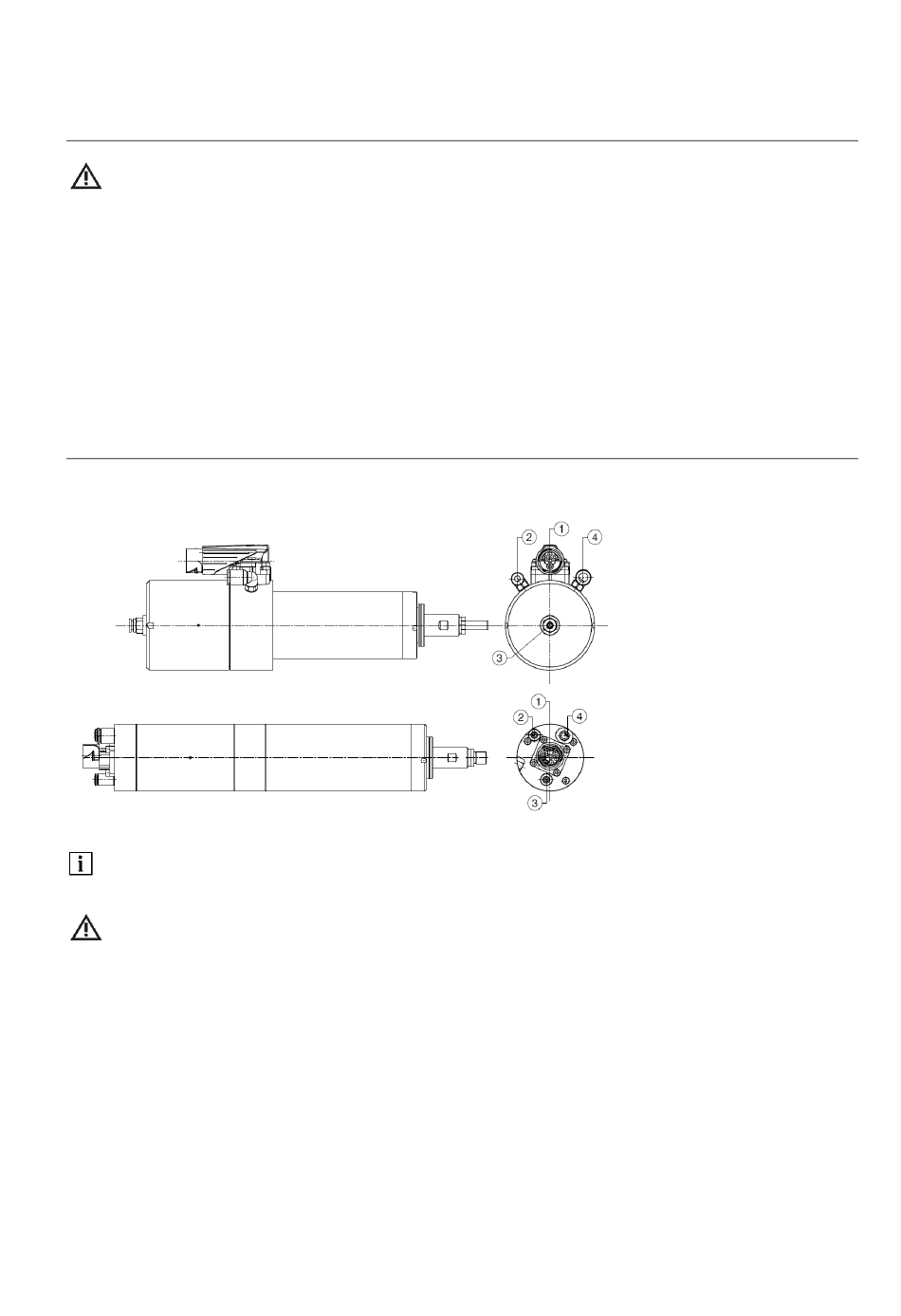

(1) Motor connection and
PTC
(2) Sealing air
(3) Tool change and cone
cleaning
(4) External tool cooling
(spray nozzles)
