3.13

Plug connector

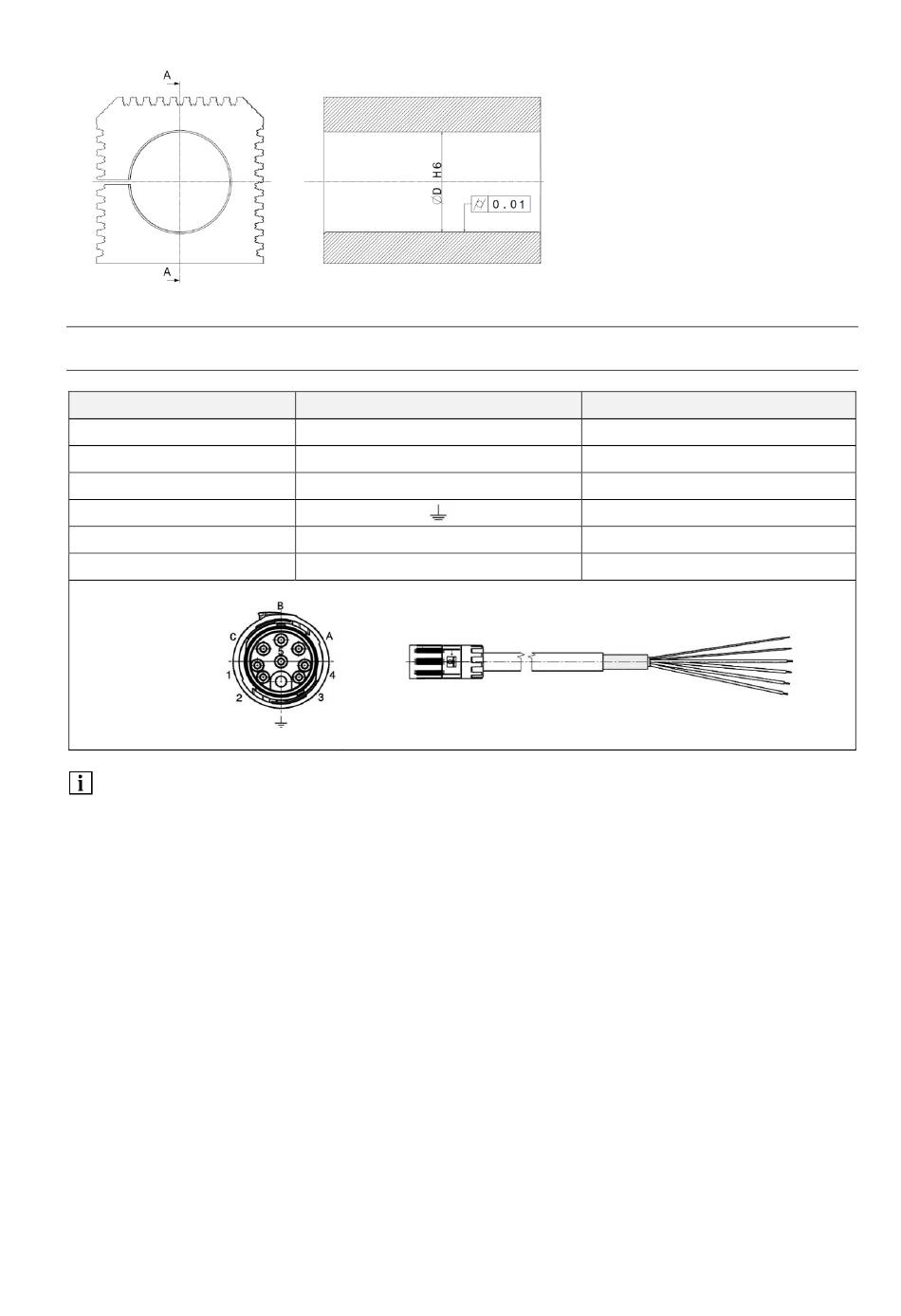

3.13.1 Layout of connector and connecting cable
Designation
Phase U
Phase V
Phase W
Protective earth PE
PTC thermistor TP-
PTC thermistor TP+
SycoTec recommends the use of the connecting cables listed in 2.2 Accessories. If the connecting cable is
to be self-manufactured, please note the layout according to the table above and contact your SycoTec
representative if you have any questions.
Plug connector 915 – Spindle
A
B
C
1
2
11
Connecting cable 915
U / L1
V / L2
W / L3
(GN/YE)
(WH)
(BK)
EN
