RS 232 - 422 Communication Descriptions

Figure 18
Figure 19

Transmission Channel Characteristics

levels:
baud rate:
character length:
parity:
stop bit:
protocoll:
In this case the value to be assigned to the ADDRESS field must be
80 hex (for RS 232 and 422 only).
Turbo-V 700 ICE Controller User Manual / 87-900-904-01 (L)

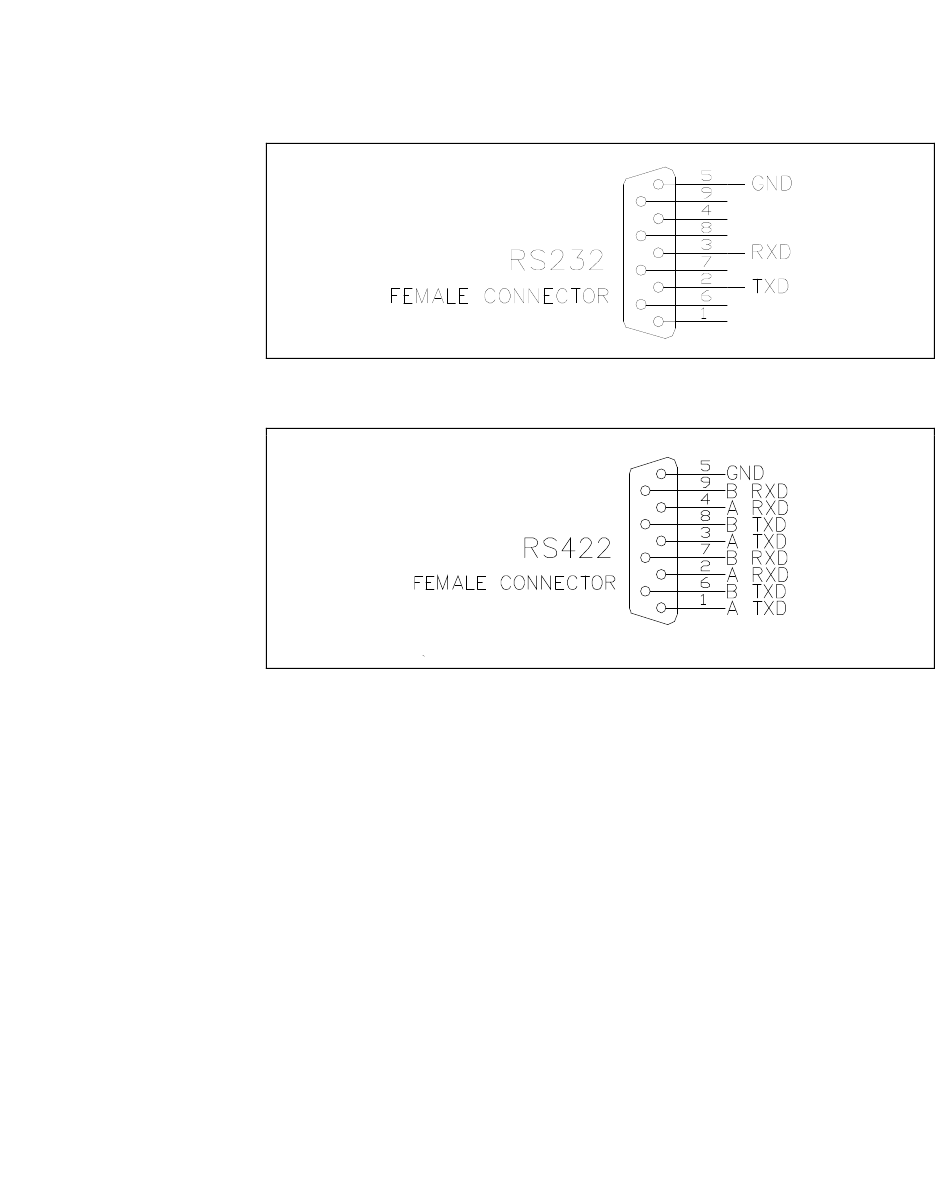

Communication RS 232 serial port connections
Communication RS 422 serial port connections
RS 232/RS 422
9600/4800/2400/1200/600
programmable
8 bits
none
1 bit
master (PC) / slave (converter)
Technical Information
Optional Serial Port
