17 Technical Information

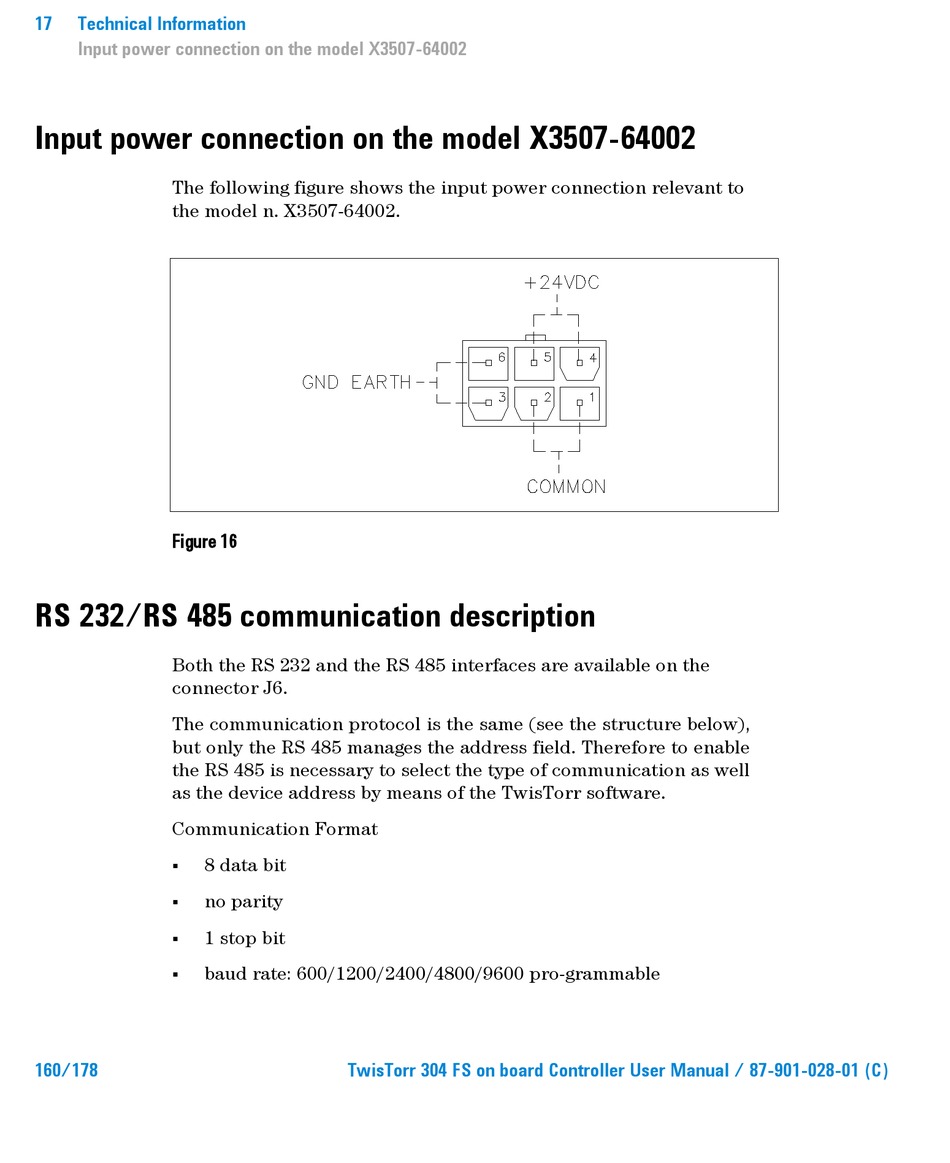

Input power connection on the model X3507-64002

Input power connection on the model X3507-64002

The following figure shows the input power connection relevant to
the model n. X3507-64002.
Figure 16

RS 232/RS 485 communication description

Both the RS 232 and the RS 485 interfaces are available on the
connector J6.
The communication protocol is the same (see the structure below),
but only the RS 485 manages the address field. Therefore to enable
the RS 485 is necessary to select the type of communication as well
as the device address by means of the TwisTorr software.
Communication Format




160/178
8 data bit
no parity
1 stop bit
baud rate: 600/1200/2400/4800/9600 pro-grammable
TwisTorr 304 FS on board Controller User Manual / 87-901-028-01 (C)
