RS 232-422 Communication Descriptions

Figure 17
Figure 18

Transmission Channel Characteristics

levels:
baud rate:
character length:
parity:
stop bit:
protocoll:
In this case the value to be assigned to the ADDRESS field must be 80
hex (for RS 232 and 422 only).
Turbo-V 2000 ICE Controller User Manual / 87-900-929-01 (L)

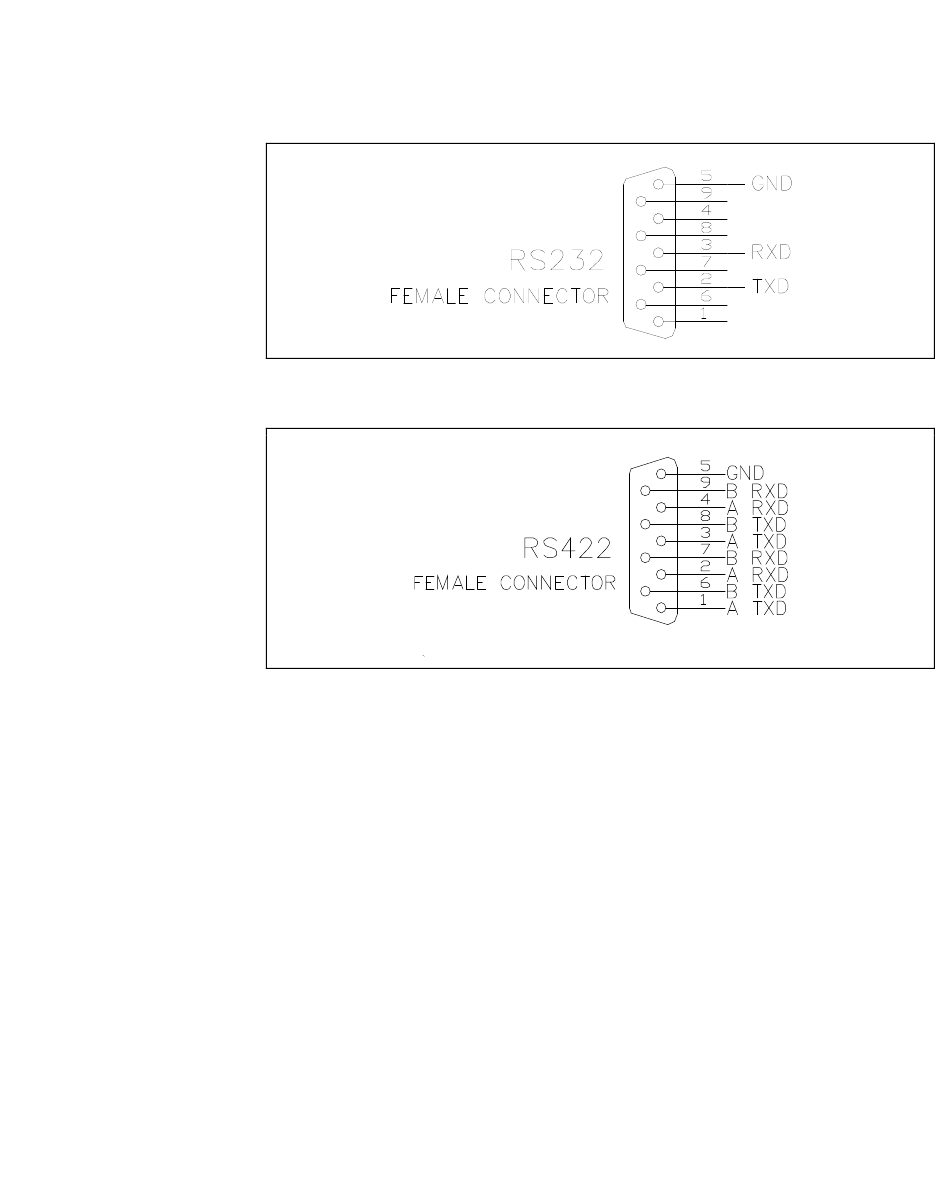

Communication RS 232 serial port connections
Communication RS 422 serial port connections
RS 232/RS 422
9600/4800/2400/1200/600 programmable
8 bits
none
1 bit
master (PC) / slave (converter)
Technical Information
Optional Serial Port
