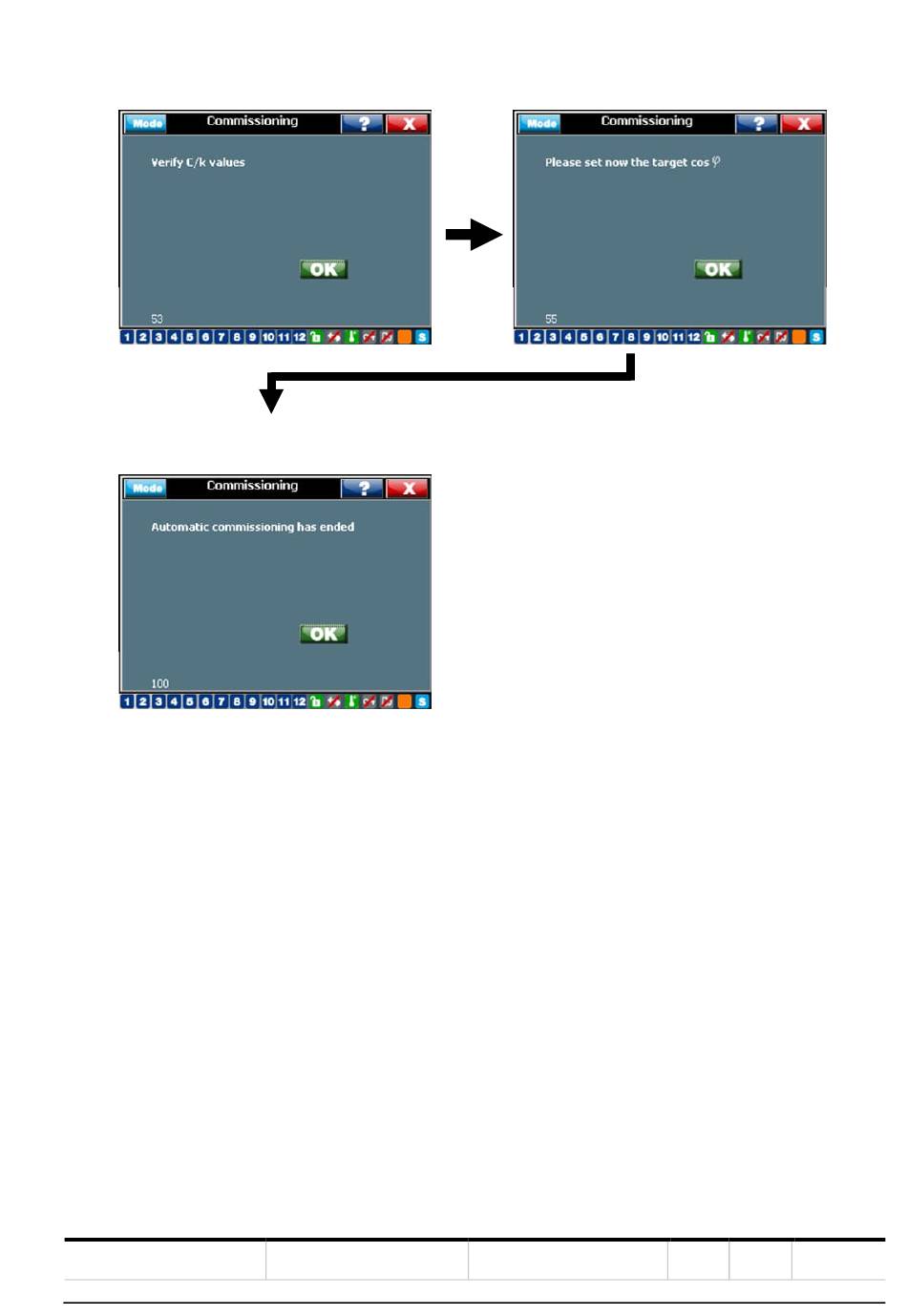

19. Click OK:
21. Automatic commissioning completed:
The above process is a typical automatic commissioning. Some setting like the CT ratio and type of connection could
be different from above inputs for each installation.
In case some errors occur during the automatic commissioning, the help info will instruct the user to identify the
causes and complete the commissioning.
4. Measurements and Settings
4.1. What this chapter contains
This chapter describes all the menus/submenus for measurements, settings, bank monitoring and communications
settings, etc.
4.2. Measurements
This main menu allows the user to see various parameters like voltage, current, power, temperature. Five submenus
are included in this main menu: Overview, System Value, Waveform, Meter and Event Logging.
RVT is very powerful in measurements and versatile on measurements display. All measurement can be shown in a
table. For waveform measurements like voltage and current, a graph display is also available. A bar chart display is
provided for all harmonics measurements.
STATUS
Approved
SECURITY LEVEL
Public
PO WER FACTO R CON TR O LL ER RV T
20. Click OK:
DOCUMENT ID
9AKK107045A9645
REV.
LANG.
PAGE
D
en
30/542
