4. The wire is properly connected.

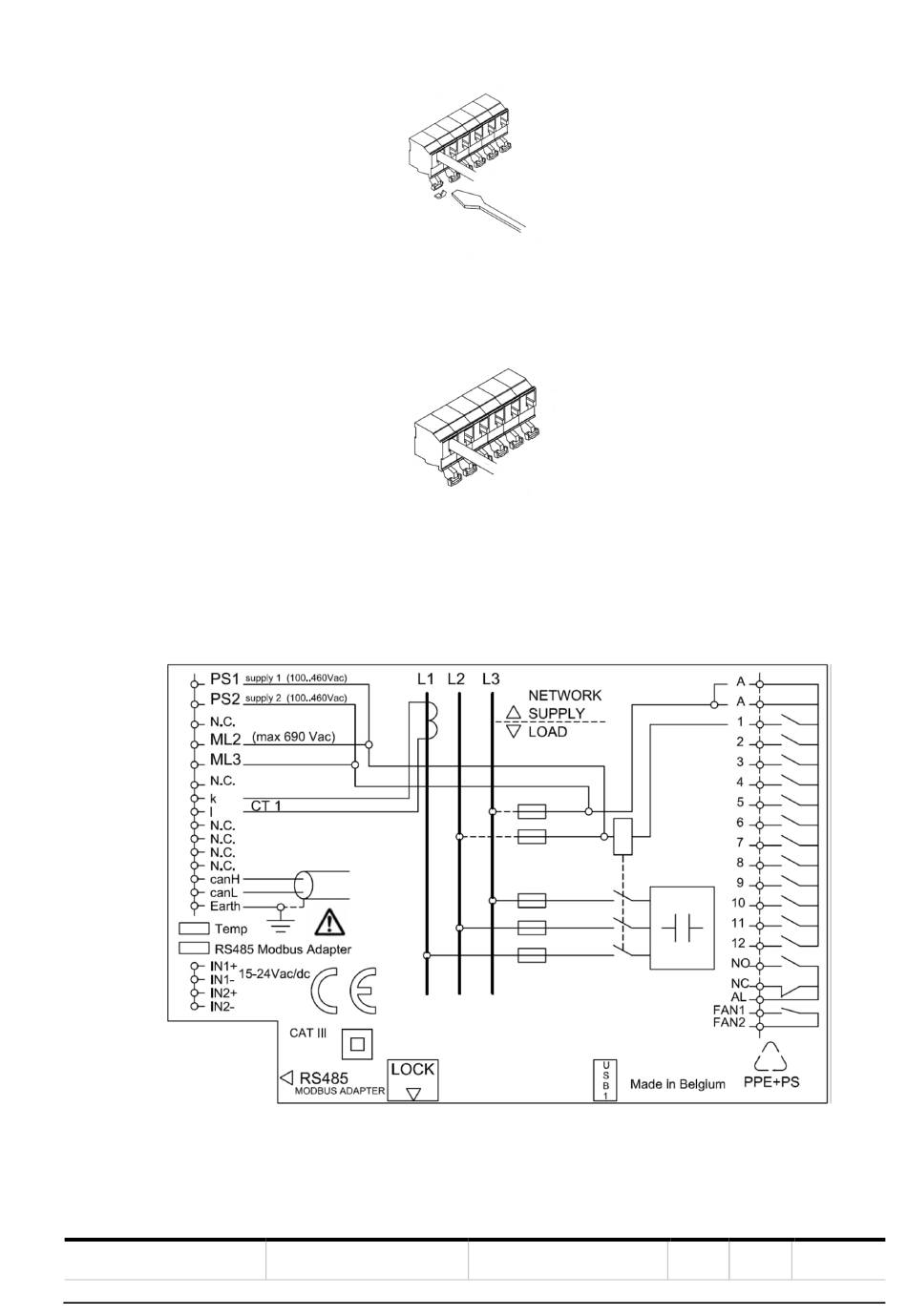

2.4. Wiring diagram
The wiring diagram shows the connection of main circuits and control circuits.
Base model RVT6/RVT12
STATUS
Approved
Figure 9: Lead connection
Figure 10: Lead connection
Figure 11: RVT wiring diagram (base model RVT6/RVT12)
