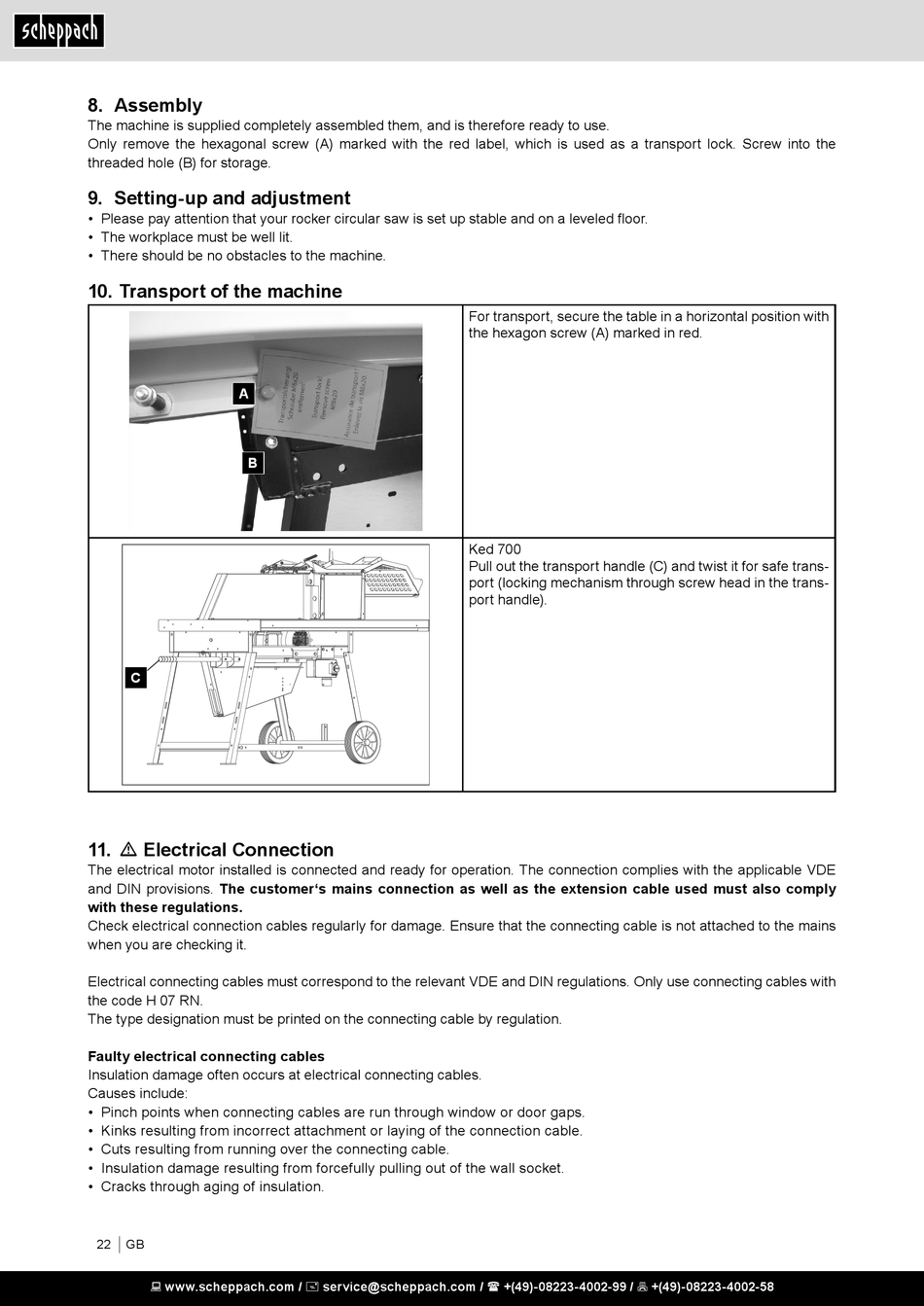

8. Assembly

The machine is supplied completely assembled them, and is therefore ready to use.
Only remove the hexagonal screw (A) marked with the red label, which is used as a transport lock. Screw into the
threaded hole (B) for storage.

9. Setting-up and adjustment

• Please pay attention that your rocker circular saw is set up stable and on a leveled floor.
• The workplace must be well lit.
• There should be no obstacles to the machine.

10. Transport of the machine

A
B
C
11. m Electrical Connection
The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE
and DIN provisions. The customer's mains connection as well as the extension cable used must also comply
with these regulations.
Check electrical connection cables regularly for damage. Ensure that the connecting cable is not attached to the mains
when you are checking it.
Electrical connecting cables must correspond to the relevant VDE and DIN regulations. Only use connecting cables with
the code H 07 RN.
The type designation must be printed on the connecting cable by regulation.
Faulty electrical connecting cables
Insulation damage often occurs at electrical connecting cables.
Causes include:
• Pinch points when connecting cables are run through window or door gaps.
• Kinks resulting from incorrect attachment or laying of the connection cable.
• Cuts resulting from running over the connecting cable.
• Insulation damage resulting from forcefully pulling out of the wall socket.
• Cracks through aging of insulation.
22 GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
For transport, secure the table in a horizontal position with
the hexagon screw (A) marked in red.
Ked 700
Pull out the transport handle (C) and twist it for safe trans-
port (locking mechanism through screw head in the trans-
port handle).
