INSTALLATION

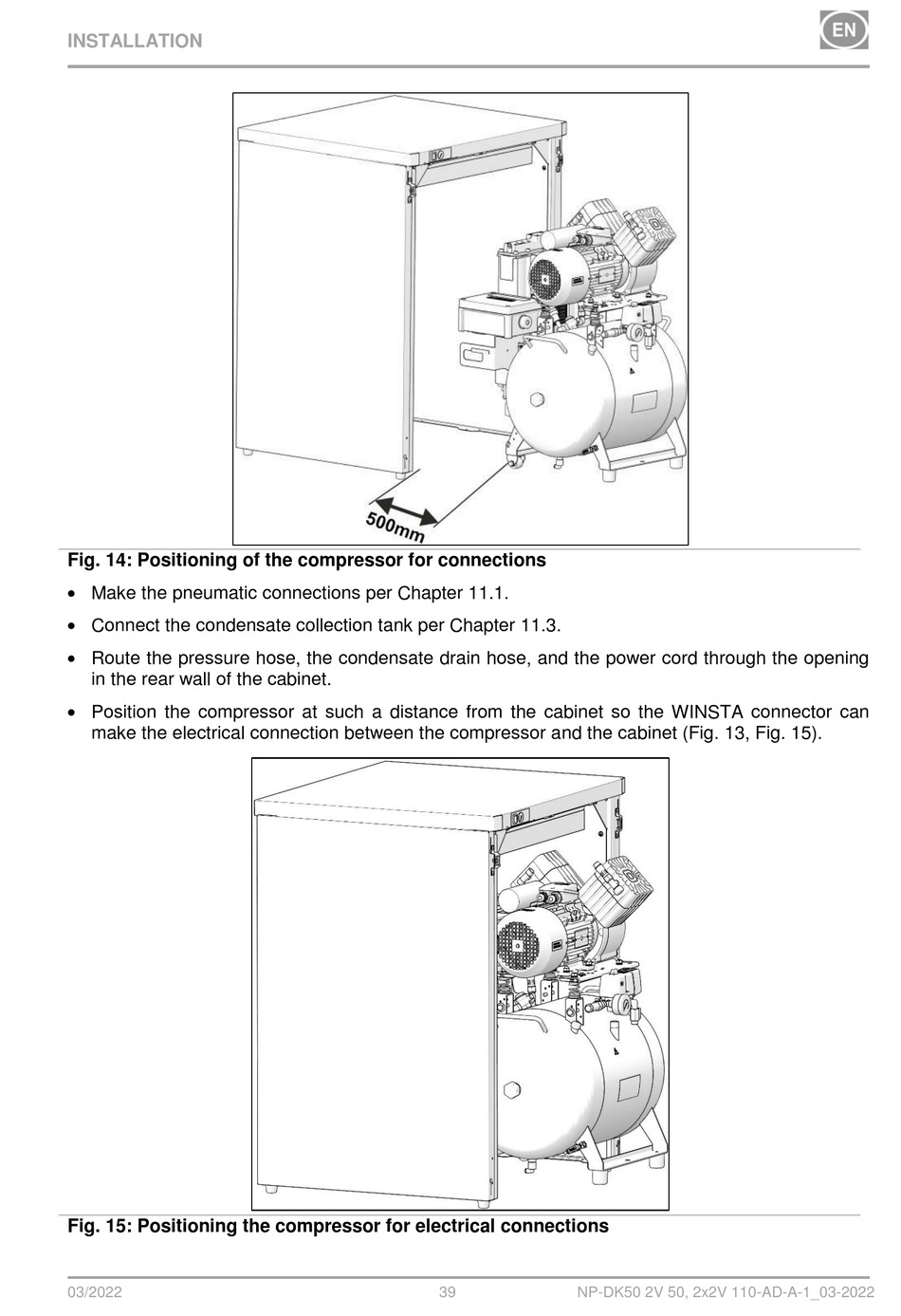

Fig. 14: Positioning of the compressor for connections
 Make the pneumatic connections per Chapter 11.1.
 Connect the condensate collection tank per Chapter 11.3.
 Route the pressure hose, the condensate drain hose, and the power cord through the opening
in the rear wall of the cabinet.
 Position the compressor at such a distance from the cabinet so the WINSTA connector can
make the electrical connection between the compressor and the cabinet (Fig. 13, Fig. 15).
Fig. 15: Positioning the compressor for electrical connections
