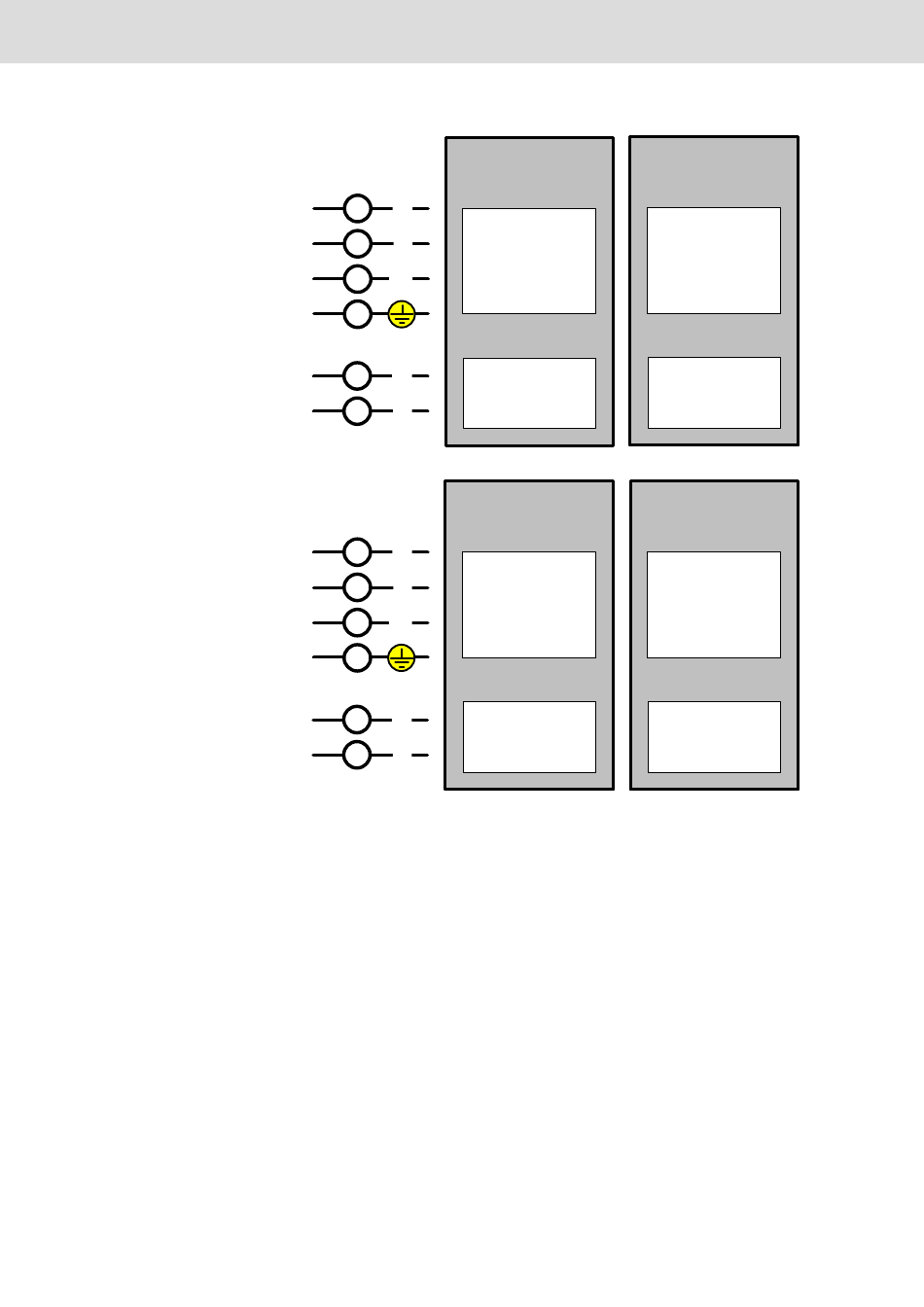

Connection Diagramm
PSI 63C0 L1 / W1
U1
Mains
V1
400VAC -
480VAC
W1
max. 50 mm
Welding
U2
Transformer
V2 max. 50 mm
PSI 62C0 W1
PSI 64C0 W1
U1
Mains
V1
400VAC -
480VAC
W1
max. 95 mm
Welding
U2
Transformer
V2
max. 95 mm
Fig.4: Mains connection
R911174196 | PSI 6xCx.766xx
PSI 63C0 L2 / W2
Mains
500VAC -
690VAC
2
max. 50 mm
Welding
Transformer
2
max. 50 mm
PSI 65C0 W1
Mains
300VAC -
480VAC
2
max. 2x120 mm
Welding
Transformer
2
max. 2x120 mm
2
2
2
2
