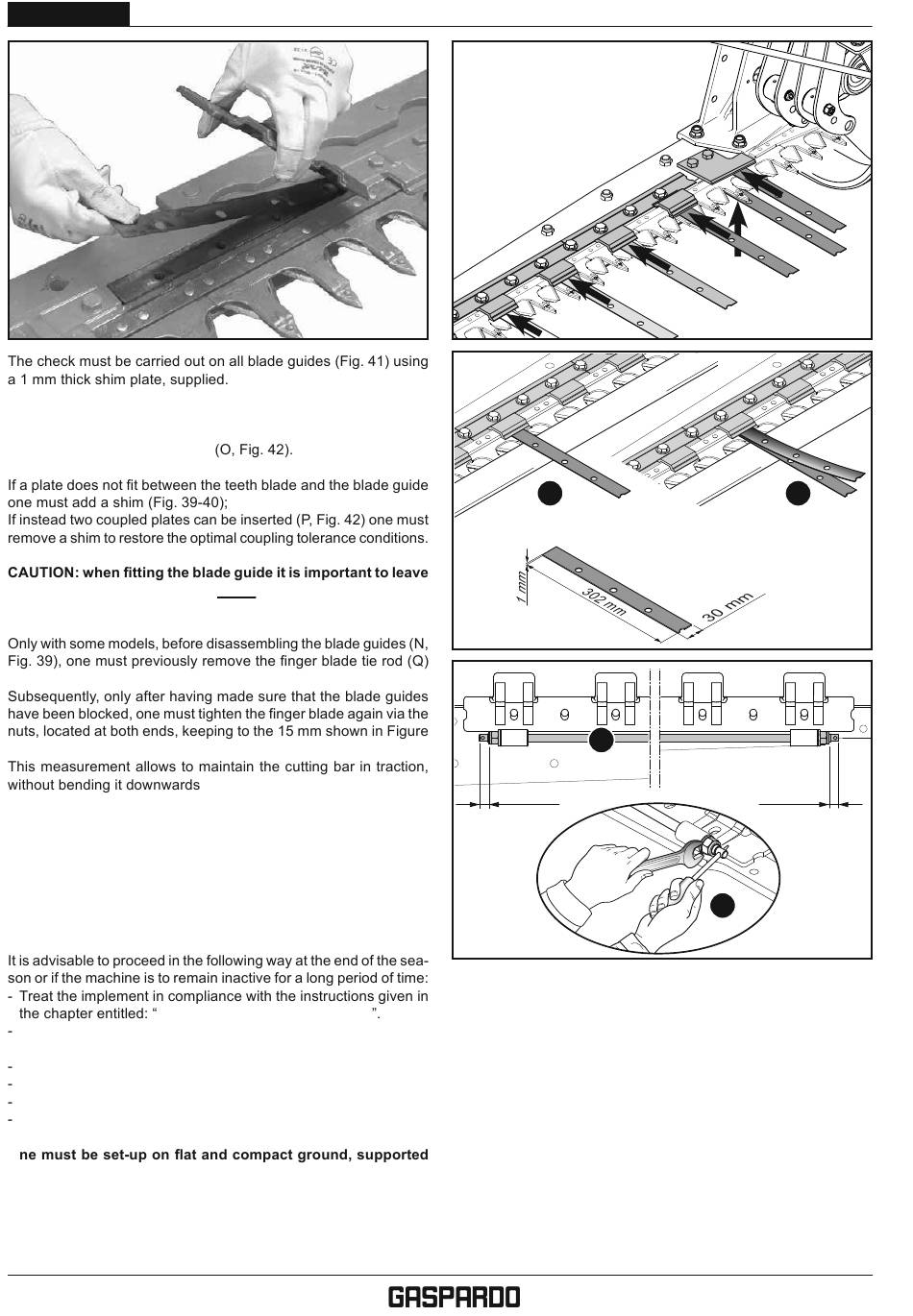

Fig. 40
Always use personal protective equipment.
The tolerance allowed for optimal coupling is determined by
the insertion of a single plate
a coupling tolerance of about 1 mm with the sections holder
rod (L, Fig. 39).
in Figure 43. Use a punch to facilitate the operation (R, Fig. 43).
43. Use a punch to facilitate the operation (R, Fig. 43).
IMPORTANT: when replacing the teeth or the tooth-holding
bar, carry out the check described above. When required, put
back the shims to avoid striation or damage.
STORAGE
Cleaning and oiling the cutters
Carefully check for any damaged or worn parts and replace
these as necessary.
Fully torque all screws and bolts.
Apply protecting oil to all unpainted parts.
Protect the equipment with a (nylon) cover.
Lastly, store the implement in a dry place where it cannot be
tampered with by unauthorized persons; the mowing machi-
by the relative bearing struts (H-I, Fig. 38).
Careful compliance with these instructions will be all to the
advantage of the user who will be sure to use an implement
in perfect conditions when work begins again.
