5.2 EXTRA MAINTENANCE
During all maintenance operations on moving parts, it is im-
starting the machine.

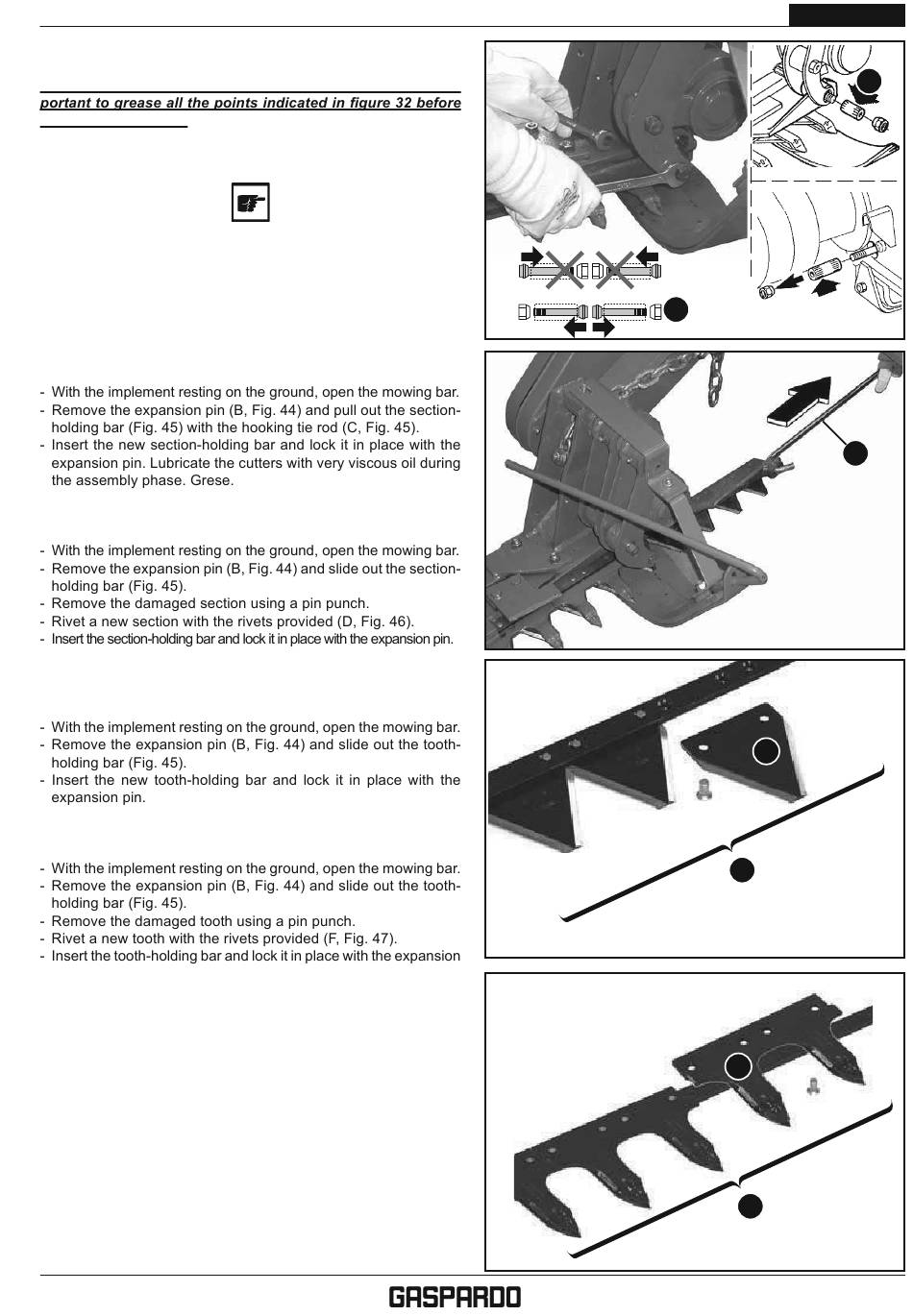

5.2.1 REPLACING THE CUTTING BLADES

IMPORTANT
The expansion pins must be reassembled as shown in Figure
44 (A), by tightening the screw and the conical nut with a torque
not exceeding 30 Nm.
Every time the expansion pins are disassembled and reassem-
bled, one must grease the blade head concerned (C, Fig. 33).
REPLACEMENT OF SECTION-HOLDING BAR (E, Fig. 46)
REPLACEMENT OF SECTIONS (D, Fig. 46)
REPLACEMENT OF TOOTH-HOLDING BAR (RIVETED)
(G Fig. 47)
REPLACEMENT OF TOOTH (RIVETED) (F Fig. 47)
