COMBICONTROL
2.3

Voltage supply and digital inputs and outputs

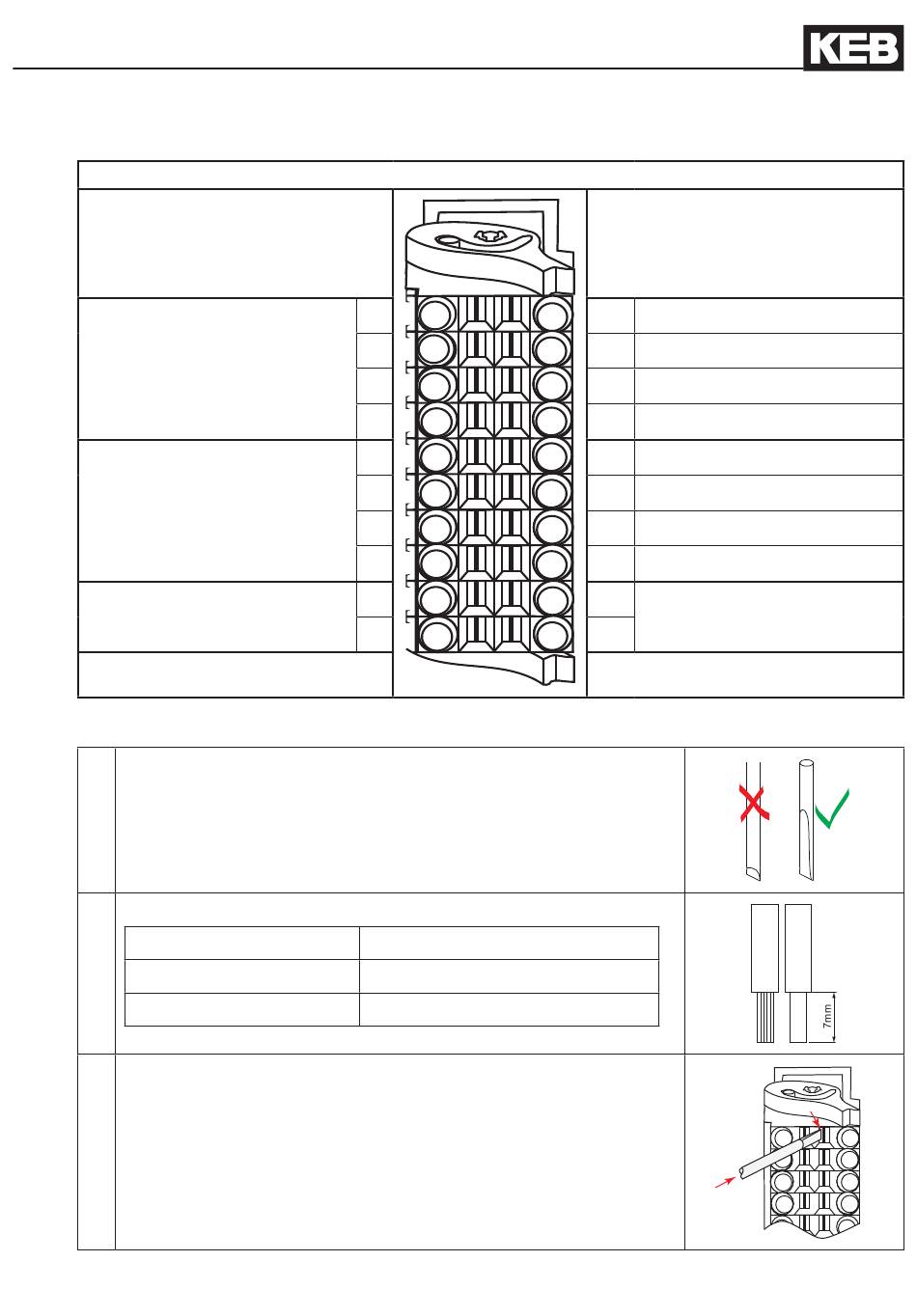

Figure 2.3 Socket X2
Voltage supply
(internally interconnected)
(internally interconnected)

2.3.1 Assembly of the wires

Required tools:
Screw driver
SD 0,4 x 2,5 (DIN 5264)
1. Strip cable
Cable
flexible
Wire-end ferrule
2. Plug screw driver into the square slot to the midside
+ Voltage input (UM)
- Voltage input (UM)
+ Voltage input (US)
- Voltage input (US)
1
2
3
4
5
6
7
8
9
10
permissible cross-section
0,2...1
mm2
0,13...0,34
mm2
Digital inputs and outputs
11
Digital input 0
12
Digital input 1
13
Digital input 2
14
Digital input 3
15
Digital output 0
16
Digital output 1
17
Digital output 2
18
Digital output 3
19
PE
20
GB - 11
