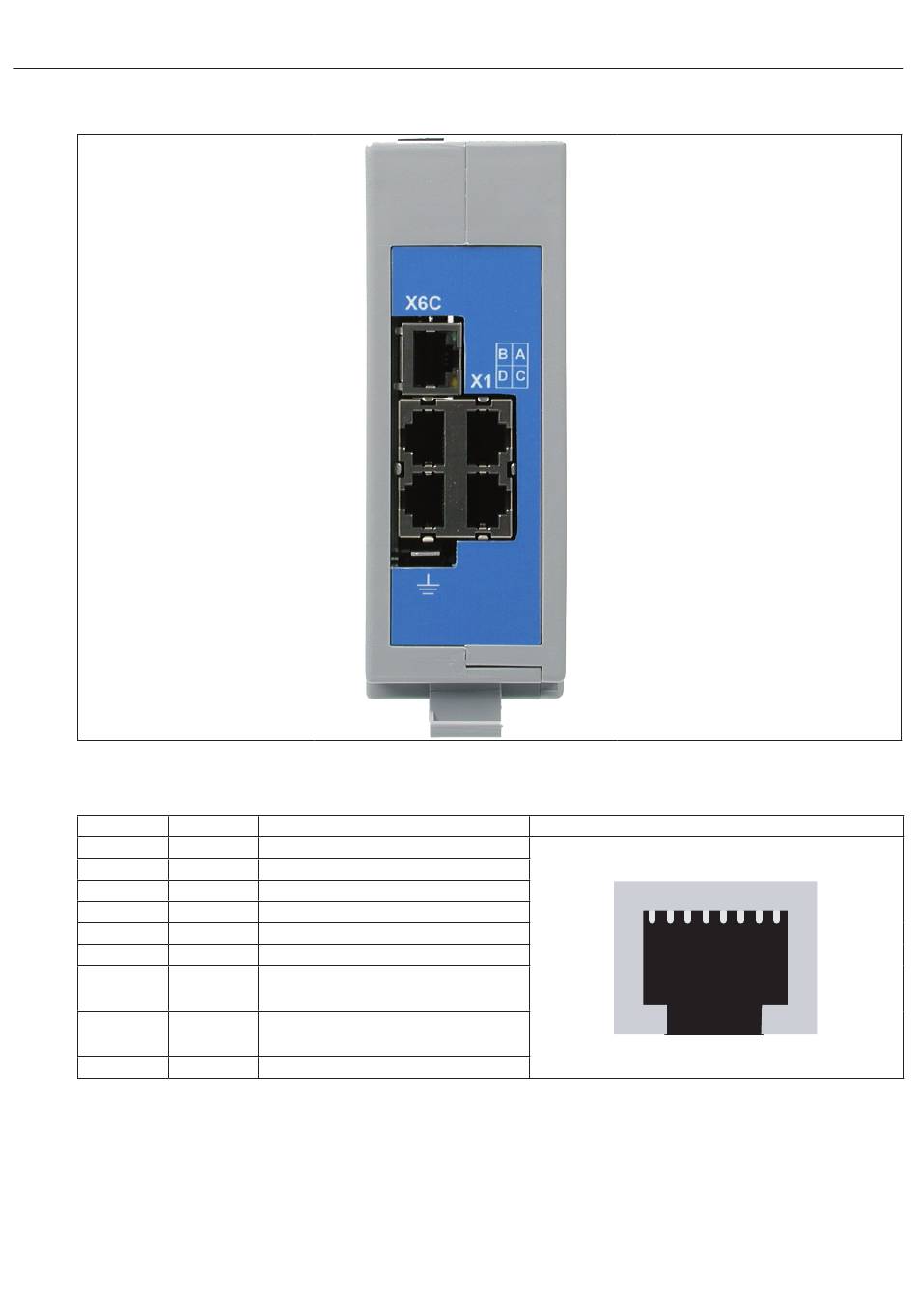

2.2.1 View of the inverter interfaces X1A...X1D for the axes 1..4

2.2.2 Assignment of the HSP5/485 interfaces

X1A...D
1
2
3
4
5
6
7 EnTXD+ Handshake transmission
8 EnTXD- Handshake transmission
- Shielding Shielding
GB - 8
X1B (axis 2) ——
X1D (axis 4) ——
Name Description
TXD+ Transmission signal+
TXD- Transmission signal-
GND Reference potential
RXD+ Receive signal+
RXD- Receive signal-
GND Reference potential
signal+
signal-
—— X1A (axis 1)
—— X1C (axis 3)
Socket (top view)
1 8
