Spare parts and accessories

90

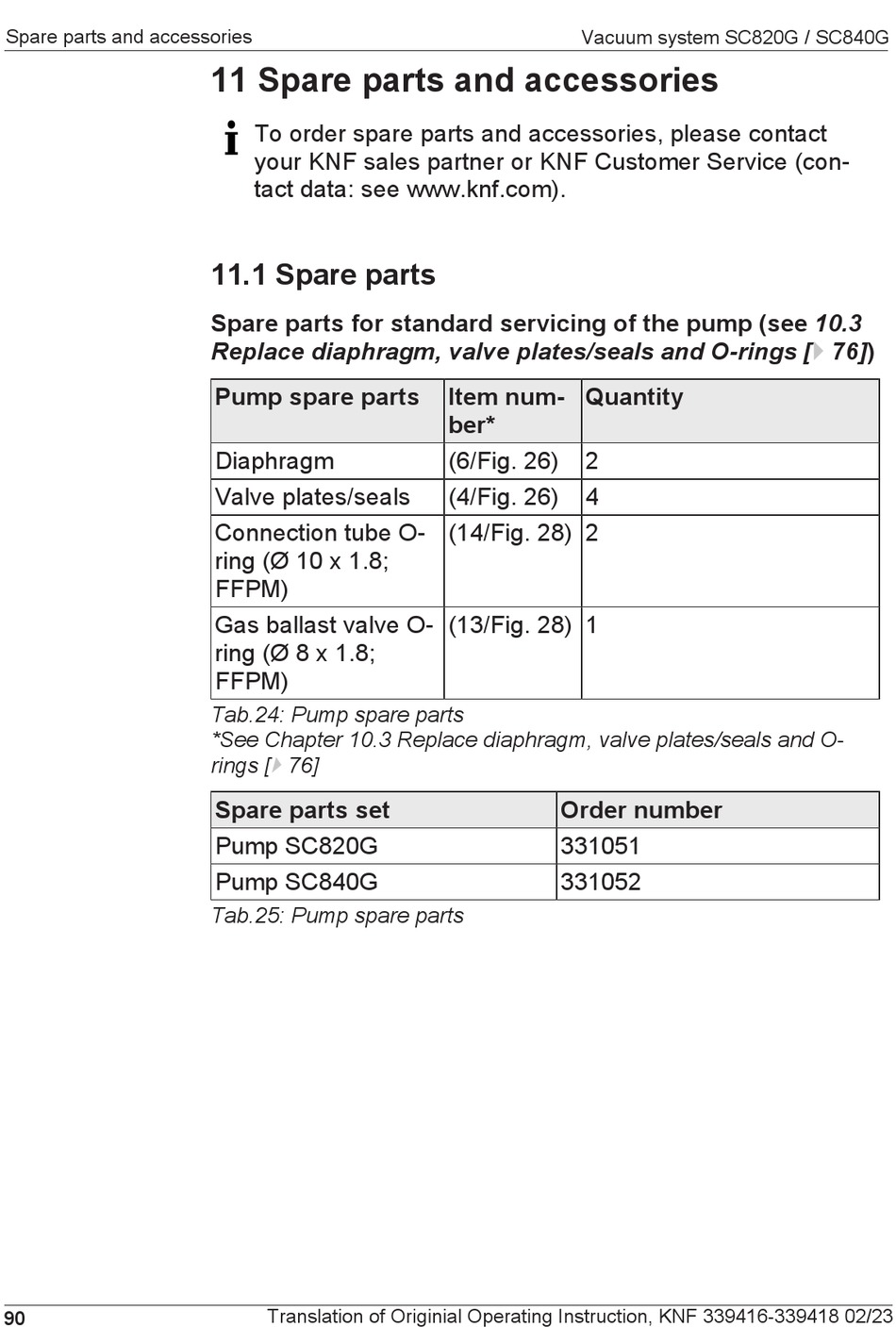

11 Spare parts and accessories
To order spare parts and accessories, please contact
your KNF sales partner or KNF Customer Service (con-
tact data: see www.knf.com).

11.1 Spare parts

Spare parts for standard servicing of the pump (see 10.3
Replace diaphragm, valve plates/seals and O-rings [} 76])
Pump spare parts
Diaphragm
Valve plates/seals
Connection tube O-
ring (Ø 10 x 1.8;
FFPM)
Gas ballast valve O-
ring (Ø 8 x 1.8;
FFPM)
Tab.24: Pump spare parts
*See Chapter 10.3 Replace diaphragm, valve plates/seals and O-
}
rings [ 76]
Spare parts set
Pump SC820G
Pump SC840G
Tab.25: Pump spare parts
Translation of Originial Operating Instruction, KNF 339416-339418 02/23
Vacuum system SC820G / SC840G
Item num- Quantity
ber*
(6/Fig. 26) 2
(4/Fig. 26) 4
(14/Fig. 28) 2
(13/Fig. 28) 1
Order number
331051
331052
