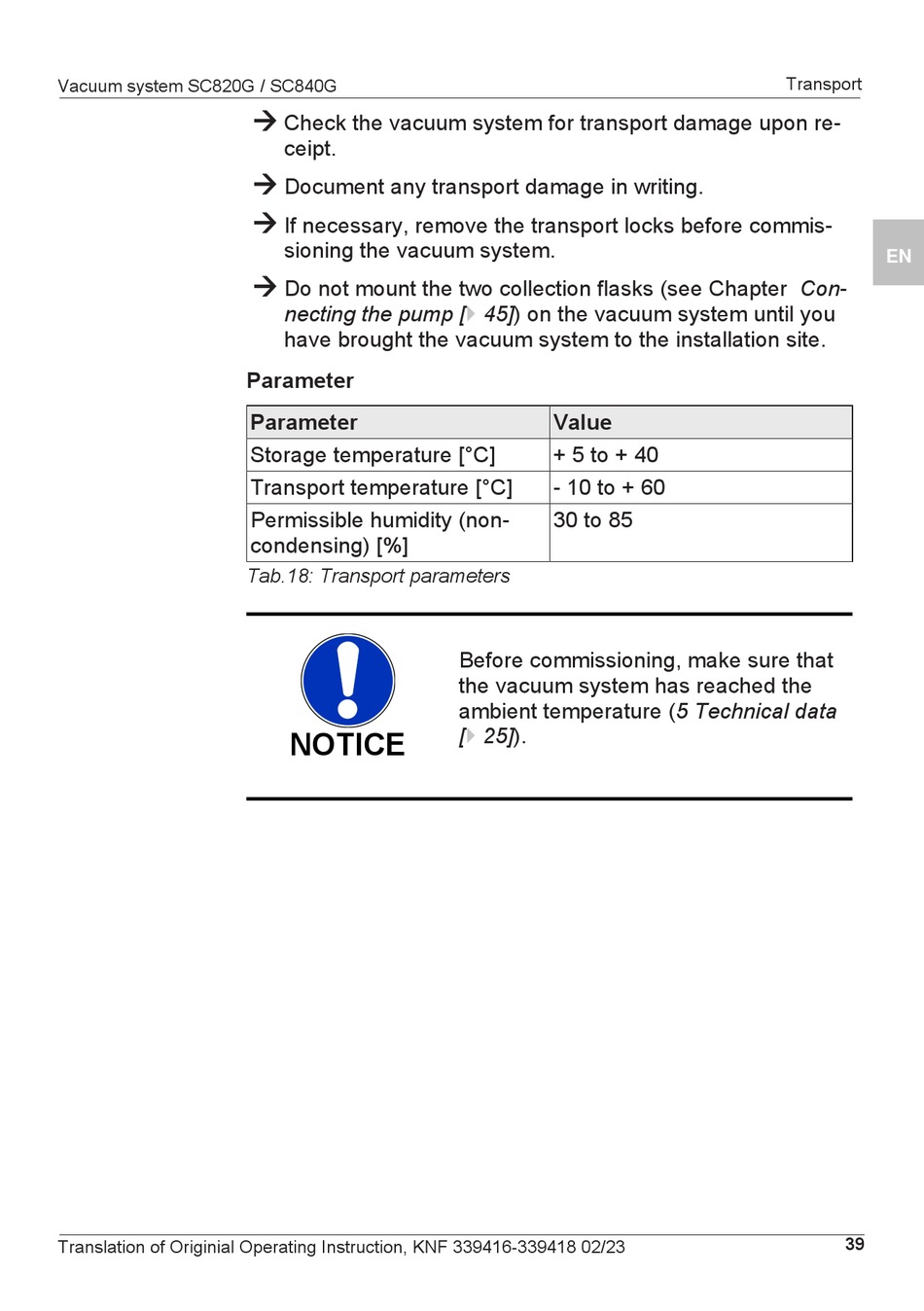

KNF LABOPORT SC820G Originalbetriebsanleitung Seite 147

Vacuum system SC820G / SC840G
Translation of Originial Operating Instruction, KNF 339416-339418 02/23
à
Check the vacuum system for transport damage upon re-
ceipt.
à
Document any transport damage in writing.
à
If necessary, remove the transport locks before commis-
sioning the vacuum system.
à
Do not mount the two collection flasks (see Chapter Con-
necting the pump [} 45]) on the vacuum system until you
have brought the vacuum system to the installation site.
Parameter
Parameter
Storage temperature [°C]
Transport temperature [°C]
Permissible humidity (non-
condensing) [%]
Tab.18: Transport parameters
NOTICE
Value
+ 5 to + 40
- 10 to + 60
30 to 85
Before commissioning, make sure that
the vacuum system has reached the
ambient temperature (5 Technical data
[} 25]).
Transport
DE
EN
FR
ES
IT
39
