Vacuum system SC820G / SC840G
1 View for en-
tering the cur-
rent reference
point
2 Changing the
reference
point table
3 Current refer-
ence point ta-
ble
Translation of Originial Operating Instruction, KNF 339416-339418 02/23
1
2
3

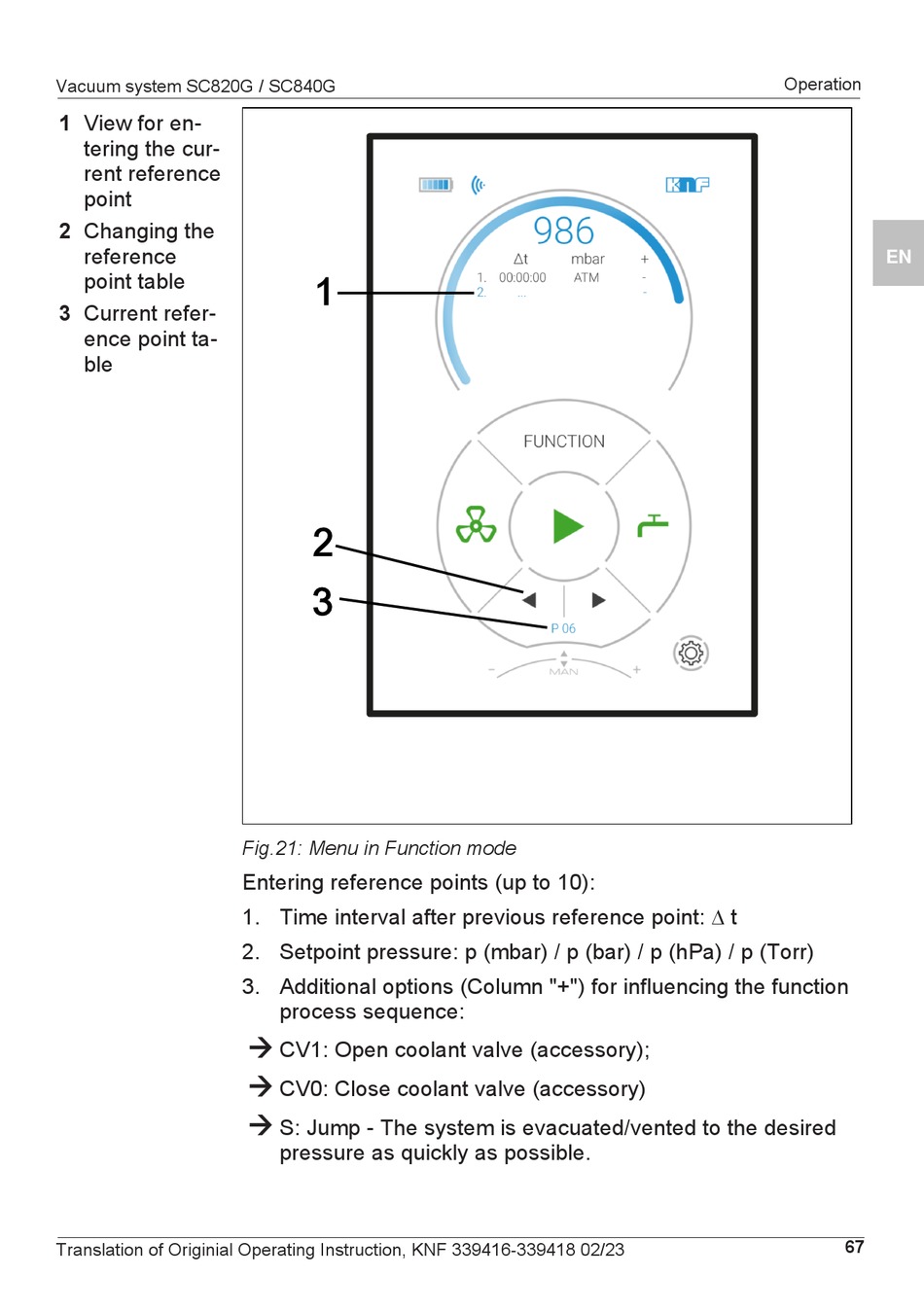

Fig.21: Menu in Function mode
Entering reference points (up to 10):
1. Time interval after previous reference point: ∆ t
2. Setpoint pressure: p (mbar) / p (bar) / p (hPa) / p (Torr)
3. Additional options (Column "+") for influencing the function
process sequence:
à
CV1: Open coolant valve (accessory);
à
CV0: Close coolant valve (accessory)
à
S: Jump - The system is evacuated/vented to the desired
pressure as quickly as possible.
