Operation; Information On Switching The Vacuum System On And Off - KNF LABOPORT SC820G Originalbetriebsanleitung

Vacuum system SC820G / SC840G
Translation of Originial Operating Instruction, KNF 339416-339418 02/23

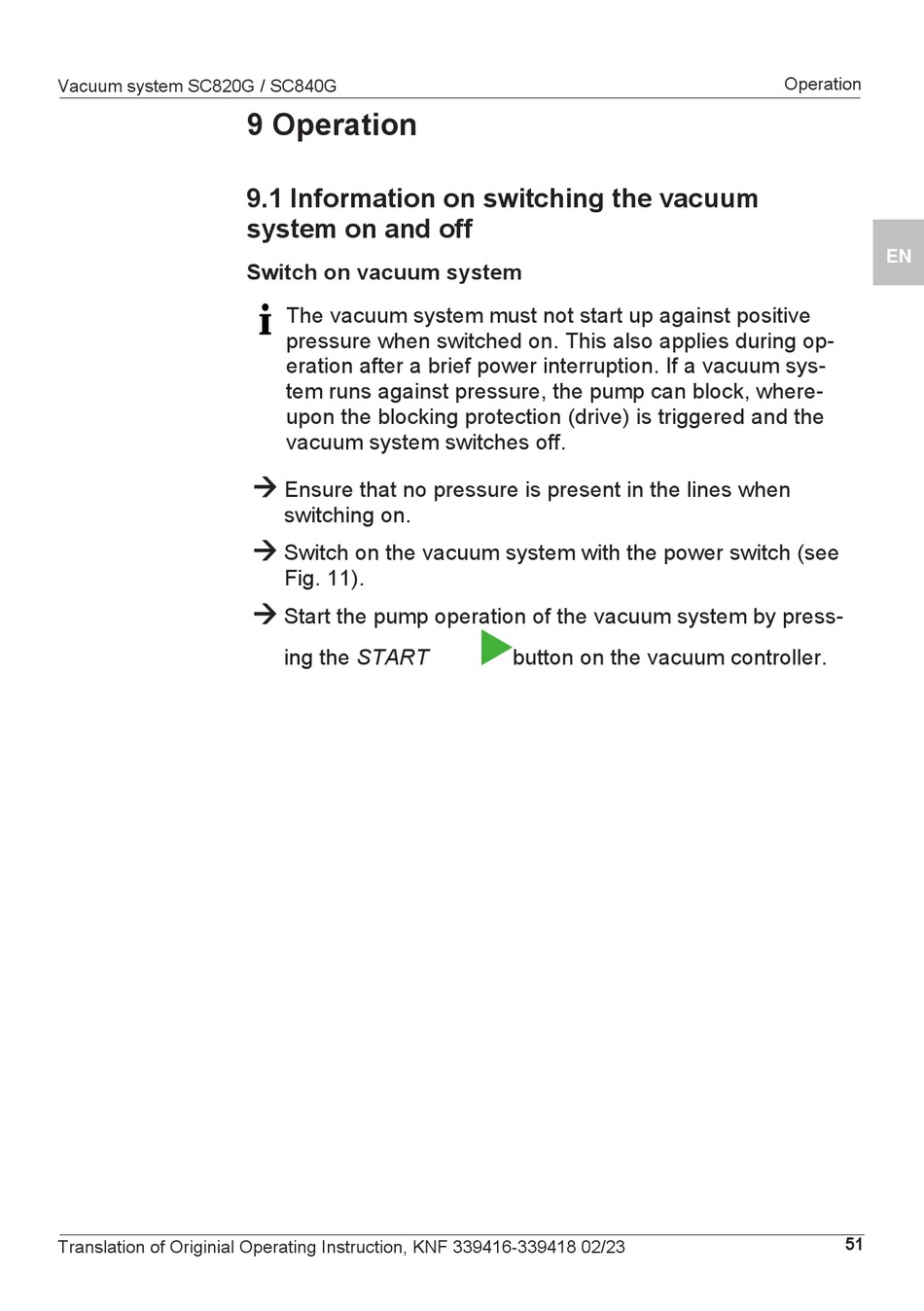

9 Operation

9.1 Information on switching the vacuum
system on and off
Switch on vacuum system
The vacuum system must not start up against positive
pressure when switched on. This also applies during op-
eration after a brief power interruption. If a vacuum sys-
tem runs against pressure, the pump can block, where-
upon the blocking protection (drive) is triggered and the
vacuum system switches off.
à
Ensure that no pressure is present in the lines when
switching on.
à
Switch on the vacuum system with the power switch (see
Fig. 11).
à
Start the pump operation of the vacuum system by press-
ing the START button on the vacuum controller.
Operation
DE
EN
FR
ES
IT
51
