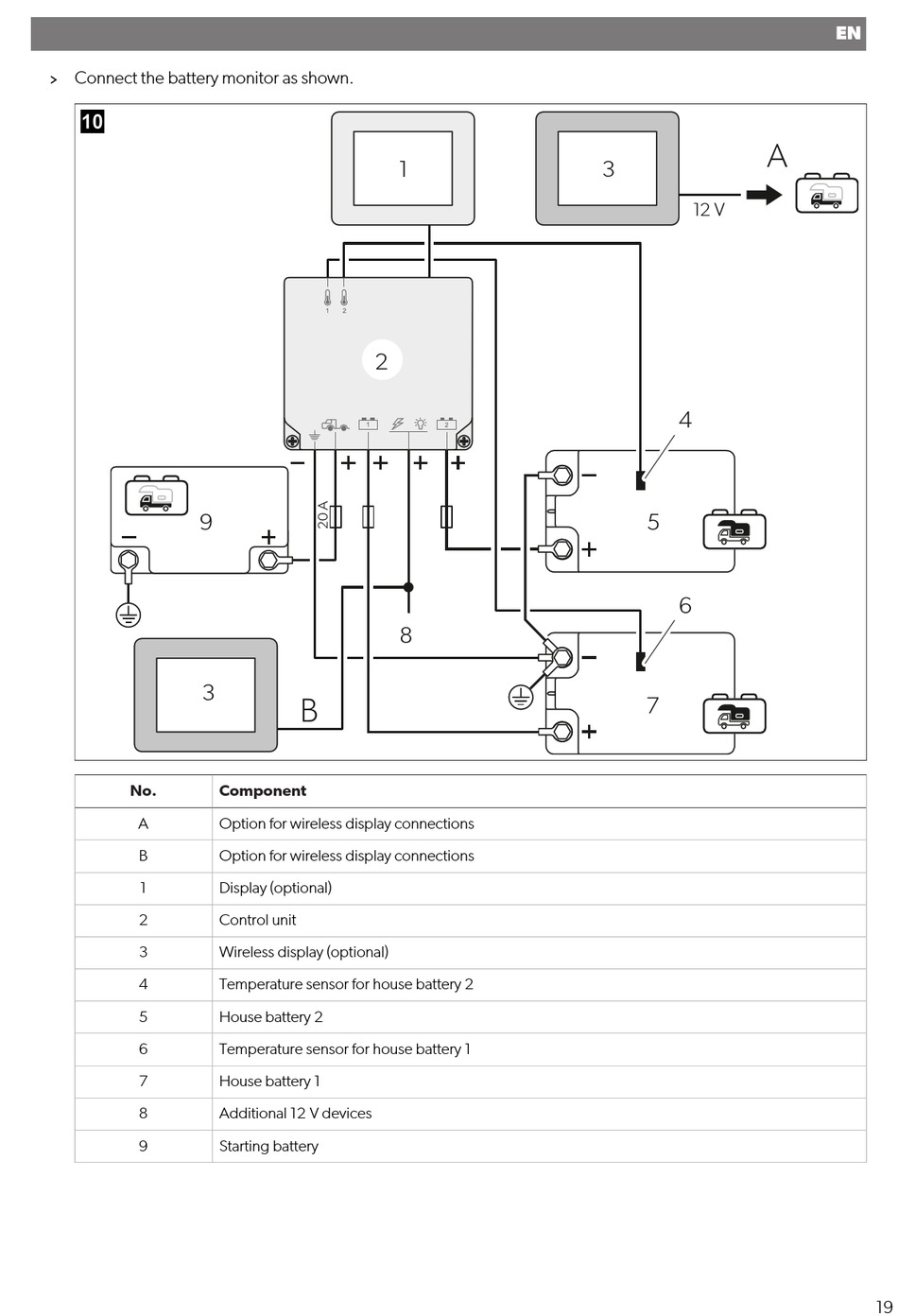

Connect the battery monitor as shown.

9
3
No.
A
B
1
2
3
4
5
6
7
8
9
2
B
Component
Option for wireless display connections
Option for wireless display connections
Display (optional)
Control unit
Wireless display (optional)
Temperature sensor for house battery 2
House battery 2
Temperature sensor for house battery 1
House battery 1
Additional 12 V devices
Starting battery
1
8
A
3
12 V
4
5
6
7
