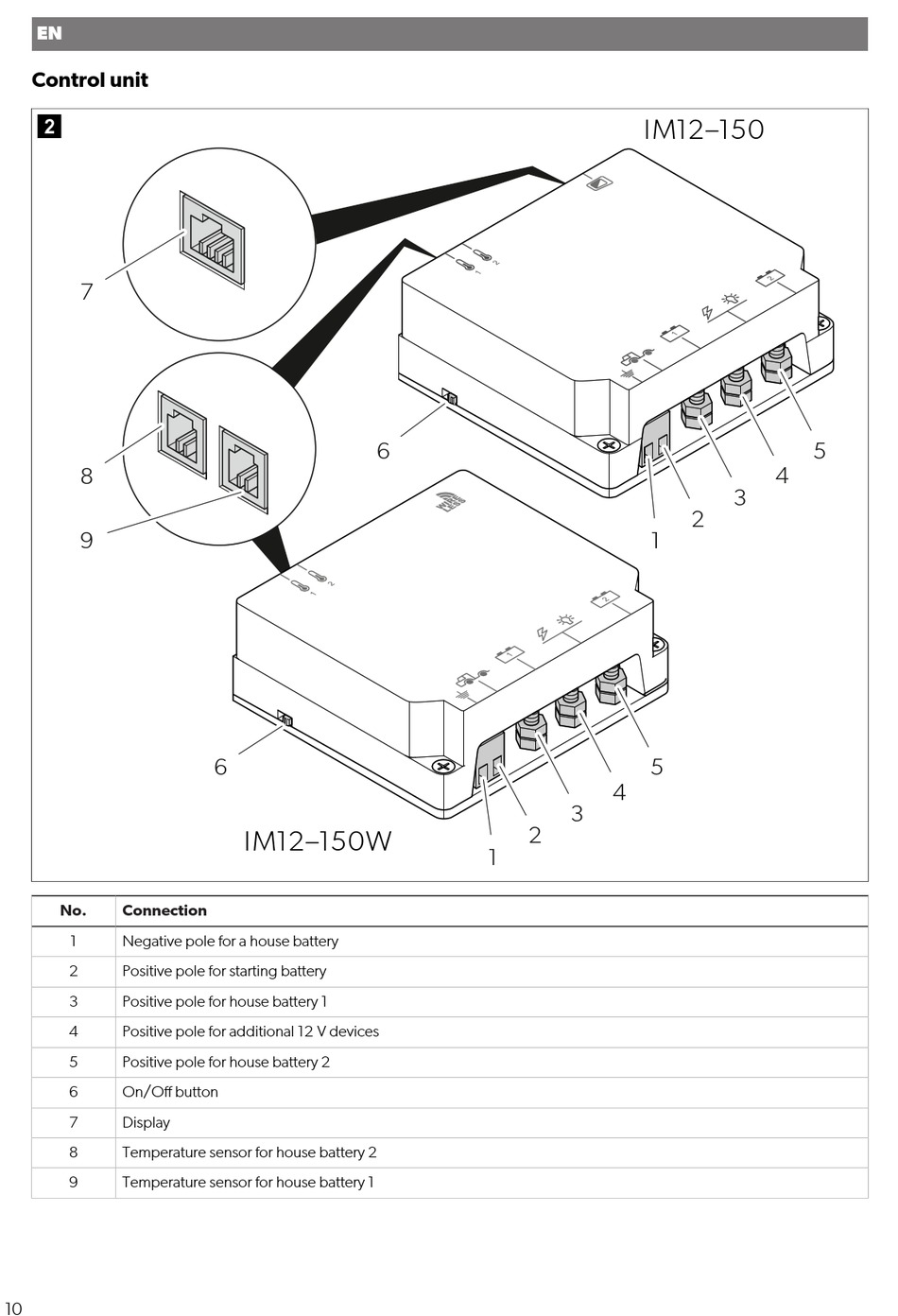

Control unit


7
8
9
No. Connection
1 Negative pole for a house battery
2 Positive pole for starting battery
3 Positive pole for house battery 1
4 Positive pole for additional 12 V devices
5 Positive pole for house battery 2
6 On/Off button
7 Display
8 Temperature sensor for house battery 2
9 Temperature sensor for house battery 1
10
6
6
IM12–150W
IM12–150
1
5
4
3
2
1
5
4
3
2
