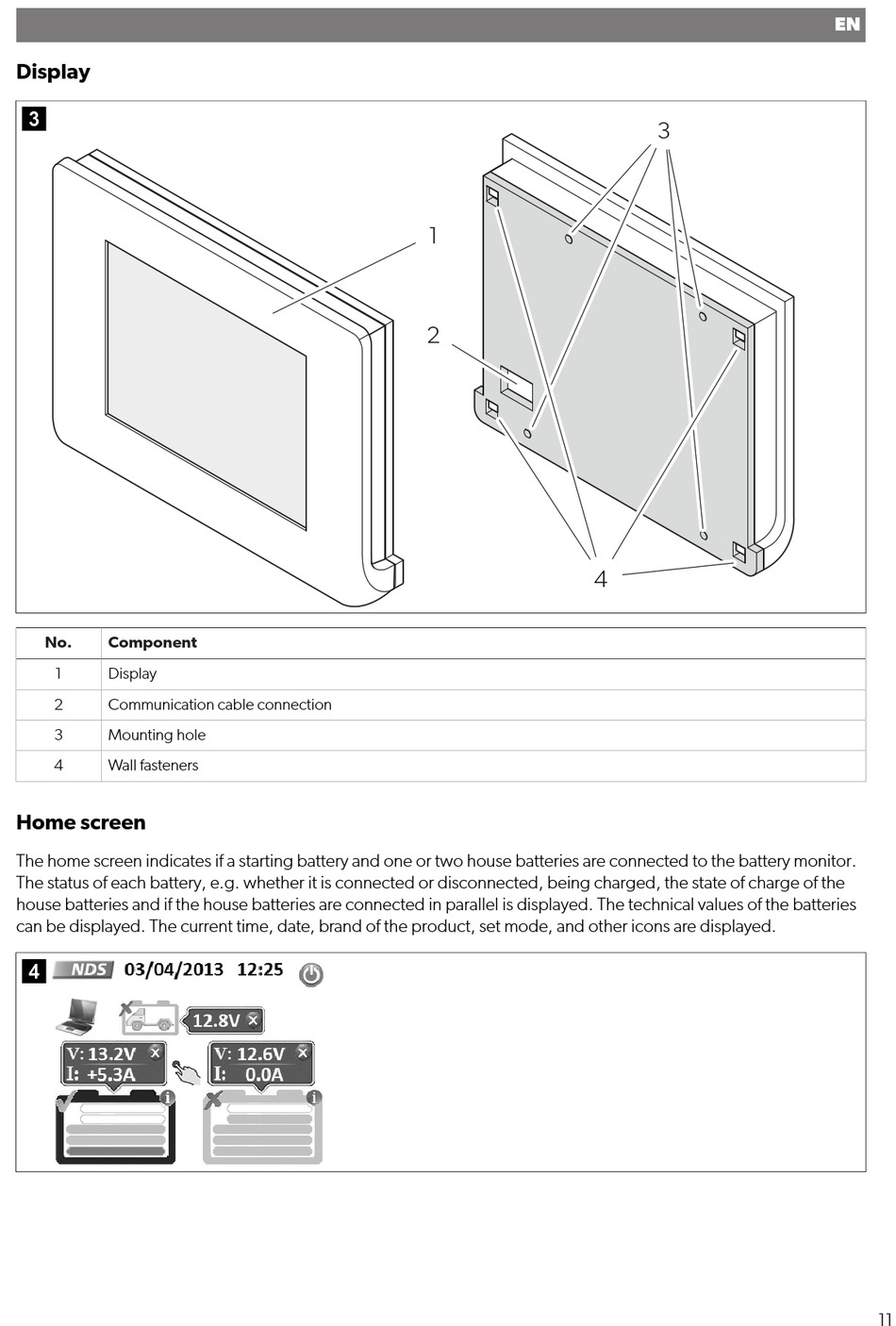

Display

No. Component
1 Display
2 Communication cable connection
3 Mounting hole
4 Wall fasteners

Home screen

The home screen indicates if a starting battery and one or two house batteries are connected to the battery monitor.
The status of each battery, e.g. whether it is connected or disconnected, being charged, the state of charge of the
house batteries and if the house batteries are connected in parallel is displayed. The technical values of the batteries
can be displayed. The current time, date, brand of the product, set mode, and other icons are displayed.

1
2
4
3
