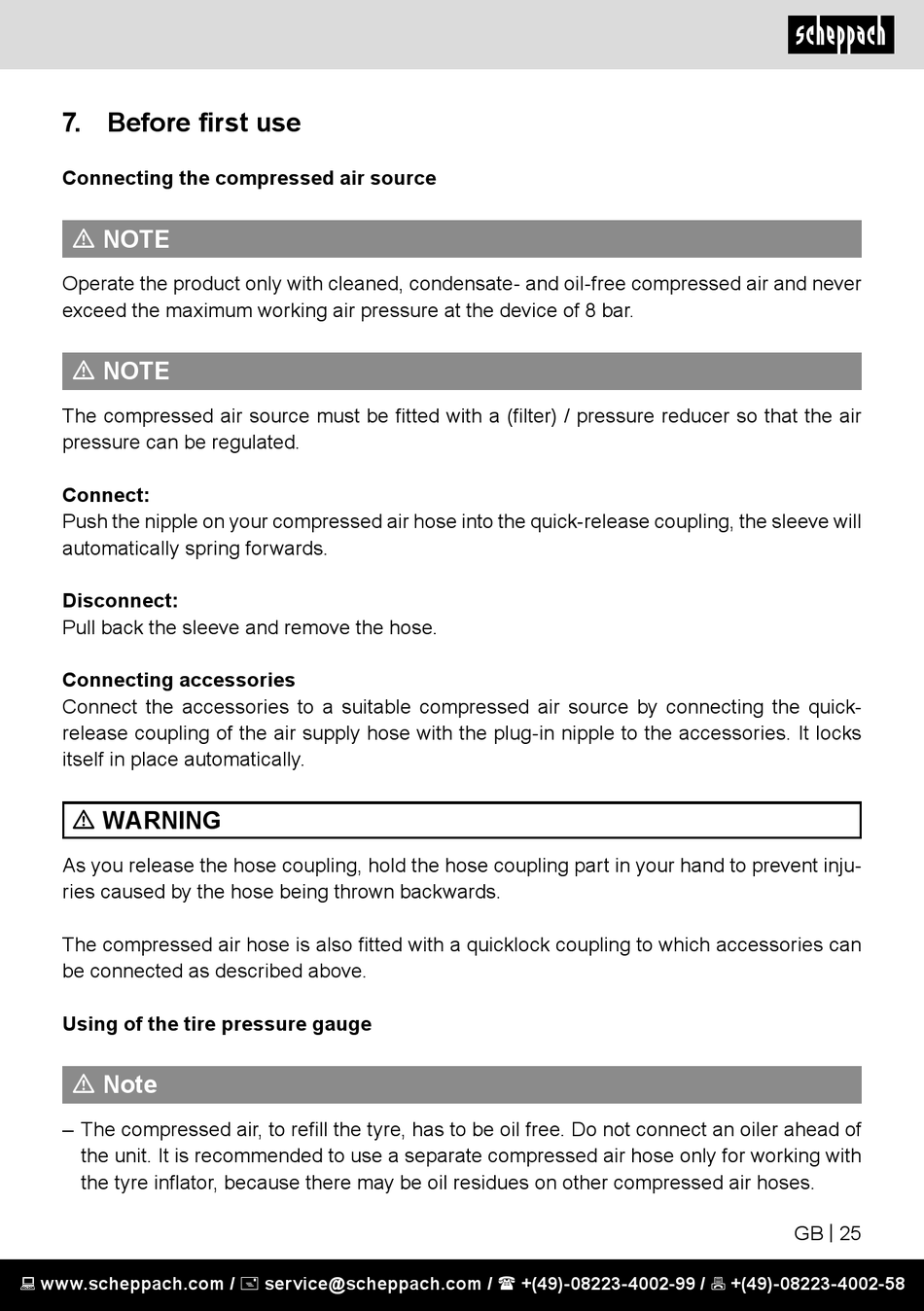

7. Before first use

Connecting the compressed air source
m NOTE
Operate the product only with cleaned, condensate- and oil-free compressed air and never
exceed the maximum working air pressure at the device of 8 bar.
m NOTE
The compressed air source must be fitted with a (filter) / pressure reducer so that the air
pressure can be regulated.
Connect:
Push the nipple on your compressed air hose into the quick-release coupling, the sleeve will
automatically spring forwards.
Disconnect:
Pull back the sleeve and remove the hose.
Connecting accessories
Connect the accessories to a suitable compressed air source by connecting the quick-
release coupling of the air supply hose with the plug-in nipple to the accessories. It locks
itself in place automatically.
m WARNING
As you release the hose coupling, hold the hose coupling part in your hand to prevent inju-
ries caused by the hose being thrown backwards.
The compressed air hose is also fitted with a quicklock coupling to which accessories can
be connected as described above.
Using of the tire pressure gauge
m Note
– The compressed air, to refill the tyre, has to be oil free. Do not connect an oiler ahead of
the unit. It is recommended to use a separate compressed air hose only for working with
the tyre inflator, because there may be oil residues on other compressed air hoses.
