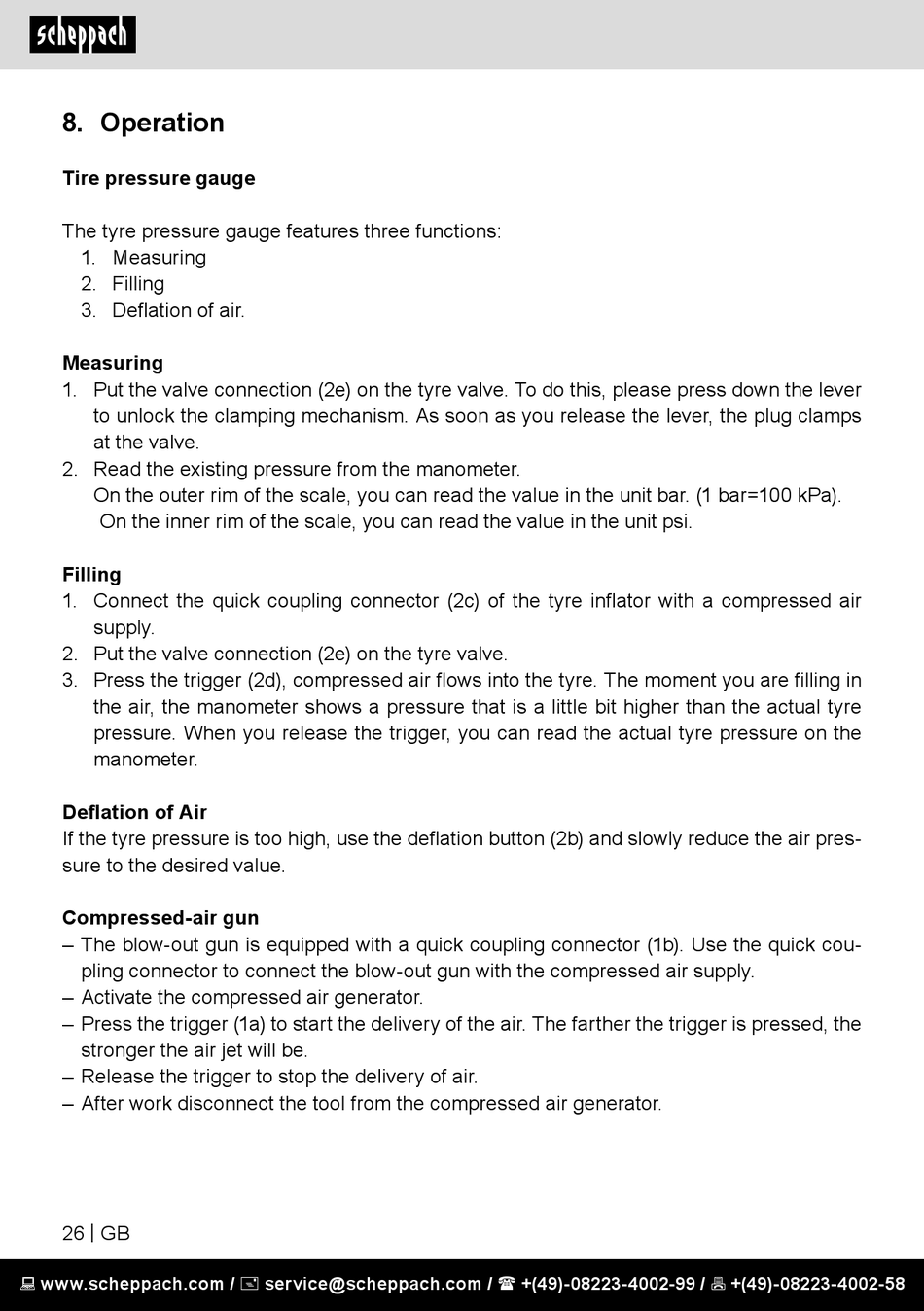

8. Operation

Tire pressure gauge
The tyre pressure gauge features three functions:
1. Measuring
2. Filling
3. Deflation of air.
Measuring
1. Put the valve connection (2e) on the tyre valve. To do this, please press down the lever
to unlock the clamping mechanism. As soon as you release the lever, the plug clamps
at the valve.
2. Read the existing pressure from the manometer.
On the outer rim of the scale, you can read the value in the unit bar. (1 bar=100 kPa).
On the inner rim of the scale, you can read the value in the unit psi.
Filling
1. Connect the quick coupling connector (2c) of the tyre inflator with a compressed air
supply.
2. Put the valve connection (2e) on the tyre valve.
3. Press the trigger (2d), compressed air flows into the tyre. The moment you are filling in
the air, the manometer shows a pressure that is a little bit higher than the actual tyre
pressure. When you release the trigger, you can read the actual tyre pressure on the
manometer.
Deflation of Air
If the tyre pressure is too high, use the deflation button (2b) and slowly reduce the air pres-
sure to the desired value.
Compressed-air gun
– The blow-out gun is equipped with a quick coupling connector (1b). Use the quick cou-
pling connector to connect the blow-out gun with the compressed air supply.
– Activate the compressed air generator.
– Press the trigger (1a) to start the delivery of the air. The farther the trigger is pressed, the
stronger the air jet will be.
– Release the trigger to stop the delivery of air.
– After work disconnect the tool from the compressed air generator.
