53
CNX Controller
Connections

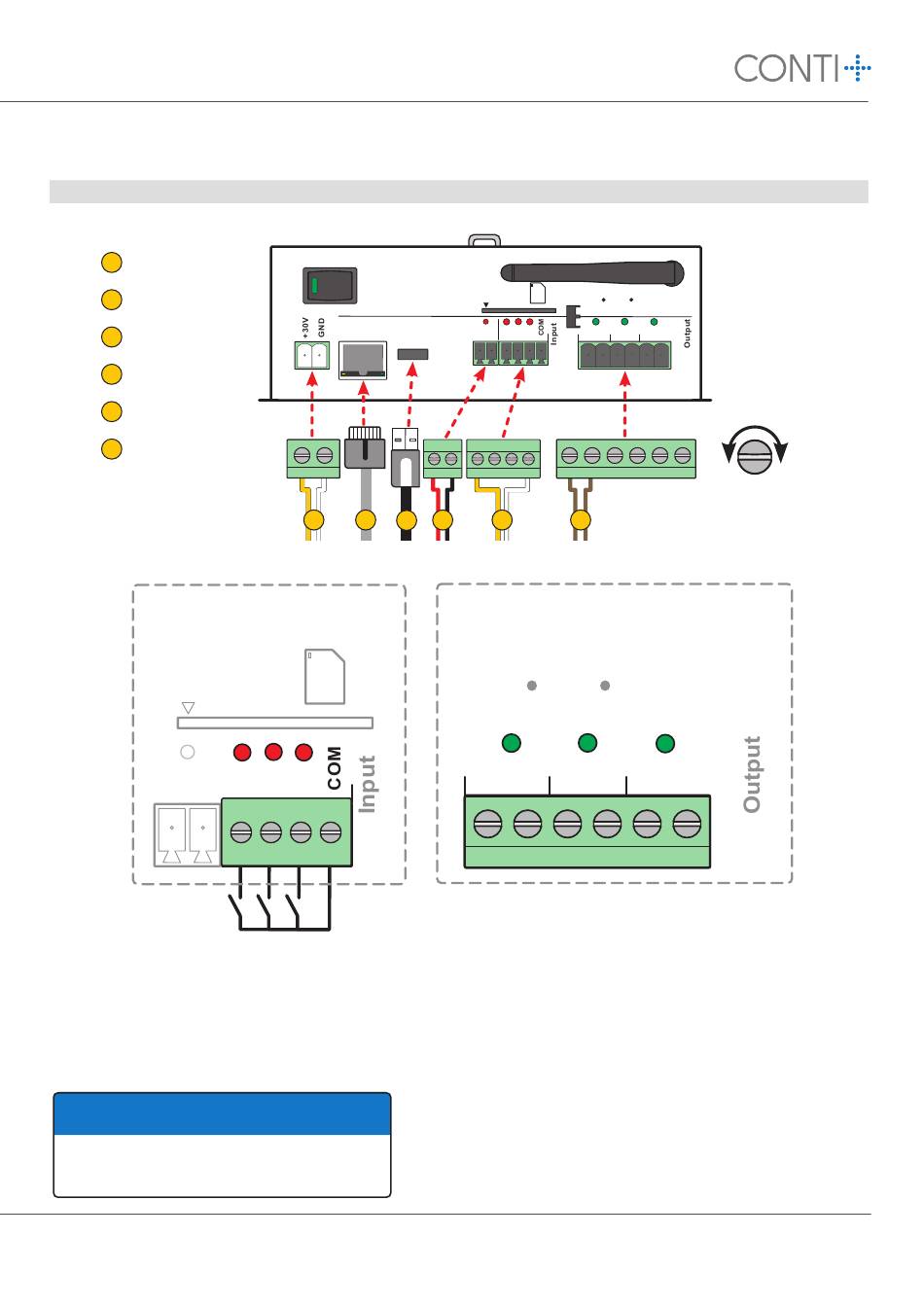

CNX controller with connection terminals
1
Power supply unit 1
2
Ethernet
3
Service Adapter
4
Choke 1
5
Key switch
6
Building management
system
potentialfreie Eingänge
LAN
LAN
SD-Card
CNX
+ –
Potential-free circuit using COM
LED lights up when active
A Thermal flush START
B SYSTEM OPERATION STOP (EMERGENCY OFF)
C ACKNOWLEDGE fault message
Note!
Tip: Operation STOP
Function also terminates thermal flushing.
System is OFF as long as input is switched on.
CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Deutschland | Tel. +49 641 98221 0 | Fax +49 641 98221 50 | info@conti.plus
www.conti.plus | Druckfehler und Irrtümer sowie technische und maßliche Änderungen vorbehalten. | Errors and technical changes remain reserved.
Power
Ethernet
USB
1
2
3
2
A B C
SD-Card
CNX
A B C
1
+ –
4
5
6
potentialfree
max. 250V/10A
externe Relaisausgänge
max. 250V / 10A
5
3
AP
1
2
Relay switched outputs external indication
of faults and critical operations
LED lights up, when active
1 Fault message
2 Thermal flush (TF) successfull
3 Thermal flush (TF) active
Message duration
1 is applied up to the circuit input C
2 is applied for 3 seconds
3 is applied while TF is active
Ant 1
AP
Reset
2
3
6
Reset
3
