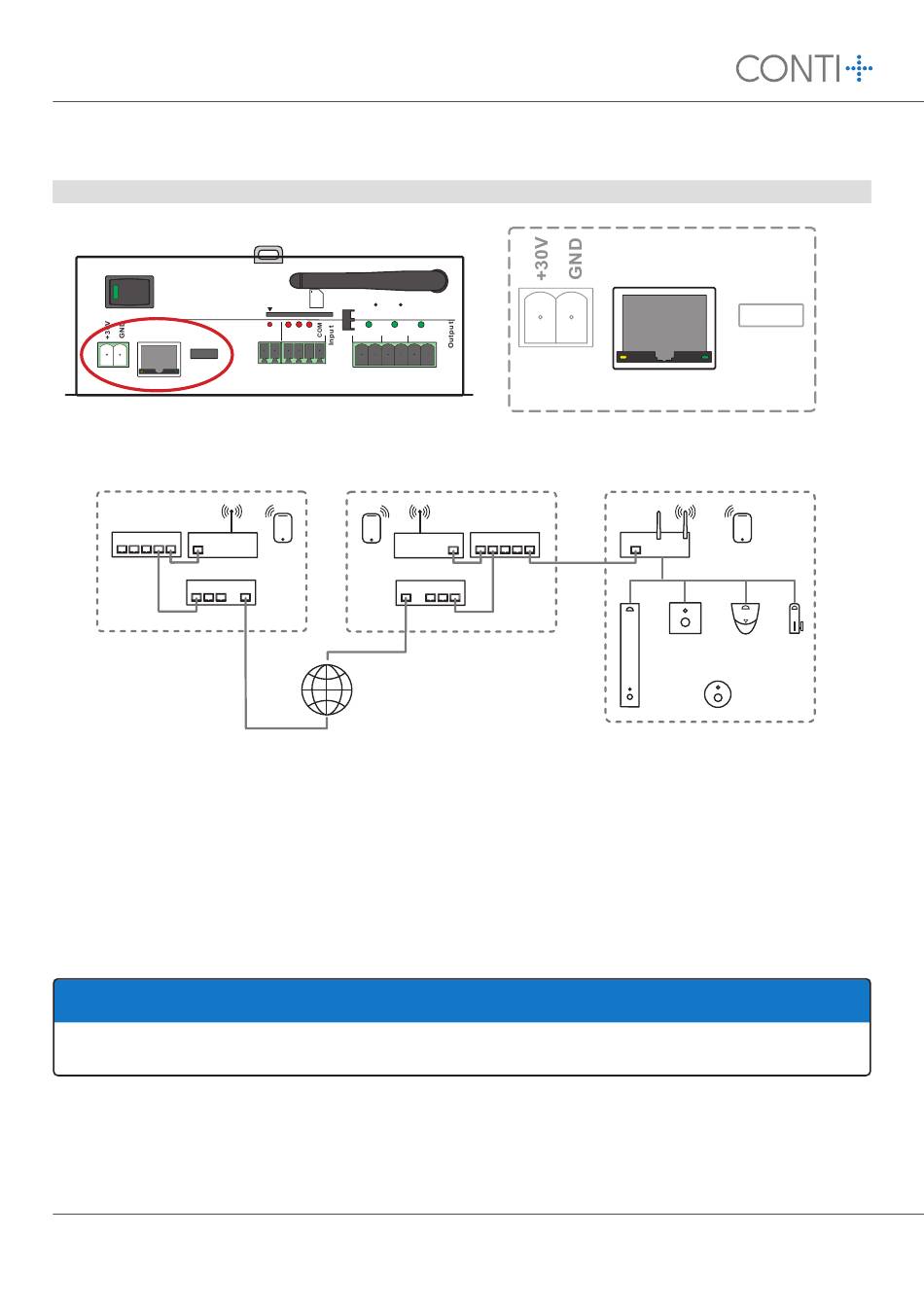

CNX Controller
Connection to LAN
Power
Ethernet
USB
LAN 2
Power
Ethernet
USB
Connecting to LAN
1. Connect CNX controller to LAN with RJ45 cable
2. if no DHCP available, enter IP address manually
3. Obtain correct IP address via the system administrator on site
4. information required:
IP adress: xxx.xxx.xxx.xxx
Subnet: 255.255.255.xxx (standard)
Gateway: xxx.xxx.xxx.xxx
Note!
Tip: Ethernet connection
We recommend connecting the control cabinet to the local network so that current updates can be dow-
nloaded automatically.
CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Deutschland | Tel. +49 641 98221 0 | Fax +49 641 98221 50 | info@conti.plus
www.conti.plus | Druckfehler und Irrtümer sowie technische und maßliche Änderungen vorbehalten. | Errors and technical changes remain reserved.
Ant 1
SD-Card
AP
Reset
CNX
A B C
1
2
3
+ –
LAN 1
WLAN
Ant 1
SD-Card
AP
Reset
CNX
A B C
1
2
3
+ –
Ethernet
Netzwerkkabel RJ45
CNX
USB
